AFCO 20194-11D Detented Lightweight Weight Jack System-11 In Bolt Only
AFCO 20194-11D Detented Lightweight Weight Jack System-11 In Bolt Only

AFCO 20194-11D Detented Lightweight Weight Jack System-11 In Bolt Only

1"-8 Thread Pitch

1 Review | 1 Answered Question
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
AFCO 20194-11D Detented Lightweight Weight Jack System-11 In Bolt Only
AFCO 20194-11D Detented Lightweight Weight Jack System-11 In Bolt Only
AFCO 20194-11D Detented Lightweight Weight Jack System-11 In Bolt Only
AFCO 20194-11D Detented Lightweight Weight Jack System-11 In Bolt Only
AFCO 20194-11D Detented Lightweight Weight Jack System-11 In Bolt Only
X
AFCO 20194-11D Detented Lightweight Weight Jack System-11 In Bolt Only
AFCO 20194-11D Detented Lightweight Weight Jack System-11 In Bolt Only
AFCO 20194-11D Detented Lightweight Weight Jack System-11 In Bolt Only
Zoomed In Image
Part # 1062019411D
$19.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

MFG. Part #:
20194-11D
Thread Pitch:
1"-8

Info

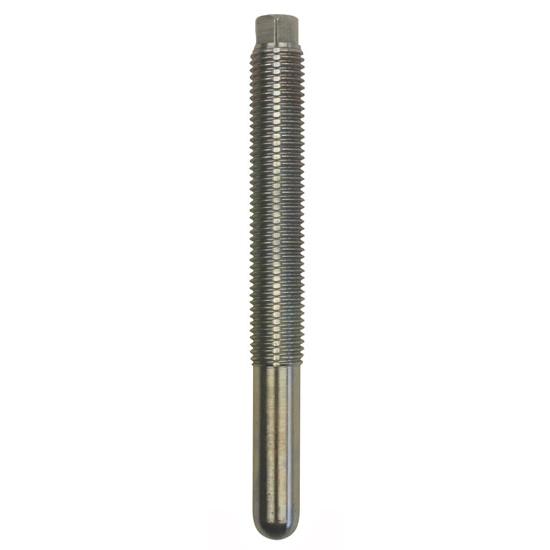

AFCO's Detented Weight Jack System eliminates the need for a jam nut, which allows for fast wedge adjustments on a pit stop or during chassis setup. The stainless steel ball and spring lock the plate from turning under race conditions to prevent unwanted chassis changes on the track. The special ball-ended jack bolt and its accomodating cupped spring plate seat help eliminate spring-to-jack bolt misalignment and spring binding during normal suspension travel.

  • 1" coarse thread x 11" jack bolt
  • Bolt weighs only 2 lbs
  • Detent system eliminates the need for a jam nut saving even more weight
  • Ideal for cars that have little or no room around the weight jack bolt
  • Integral pivot for improved spring alignment during suspension travel

NOTE: Jack bolt and frame plate must be used together in order for detent system to be functional.
