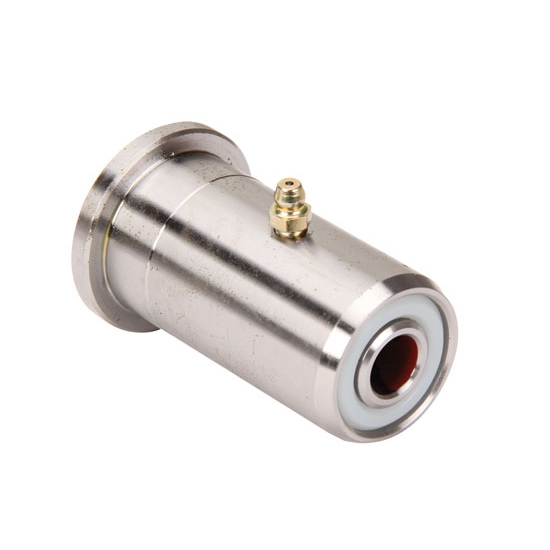

AFCO 20069LW Lightweight Steel Lower A-Arm Bushing, 1.4 ODx.5 IDx2.94
AFCO 20069LW Lightweight Steel Lower A-Arm Bushing, 1.4 ODx.5 IDx2.94
Nylon Bushing Material, 3.00" Overall Length, 1.422" Diameter Small End, .51" Inside Diameter
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
AFCO 20069LW Lightweight Steel Lower A-Arm Bushing, 1.4 ODx.5 IDx2.94
X
Part # 10620069LW
$49.99
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- It minimizes alignment change during cornering since they do not deflect
- Designed to dramatically frees up front suspension
- The dimensions allow direct replacement of the standard bushing
- Inner sleeve allows bolt to be tightened without crushing or binding
- Kit includes a grease zerk fitting for lubrication
Details
Bushing Material:
Nylon
Overall Length:
3.00"
Diameter Small End:
1.422"
Diameter Big End:
1.455"
Inside Diameter:
.51"
Outside Diameter:
1.45"
Flange Diameter:
1.83"
Material Type:
Steel
Finish:
Natural
MFG. Part #:
20069LW
Sold in Quantity:
Each
Info
- Minimizes alignment change during cornering since they do not deflect
- Dramatically frees up front suspension
- Dimensions allow direct replacment of the standard bushing
- Inner sleeve allows bolt to be tightened without crushing or binding
- Includes a grease zerk fitting for lubrication

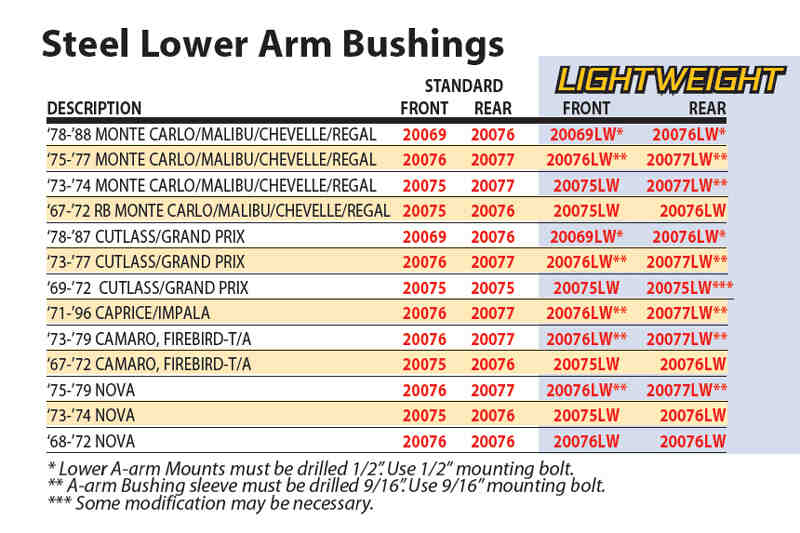

Lower A-Arm Bushing Application Chart (GIF)
Item Details
1.450 x .500Important Messages
