#10616936S

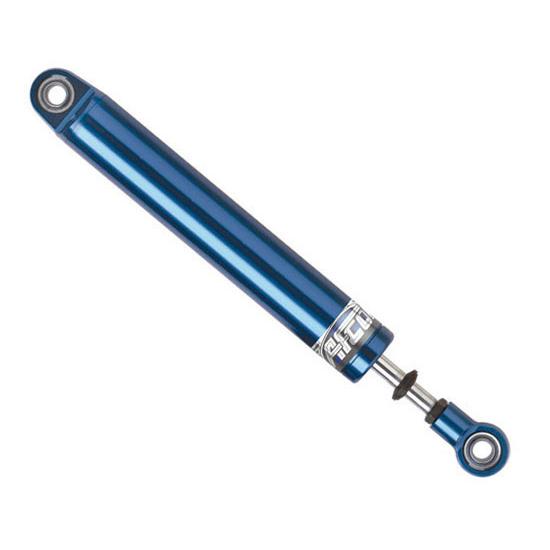

AFCO 1693-6S Aluminum Smooth Small Body Rear Shock, Comp/Reb: 3/6
$224.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before June 12th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Micro Sprint, Midget, Mini Sprint, Sprint Car, Anodized
See more details
Key Specs
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Aluminum |
| Shock Body Type | Smooth |
| Shock Body Size | Small Body |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 1693-6S Details
AFCO 1693-6S Details
Precise, consistent and dependable control is what makes the AFCO R-Series Shocks winners. These shocks have maintained their ability to provide the highest levels of performance from a fixed valve twin-tube shock by evolutionary improvements in production methods and component design. Today, AFCO R-Series Rebuildable shocks are better than ever and are set to provide you with the "just right" set-up you need to win.All AFCO R-Series Shocks are 100% dyno tested, rebuildable, and revalvable.
- Compressed Length: 14.75"
- Extended Length: 23.75"
- Twin-tube design for traction in the slickest of track conditions
- Shim stack technology in a lightweight small body design
- Smooth body for non-coilover applications
- Rebuildable & revalveable
- AFCO Rough Track Valving
- Part # 106-1695SRT features specially designed valving to control the chassis during "rough track" conditions without compromising the handling during "normal" racing conditions.
Application
Small Body Popular Applications:
- Sprints (wing & non-wing)
- Open Wheel
Small body shocks are 20% lighter than big body shocks.
Sprint Car Non-Wing - Dirt
- Recommended Twin Tube Shocks - Small Body Smooth
- Left Rear
- Slick Track Condition
- Left Rear
Charts
Guides & Documents
AFCO 1693-6S Specifications
AFCO 1693-6S Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1693-6S |
| Brand | AFCO |
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Aluminum |
| Shock Body Type | Smooth |
| Shock Body Size | Small Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Position | Rear |
| Compression Valving | 3 |
| Rebound Valving | 6 |
| Upper Shock Mount | Spherical Rod End |
| Lower Shock Mount | Spherical Rod End |
| Extended Length Range | 23.00" to 23.99" |
| Extended Length | 23.69" |
| Compressed Length Range | 14.00" to 14.99" |
| Compressed Length | 14.59" |
| Finish | Anodized |
| GENERAL | |
| Speedway Motors Catalog Part # | 106-16936S |
| Shock Stroke | 9.00 |
| Rebuildable | Yes |
| Sold in Quantity | Each |
