#10616624S
AFCO 1662-4S 16 Series Sm. Smooth Twin Tube Shock 6" Comp 2/Reb 4
$224.99
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Aluminum |
| Shock Body Type | Smooth |
| Shock Body Size | Small Body |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 1662-4S Details
AFCO 1662-4S Details
Precise, consistent and dependable control is what makes the AFCO R-Series Shocks winners. These shocks have maintained their ability to provide the highest levels of performance from a fixed valve twin-tube shock by evolutionary improvements in production methods and component design. Today, AFCO R-Series Rebuildable shocks are better than ever and are set to provide you with the "just right" set-up you need to win.All AFCO R-Series Shocks are 100% dyno tested, rebuildable, and revalvable. AFCO Shocks are built to the highest standards in the industry. In-house manufacturing means that they have total control over production tolerances and quality. Their production system ensures that when you buy an AFCO shock, you have bought the best!
Extended Length: 17.75"
Comp./Rebound: 2/4
- 1.68" O.D.
- Smooth Body
Item Details
Compressed Length: 11.75"Extended Length: 17.75"
Comp./Rebound: 2/4
Application
Small Body Popular Applications:
- Sprints
- Open Wheel
Small body shocks are 20% lighter than big body shocks.
- Micro Sprint Non-Wing - Dirt
- Recommended Twin Tube Shocks - Small Body Non-Adjustable Smooth
- Left Front
- Rough Track Condition
- Left Rear
- Base Track Condition
- Left Front
- Recommended Twin Tube Shocks - Small Body Non-Adjustable Smooth

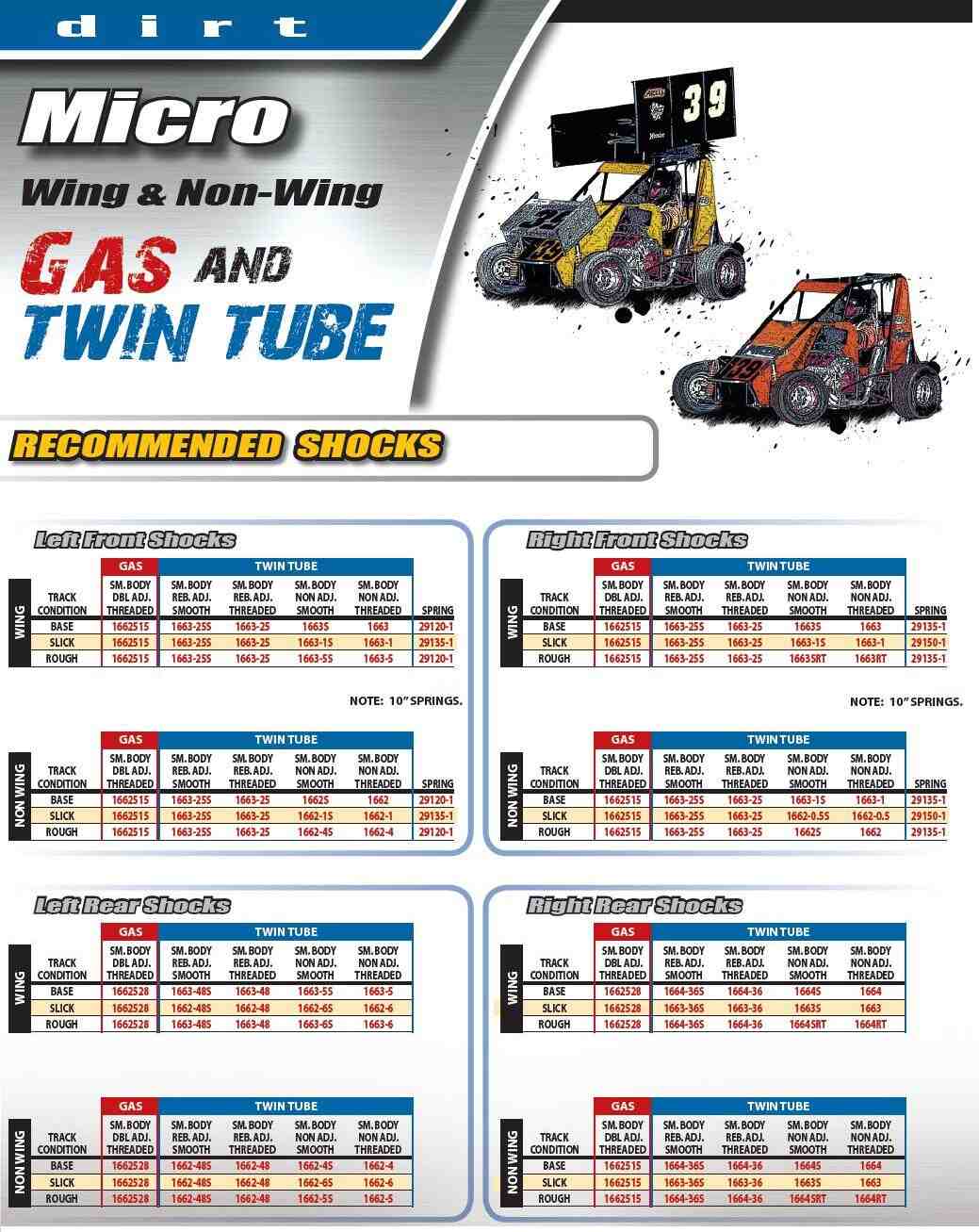

Charts
Guides & Documents
Warranty Information
Click for details
Warranty Information
Click for details
Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.
AFCO 1662-4S Specifications
AFCO 1662-4S Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1662-4S |
| Brand | AFCO |
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Aluminum |
| Shock Body Type | Smooth |
| Shock Body Size | Small Body |
| Shock Stroke Range | 6.00" to 6.99" |
| Compression Valving | 2 |
| Rebound Valving | 4 |
| Upper Shock Mount | Spherical Rod End |
| Lower Shock Mount | Spherical Rod End |
| Extended Length Range | 17.00" to 17.99" |
| Extended Length | 17.5" |
| Compressed Length Range | 11.00" to 11.99" |
| Compressed Length | 11.5" |
| Finish | Anodized |
| GENERAL | |
| Shock Stroke | 6.00 |
| Rebuildable | Yes |
| Sold in Quantity | Each |
