#1061662

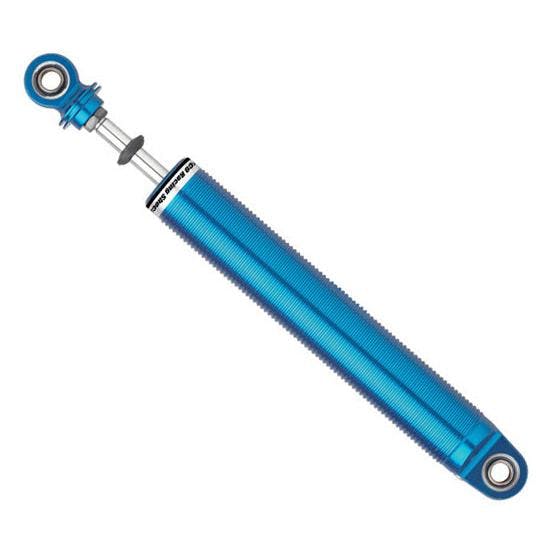

AFCO 1662 16 Series Sm. Threaded Twin Tube Shock-6"-Comp 2/Reb 2
$224.99
each
In Stock
Order soon, only 3 left in stock!
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Micro Sprint, Midget, Mini Sprint, Sprint Car, Anodized
See more details
Key Specs
Shock Type | Twin Tube |
Shock Adjustability | Non-Adjustable |
Shock Body Material | Aluminum |
Shock Body Type | Threaded |
Shock Body Size | Small Body |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 1662- Details
AFCO 1662- Details
Precise, consistent and dependable control is what makes the AFCO R-Series Shocks winners. These shocks have maintained their ability to provide the highest levels of performance from a fixed valve twin-tube shock by evolutionary improvements in production methods and component design. Today, AFCO R-Series Rebuildable shocks are better than ever and are set to provide you with the "just right" set-up you need to win.All AFCO R-Series Shocks are 100% dyno tested, rebuildable, and revalvable. AFCO Shocks are built to the highest standards in the industry. In-house manufacturing means that they have total control over production tolerances and quality. Their production system ensures that when you buy an AFCO shock, you have bought the best!
Extended Length: 17.75"
Comp./Rebound: 2/2
- Compressed Length: 11.75"
- Extended Length: 17.75"
- Threaded Body
Item Details
Compressed Length: 11.75"Extended Length: 17.75"
Comp./Rebound: 2/2
Application

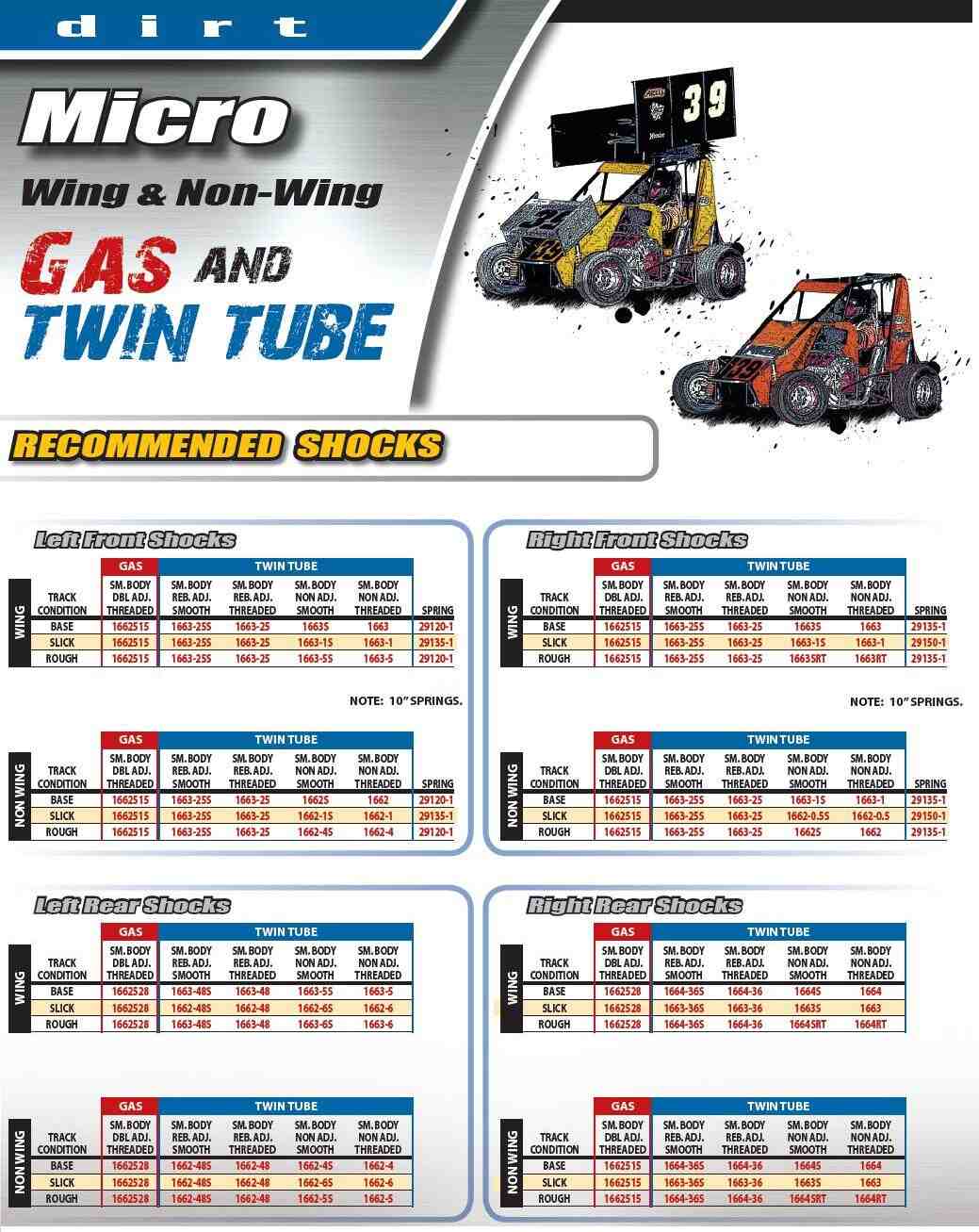

Small Body Popular Applications:
- Sprints
- Open Wheel
Small body shocks are 20% lighter than big body shocks.
- Micro Sprint Non-Wing - Dirt
- Recommended Twin Tube Shocks - Small Body Non-Adjustable Threaded
- Left Front
- Base Track Condition
- Right Front
- Rough Track Condition
- Left Front
- Recommended Twin Tube Shocks - Small Body Non-Adjustable Threaded
Charts
Guides & Documents
AFCO 1662- Specifications
AFCO 1662- Specifications
KEY SPECS | |
---|---|
MFG. Part # | 1662- |
Brand | AFCO |
Shock Type | Twin Tube |
Shock Adjustability | Non-Adjustable |
Shock Body Material | Aluminum |
Shock Body Type | Threaded |
Shock Body Size | Small Body |
Shock Stroke Range | 6.00" to 6.99" |
Compression Valving | 2 |
Rebound Valving | 2 |
Extended Length Range | 17.00" to 17.99" |
Extended Length | 17.5" |
Compressed Length Range | 11.00" to 11.99" |
Compressed Length | 11.5" |
Finish | Anodized |
GENERAL | |
Shock Stroke | 6.00 |
Upper Shock Mount | Spherical Rod End |
Lower Shock Mount | Spherical Rod End |
Coil-Over Compatible | Yes |
Rebuildable | Yes |
Sold in Quantity | Each |
