#10616736

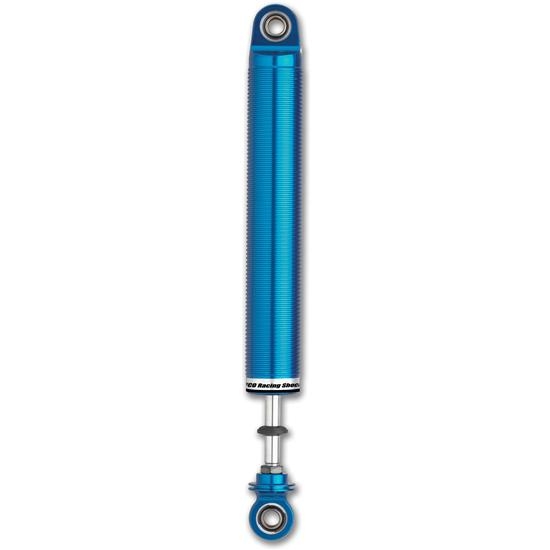

AFCO 16 Series Sm. Threaded Twin Tube Alum 7" Shock, Comp/Reb-3/6
$224.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before June 8th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Micro Sprint, Midget, Twin Tube Shock Type, Anodized
See more details
Key Specs
Shock Type | Twin Tube |
Shock Adjustability | Non-Adjustable |
Shock Body Material | Aluminum |
Shock Body Type | Threaded |
Shock Body Size | Small Body |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 1673-6 Details
AFCO 1673-6 Details
Precise, consistent and dependable control is what makes the AFCO R-Series Shocks winners. These shocks have maintained their ability to provide the highest levels of performance from a fixed valve twin-tube shock by evolutionary improvements in production methods and component design. Today, AFCO R-Series Rebuildable shocks are better than ever and are set to provide you with the "just right" set-up you need to win.
All AFCO R-Series Shocks are 100% dyno tested, rebuildable, and revalvable. AFCO Shocks are built to the highest standards in the industry. In-house manufacturing means that they have total control over production tolerances and quality. Their production system ensures that when you buy an AFCO shock, you have bought the best!
- Compressed Length: 12.59"
- Extended Length: 19.69"
- Threaded Body
Item Details
Compressed Length: 12.59"Extended Length: 19.69"
Comp./Rebound: 3/6
Application
Small Body Popular Applications:
- Sprints
- Open Wheel
Small body shocks are 20% lighter than big body shocks.
- Mini-Sprint Wing - Dirt
- Recommended Twin Tube Shocks - Small Body Non-Adjustable Threaded
- Left Rear
- Slick, Rough Track Condition
- Left Rear
- Recommended Twin Tube Shocks - Small Body Non-Adjustable Threaded
Charts
Guides & Documents
AFCO 1673-6 Specifications
AFCO 1673-6 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 1673-6 |
Brand | AFCO |
Shock Type | Twin Tube |
Shock Adjustability | Non-Adjustable |
Shock Body Material | Aluminum |
Shock Body Type | Threaded |
Shock Body Size | Small Body |
Shock Stroke Range | 7.00" to 7.99" |
Compression Valving | 3 |
Rebound Valving | 6 |
Upper Shock Mount | Spherical Rod End |
Lower Shock Mount | Spherical Rod End |
Extended Length Range | 19.00" to 19.99" |
Extended Length | 19.5" |
Compressed Length Range | 12.00" to 12.99" |
Compressed Length | 12.5" |
Finish | Anodized |
Coil-Over Compatible | Yes |
GENERAL | |
Speedway Motors Catalog Part # | 106-16736 |
Shock Stroke | 7.00 |
Rebuildable | Yes |
Sold in Quantity | Each |
