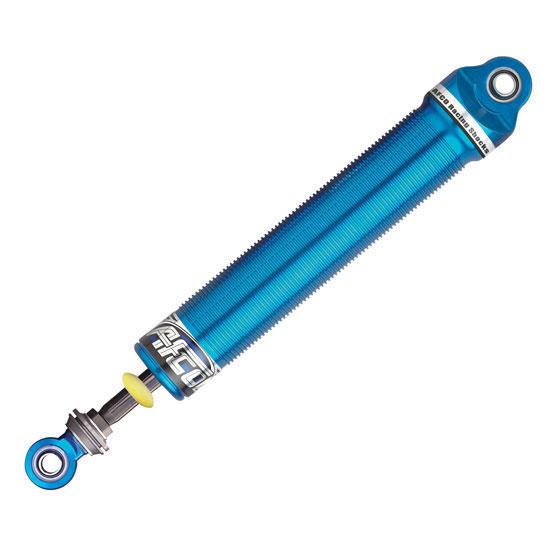

AFCO 1383T 13T Large Body Threaded Twin-Tube Shock-8"-Comp3/Reb3
AFCO 1383T 13T Large Body Threaded Twin-Tube Shock-8"-Comp3/Reb3
Dirt Late Model, Micro Sprint, Midget, Mini Sprint, Pavement Late Model, Sprint Car, Anodized
Factory Shipped
Ships FREE
Select Vehicle
AFCO 1383T 13T Large Body Threaded Twin-Tube Shock-8"-Comp3/Reb3
We estimate this item will ship on or before September 24th.
Part # 1061383T
$189.99
$191.99
each
Add to Cart
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Important Messages:
- This item ships directly from the manufacturer. It may take an additional 1 business days for AFCO to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Details
Shock Type:
Twin Tube
Shock Adjustability:
Non-Adjustable
Shock Body Material:
Aluminum
Shock Body Size:
Large Body
Shock Body Type:
Threaded
Shock Stroke Range:
8.00" to 8.99"
Shock Stroke:
8.00
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length:
22.25"
Compressed Length:
14.32"
Extended Length Range:
22.00" to 22.99"
Compressed Length Range:
14.00" to 14.99"
Compression Valving:
3
Rebound Valving:
3
Schrader Valve:
No
Finish:
Anodized
Coil-Over Compatible:
Yes
Body Diameter:
2.17"
Valve Positions:
3 compression - 3 rebound
Bushing Material:
Steel
Rebuildable:
Yes
MFG. Part #:
1383T
Sold in Quantity:
Each
Thread Length:
8.59"
Shock Eyelet Width:
0.625"
Bolt Hole Circle:
.500"
Hardware Included:
No
Info
Precise, consistent and dependable control is what makes the AFCO R-Series shocks winners. These shocks have maintained their ability to provide the highest levels of performance from a fixed valve twin-tube shock by evolutionary improvements in production methods and component design. Their production system ensures that when you buy an AFCO shock, you have bought the best! Today, AFCO R-Series rebuildable shocks are better than ever and are set to provide you with the "just right" set-up you need to win.
- Built to the highest standards in the industry
- In-house manufacturing means total control over production tolerances and quality
- Shim stack technology gives excellent consistency and repeatablility
- Twin tube design for best performance on slick, smooth tracks
- Threaded aluminum body
- 100% dyno tested, rebuildable, and revalvable
Item Details
Compressed Length: 14.32"Extended Length: 22.25"Comp./Rebound: 3/3
