#10612762FB

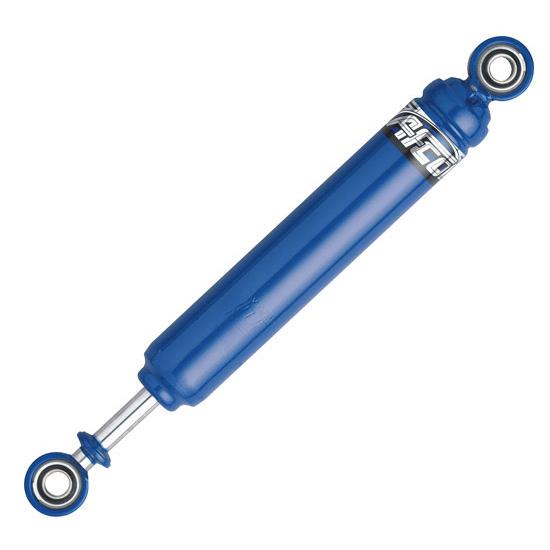

AFCO 1276-2FB Large Twin-Tube Fixed Bearing Shock 7 Inch, Comp 6/Reb 2
$85.99
each
In Stock
$149.99
Save $64.00
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Modified, Stock Car, Twin Tube Shock Type, Painted
See more details
Key Specs
Shock Type | Twin Tube |
Shock Adjustability | Non-Adjustable |
Shock Body Material | Steel |
Shock Body Type | Smooth |
Shock Body Size | Large Body |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 12762FB Details
AFCO 12762FB Details
AFCO S-Series Fixed Bearing Shocks offer tremendous value by packaging race-proven design, proven value combinations, and durability in an economical, fixed bearing, non-coilover design. AFCO 12 Series fixed bearing shocks feature quality bearing ends that allow for free movement in applications where other mounts could be bound and reduce shock effectiveness.
The available standard valves, as well as split valves, allow for multiple tuning options with a simple shock swap.
- 2.02" O.D. sealed body
- Twin-tube design
- Designed for non-coilover cars
- Can be mounted upside-down for reduced unsprung weight
- Strong 5/8" shaft to prevent flexing
Item Details
Compressed Length: 12.75"Extended Length: 19.50"
Comp. / Rebound: 6/2
Specs
AFCO 12762FB Specifications
AFCO 12762FB Specifications
KEY SPECS | |
---|---|
MFG. Part # | 12762FB |
Brand | AFCO |
Shock Type | Twin Tube |
Shock Adjustability | Non-Adjustable |
Shock Body Material | Steel |
Shock Body Type | Smooth |
Shock Body Size | Large Body |
Shock Stroke Range | 7.00" to 7.99" |
Compression Valving | 6 |
Rebound Valving | 2 |
Upper Shock Mount | 1/2" Spherical Rod End |
Lower Shock Mount | 1/2" Spherical Rod End |
Extended Length Range | 19.00" to 19.99" |
Extended Length | 19.5" |
Compressed Length Range | 12.00" to 12.99" |
Compressed Length | 12.75" |
Finish | Painted |
Coil-Over Compatible | No |
GENERAL | |
Shock Stroke | 7.00 |
Body Diameter | 2.02" |
Valve Positions | 6 compression - 2 rebound |
Rebuildable | No |
Sold in Quantity | Each |
Notes | Strong 5/8" shaft to prevent flexing |
Shock Eyelet Width | 0.625" |
Bolt Hole Circle | .500" |
Hardware Included | No |
Color | Blue |
