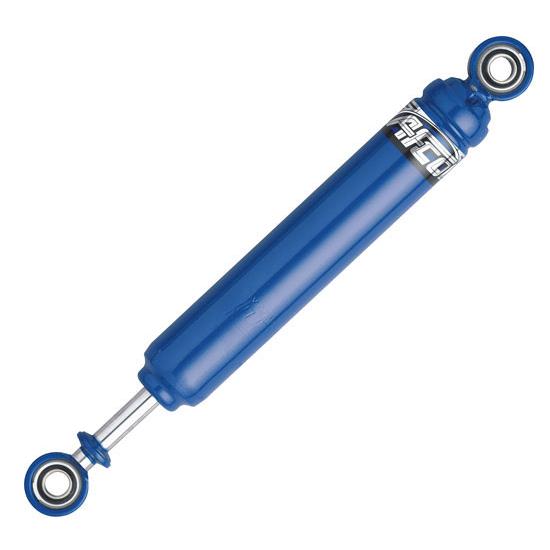

AFCO 1274FB Large Twin-Tube Fixed Bearing Shock, 7 Inch, Comp 4/Reb 4
AFCO 1274FB Large Twin-Tube Fixed Bearing Shock, 7 Inch, Comp 4/Reb 4
Modified, Stock Car, Twin Tube Shock Type, Non-Adjustable Shock Adjustability, Painted
In Stock
Can Ship FREE
Select Vehicle
AFCO 1274FB Large Twin-Tube Fixed Bearing Shock, 7 Inch, Comp 4/Reb 4
Part # 1061274FB
Save 27%
$79.99
$109.99
each
Add to Cart
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Important Messages:
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Details
Shock Type:
Twin Tube
Shock Adjustability:
Non-Adjustable
Shock Body Material:
Steel
Shock Body Size:
Large Body
Shock Body Type:
Smooth
Shock Stroke Range:
7.00" to 7.99"
Shock Stroke:
7.00
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length:
19.5"
Compressed Length:
12.75"
Extended Length Range:
19.00" to 19.99"
Compressed Length Range:
12.00" to 12.99"
Compression Valving:
4
Rebound Valving:
4
Finish:
Painted
Coil-Over Compatible:
No
Body Diameter:
2.02"
Valve Positions:
4 compression - 4 rebound
Rebuildable:
No
MFG. Part #:
1274FB
Sold in Quantity:
Each
Notes:
Strong 5/8" shaft to prevent flexing
Shock Eyelet Width:
0.625"
Bolt Hole Circle:
.500"
Hardware Included:
No
Color:
Blue
Info
AFCO S-Series Fixed Bearing Shocks offer tremendous value by packaging race-proven design, proven value combinations, and durability in an economical, fixed bearing, non-coilover design. AFCO 12 Series fixed bearing shocks feature quality bearing ends that allow for free movement in applications where other mounts could be bound and reduce shock effectiveness.
The available standard valves, as well as split valves, allow for multiple tuning options with a simple shock swap.
- 2.02" O.D. sealed body
- Twin-tube design
- Designed for non-coilover cars
- Can be mounted upside-down for reduced unsprung weight
- Strong 5/8" shaft to prevent flexing
Item Details
Compressed Length: 12.75"Extended Length: 19.50"
Comp. / Rebound: 4/4
Some parts are not legal for use in California or other states with similar laws/regulations
