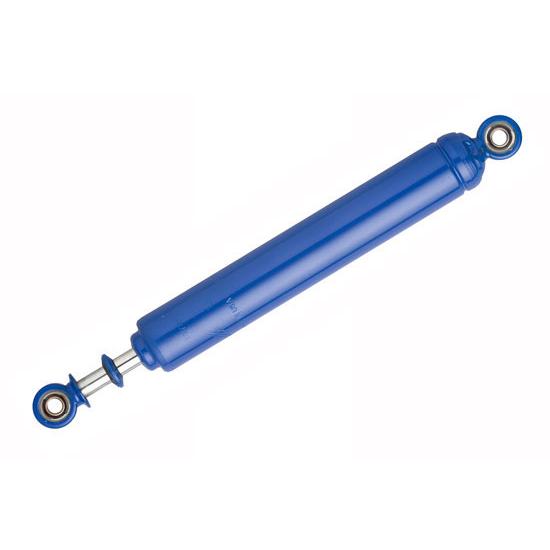

AFCO 1094 10 Series Steel Big Twin Tube Shock-9 In Stroke-Comp 4/Reb 4
AFCO 1094 10 Series Steel Big Twin Tube Shock-9 In Stroke-Comp 4/Reb 4

AFCO 1094 10 Series Steel Big Twin Tube Shock-9 In Stroke-Comp 4/Reb 4

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
AFCO 1094 10 Series Steel Big Twin Tube Shock-9 In Stroke-Comp 4/Reb 4
AFCO 1094 10 Series Steel Big Twin Tube Shock-9 In Stroke-Comp 4/Reb 4
Zoomed In Image
Part # 1061094
$109.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

MFG. Part #:
1094
Shock Type:
Twin Tube
Coil-Over Compatible:
Yes
Shock Body Material:
Steel
Shock Body Size:
Large Body
Shock Body Type:
Smooth
Shock Stroke:
9
Upper Shock Mount:
1/2 Inch Eyelet
Lower Shock Mount:
1/2 Inch Eyelet
Extended Length:
23.50"
Compressed Length:
14.75"
Body Diameter:
2.03"
Finish:
Powder Coated
Sold in Quantity:
Each
Shock Eyelet Width:
.625"
Bolt Hole Circle:
.500"
Hardware Included:
No
Material Type:
Steel

Info

AFCO S-Series Steel Sealed Body Twin-Tube Shocks offer performance, durability and value.  With the identical internal components as the aluminum shocks, these shocks deliver the AFCO performance advantage lap after lap.                                                                        AFCO S-Series Steel Body shocks can be mounted in any position without affecting performance.  This allows you to mount the shocks "up-side-down" to save unsprung weight and give your suspension quicker reaction.

AFCO Steel Body Coilover shocks use an integral groove and available snap ring (not included) to provide easy installation of coilover hardware.

  • Welded eye ring for superior strength
  • Replaceable bearing for long life
  • 5/8" shaft prevents flexing
  • A wide selection of split valves and standard valves are available to fit a variety of applications and needs
  • Can be mounted in any position to save unsprung weight
  • Durable gloss powder coat finish for long life
  • Compressed Length: 14.75"
  • Extended Length: 23.50"
  • 2.03" O.D. Body

Item Details

Comp. Length: 14.75"
Extended Length: 23.50"
Comp/Rebound: 4/4

Application

Big Body Popular Applications:

  • Modifieds
  • Limited Late Models
  • Stock Classes

The large body and the full 5/8" shaft provides increased strength and the flexibility of a standard size coil-over spring.

Compression and rebound valving numbers remain the same whether the shock is right-side up or upside down.

Some parts are not legal for use in California or other states with similar laws/regulations
