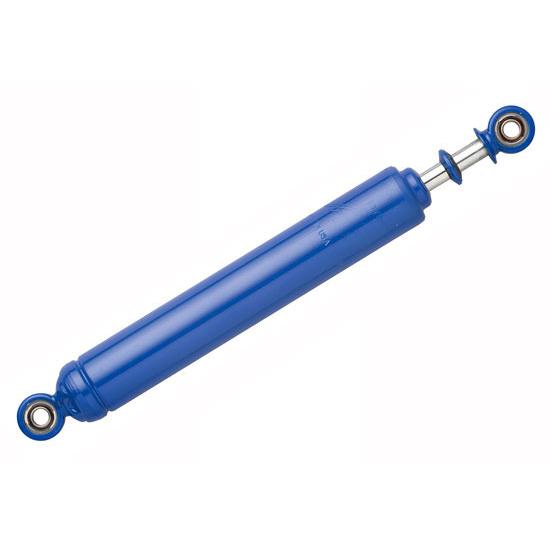

AFCO 1076 10 Series Steel Big Body Twin Tube Shock-7 Inch-Comp 6/Reb 6
AFCO 1076 10 Series Steel Big Body Twin Tube Shock-7 Inch-Comp 6/Reb 6

AFCO 1076 10 Series Steel Big Body Twin Tube Shock-7 Inch-Comp 6/Reb 6

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
AFCO 1076 10 Series Steel Big Body Twin Tube Shock-7 Inch-Comp 6/Reb 6
AFCO 1076 10 Series Steel Big Body Twin Tube Shock-7 Inch-Comp 6/Reb 6
Zoomed In Image
Part # 1061076
Save 26%
$109.99
$149.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Shock Type:
Twin Tube
Shock Body Material:
Steel
Shock Body Size:
Large Body
Shock Body Type:
Smooth
Shock Stroke Range:
7.00" to 7.99"
Shock Stroke:
7.00
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length:
19.5"
Compressed Length:
12.75"
Extended Length Range:
19.00" to 19.99"
Compressed Length Range:
12.00" to 12.99"
Compression Valving:
6
Rebound Valving:
6
Finish:
Powder Coated
Coil-Over Compatible:
Yes
Body Diameter:
2.02"
Valve Positions:
6 compression - 6 rebound
MFG. Part #:
1076
Sold in Quantity:
Each
Shock Eyelet Width:
.625"
Bolt Hole Circle:
.500"
Hardware Included:
No

Info

AFCO 10 Series Steel Sealed Body Twin-Tube Shocks offer performance, durability and value.  With the identical internal components as the aluminum shocks, these shocks deliver the AFCO performance advantage lap after lap.

AFCO 10 Series Steel Body shocks can be mounted in any position without affecting performance.  This allows you to mount the shocks "up-side-down" to save unsprung weight and give your suspension quicker reaction.

AFCO Steel Body Coilover shocks use an integral groove and available snap ring (not included) to provide easy installation of coilover hardware.

Compression and rebound valving numbers remain the same whether the shock is right-side up or upside down.

  • Welded eye ring for superior strength
  • Replaceable bearing for long life
  • 5/8" shaft prevents flexing
  • A wide selection of split valves and standard valves are available to fit a variety of applications and needs
  • Can be mounted in any position to save unsprung weight
  • Durable gloss powder coat finish for long life
  • Compressed Length: 12.75"
  • Extended Length: 19.50"
  • 2.03" O.D. Body

Item Details

Comp. Length: 12.75"
Extended Length: 19.50"
Comp/Rebound: 6/6

Application

Big Body Popular Applications:

  • Modifieds
  • Limited Late Models
  • Stock Classes

The large body and the full 5/8" shaft provides increased strength and the flexibility of a standard size coil-over spring.
