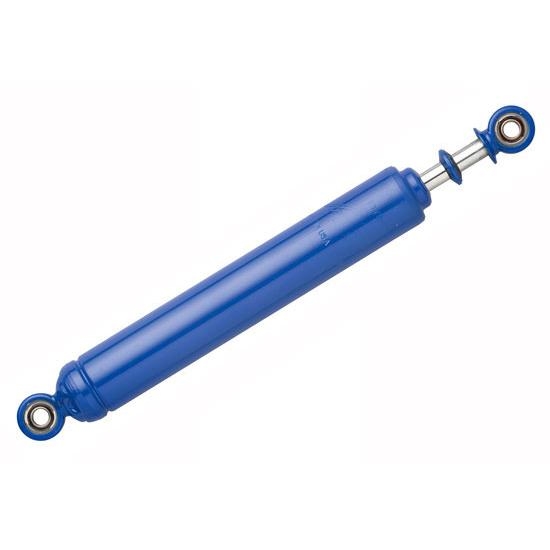

AFCO 1074-10 10 Series Big Body Twin Tube Shock-7 In Comp 4/Reb 10
AFCO 1074-10 10 Series Big Body Twin Tube Shock-7 In Comp 4/Reb 10
Modified, Sport Mod, Stock Car, Twin Tube Shock Type, Steel Shock Body Material, Powder Coated
In Stock
Ships FREE
Select Vehicle
AFCO 1074-10 10 Series Big Body Twin Tube Shock-7 In Comp 4/Reb 10
X
Part # 106107410
$117.99
$149.99
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Important Messages:
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Details
Shock Type:
Twin Tube
Shock Body Material:
Steel
Shock Body Size:
Large Body
Shock Body Type:
Smooth
Shock Stroke Range:
7.00" to 7.99"
Shock Stroke:
7.00
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length:
19.5"
Compressed Length:
12.75"
Extended Length Range:
19.00" to 19.99"
Compressed Length Range:
12.00" to 12.99"
Compression Valving:
4
Rebound Valving:
10
Finish:
Powder Coated
Coil-Over Compatible:
Yes
Body Diameter:
2.02"
Valve Positions:
4 compression - 10 rebound
MFG. Part #:
1074-10
Sold in Quantity:
Each
Shock Eyelet Width:
0.625"
Bushing Length:
0.5"
Hardware Included:
No
Info
AFCO 10 Series Steel Sealed Body Twin-Tube Shocks offer performance, durability and value. With the identical internal components as the aluminum shocks, these shocks deliver the AFCO performance advantage lap after lap.
AFCO 10 Series Steel Body shocks can be mounted in any position without affecting performance. This allows you to mount the shocks "up-side-down" to save unsprung weight and give your suspension quicker reaction.
AFCO Steel Body Coilover shocks use an integral groove and available snap ring (not included) to provide easy installation of coilover hardware.
Compression and rebound valving numbers remain the same whether the shock is right-side up or upside down.
- Welded eye ring for superior strength
- Replaceable bearing for long life
- 5/8" shaft prevents flexing
- A wide selection of split valves and standard valves are available to fit a variety of applications and needs
- Can be mounted in any position to save unsprung weight
- Durable gloss powder coat finish for long life
- Compressed Length: 12.75"
- Extended Length: 19.50"
- Comp/Rebound: 4/10
- 2.03" O.D. Body
Application
Big Body Popular Applications:
- Modifieds
- Limited Late Models
- Stock Classes
The large body and the full 5/8" shaft provides increased strength and the flexibility of a standard size coil-over spring.
Some parts are not legal for use in California or other states with similar laws/regulations
