#10610425

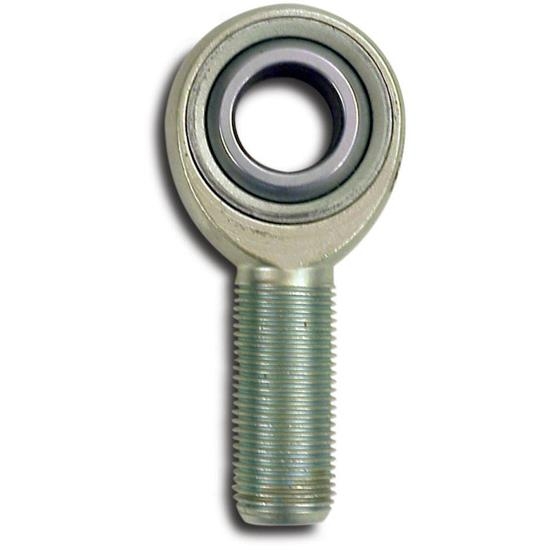

AFCO 10425 Aircraft Quality Heim Rod End, 3/4-16 LH Male
1 Review
|
Ask a Question
$70.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before September 27th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, LH Male Thread Type, Steel, Zinc Plated
See more details
Key Specs
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/4"-16 |
| Material Type | Steel |
| Hole Diameter | 0.75" |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 10425 Details
AFCO 10425 Details
- Designed for high-stress usage
- Ideal for panhard bar or drag components
- Ball - 52100 steel, hard chrome plated
- Race - Heat treated steel alloy, zinc plated
- Body - Heat treated steel alloy, zinc plated
- Radial Load - 28,000 lbs.
AFCO 10425 Specifications
AFCO 10425 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 10425 |
| Brand | AFCO |
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/4"-16 |
| Material Type | Steel |
| Hole Diameter | 0.75" |
| Rod End Style | Alloy Steel Race |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 0.750" |
| Load Capacity | 28000 lbs. |
| Sold in Quantity | Each |
