#10610422

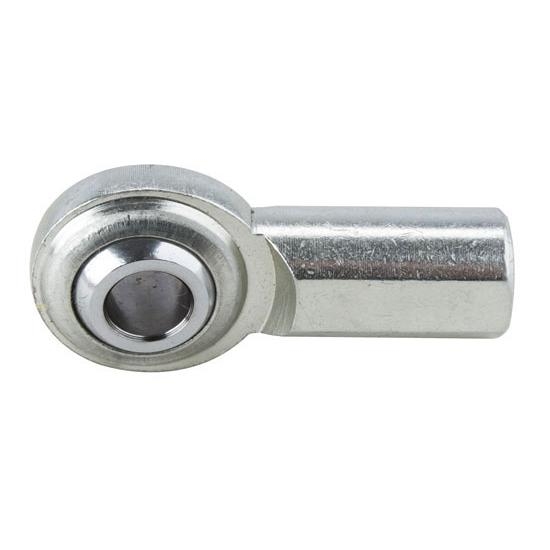

AFCO 10422 Standard Steel Heim Rod End, 3/4-16 RH Female
$26.99
each
On Backorder
This part is Backordered. We currently do not have an estimate when this item will ship.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Female Thread Type, Steel, Natural
See more details
Key Specs
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Eyelet |
| Thread Pitch | 3/4"-16 |
| Material Type | Steel |
| Hole Diameter | 0.750" |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 10422 Details
AFCO 10422 Details
- Excellent for use as a medium-duty suspension rod end
- Ball - Case hardened steel hard chrome plated
- Race - N/A
- Body - Low carbon steel chromate treated
AFCO 10422 Specifications
AFCO 10422 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 10422 |
| Brand | AFCO |
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Eyelet |
| Thread Pitch | 3/4"-16 |
| Material Type | Steel |
| Hole Diameter | 0.750" |
| Rod End Style | Metal-to-metal |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Chromate Treated |
| Color | Natural |
| Jam Nut Included | No |
| GENERAL | |
| Speedway Motors Catalog Part # | 106-10422 |
| Thread Length | 0.750" |
| Load Capacity | 16338 lbs. |
| Sold in Quantity | Each |
