Details

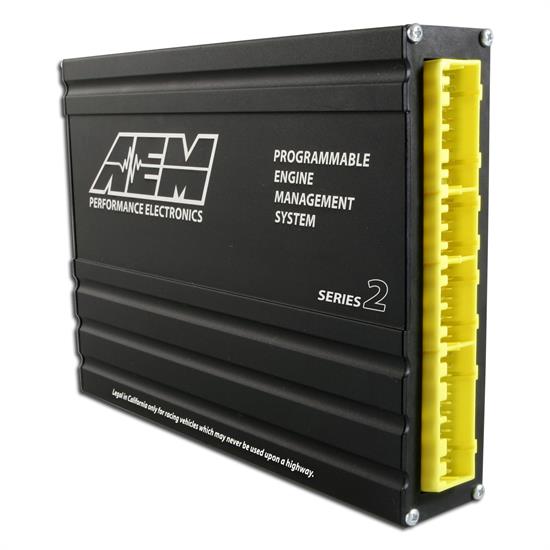

AEM was the first company to offer complete engine control using a race vehicle’s factory wiring harness and sensors. Our Series 2 Plug & Play EMS is a culmination of this original program. It combines robust construction with our proven AEMtuner Software to deliver total engine control.

AEM's Series 2 Plug & Play EMS plugs directly into a vehicle's factory ECU harness and requires no additional wiring or hardware. Windows™ compatible software (XP, Vista, 7) simplifies copying, viewing and data manipulation. AEMtuner software is infinitely adjustable. It allows tuners to program virtually any combination of engine control, power adders, and auxiliary devices, and accurately deliver proper amounts of fuel and correct ignition timing, for any boost level or operating condition.

Fits Manual Trans.

ACURA:

  • 92-95 Integra RS/LS/GS/GS-R

HONDA:

  • 90-95 Accord DX/LX/EX
  • 93-95 Del Sol S/Si
  • 94-95 Del Sol VTEC
  • 92-95 Civic DX/LX/EX/Si
  • 90-91 Prelude Si
  • 92-95 Prelude S/SE/Si/VTEC

Features

  • Plugs directly into the factory harness. No rewiring necessary
  • Uses all the factory sensors
  • Includes start-up calibrations
  • System is fully enabled and unlocked - Never pay for upgrades!
  • Context-sensitive help eases tuning process
  • Maps can be password protected by the tuner to prevent unauthorized usage or sharing
  • Runs on Windows-compatible software
  • Tune using new USB communication port or serial port
  • Works with all AEM gauges
  • Electronic boost control
  • Full idle control
  • Programmable traction control
  • Software definable knock control
  • Two-step launch control
  • User-configurable soft-cut rev limiters
  • Wet or dry nitrous control
  • Electronic boost control
  • Full idle control
  • Programmable traction control
  • Software definable knock control
  • Two-step launch control
  • User-configurable soft-cut rev limiters
  • Wet or dry nitrous control

Specs

  • Up to 12 peak and hold injector drivers
  • Up to 8 direct-fire coil outputs
  • Up to 16 general-purpose outputs
  • Up to 8 definable switch inputs
  • Up to 4 EGT inputs with fuel trim
  • 1MB of internal data logging

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Specifications

KEY SPECS
MFG. Part #30-6040
BrandAEM Electronics
GENERAL
GTIN Code840879020132
Sold in QuantityEach
