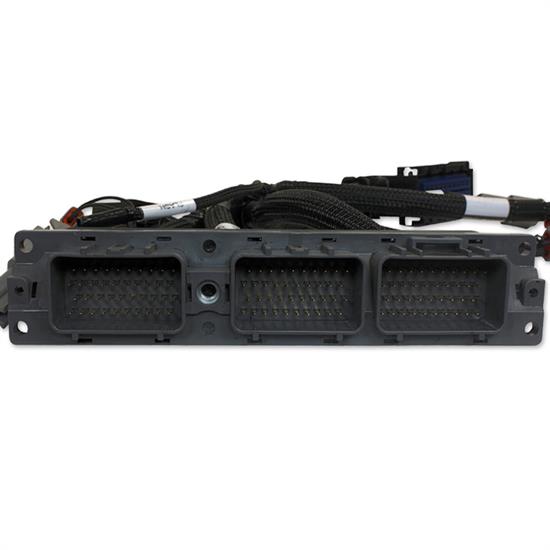

AEM 30-3519 Infinity Plug and Play Jumper Harness
AEM 30-3519 Infinity Plug and Play Jumper Harness

AEM 30-3519 Infinity Plug and Play Jumper Harness

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
AEM 30-3519 Infinity Plug and Play Jumper Harness
AEM 30-3519 Infinity Plug and Play Jumper Harness
AEM 30-3519 Infinity Plug and Play Jumper Harness
AEM 30-3519 Infinity Plug and Play Jumper Harness
X
AEM 30-3519 Infinity Plug and Play Jumper Harness
AEM 30-3519 Infinity Plug and Play Jumper Harness
Zoomed In Image
We estimate this item will ship on or before April 8th.
Part # 186303519
$542.25
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Fuse Block Included:
No
Sold in Quantity:
Each
MFG. Part #:
30-3519
GTIN Code:
840879025236

Info

AEM's Plug & Play Adapter Harness (PN 30-3519) for the manual-transmission-equipped 1993-’98 USDM Toyota Supra 2JZGTE is for use with an Infinity 506 (30-7106) or 508 (PN 30-7108) ECU. When combined with AEM’s Plug & Play Adapter Harness, the Infinity completely replaces the MKIV 2JZGTE Supra’s ECU and can be installed in about 30 minutes when using the factory sensors. A base map for the engine is included and full factory instrument integration is supported.

Complete Stand Alone Engine Control

The Infinity ECU combines with the Plug & Play harness to replace the manual transmission MKIV Toyota Supra turbo's factory ECU and control all of the engine functions. An AEM MAP sensor (sold separately) is required for proper operation of the Infinity ECU on this application.

Plug & Play Harness with Expansion Port

The Plug & Play Adapter harness for the MKIV Toyota Supra turbo adapts to the factory wiring harness and mounts in the factory ECU location.

The Infinity ECU for the Toyota Supra turbo will not control the stock twin sequential turbos and is for manual transmissions only.

Features

Toyota Supra Plug & Play Harness with Expansion Port

Once you have determined which Infinity ECU will best support your MKIV Toyota Supra Turbo M/T, you will need to purchase the Supra Plug & Play adapter harness (PN 30-3519). AEM’s engineers have designed the Infinity ECU and harness to fit in the Supra Turbo’s factory ECU location to maintain overall weather resistance of the electronics and deliver a clean look in the engine compartment.

The Plug & Play Adapter harness for the MKIV Toyota Supra turbo adapts to the factory wiring harness and mounts in the factory ECU location. AEM’s Toyota Supra Infinity Plug & Play adapter harness includes a Wideband O2 connector, AEMnet connector for communication with other AEMnet enabled devices and an auxiliary connector with a Deutsch DTM 12P connector for adding common aftermarket sensors including fuel pressure, air inlet temperature, MAP, oil temperature and ethanol content sensor. The expansion port also includes a sensor ground, 5v reference, 12v power from relay and high side output for activating a relay or solenoid, a low side output for boost control and analog inputs for mode switch and no-lift shift.

200MHz Processor and Real-Time Operating System

Late-model vehicle ECU’s all run on faster processors. The Infinity ECU is built around a latest-generation 32-bit floating point 200MHz automotive processor and Real-Time Operating System (RTOS), which is capable of processing 400 MIPS (millions of instructions per second). By comparison, common competitive systems typically use 20MHz to 50MHz processors. To our knowledge, the Infinity ECU currently has the fastest processing speed of any aftermarket Motorsports ECU available. This allows the Infinity to do more, faster, in a more stable programming environment.

  • The Infinity’s 200MHz processor and RTOS makes the Infinity more responsive, for a better driving experience
  • The Infinity’s 200MHz processor and RTOS allows for more accurate ignition timing, which enables an engine to create more power
  • The Infinity’s faster processor allows it to perform more computational features with no sacrifice in processing performance
  • The Infinity’s RTOS ensures strategic processing with optimized load balancing. This means that tuning one feature will not affect the performance of another feature

  • Airflow model based (VE) tuning
  • ECU Set Up Wizard simplifies startup
  • Flex-fuel compatible
  • Multiple programmable boost control strategies
  • Multiple programmable engine protection strategies
  • Programmable individual cylinder knock control
  • Launch limiter
  • Rolling launch anti-lag
  • On-the-fly map switching
  • Single internal Lambda wideband AFR sensor controller
  • Dual knock sensing circuits
  • Data logging up to 32GB, logging rate up to 1KHz/channel
  • Outputs to 3rd party dashes and data loggers
  • Up to 480Mb/sec data transfer speed
  • Sealed enclosure and IP67 rated comms ports

Notes

AIRFLOW MODEL BASED CALCULATIONS

Infinity’s airflow model-based systems greatly reduce the amount of time it takes to set up and tune an engine by eliminating many of the lookup and trim tables (correction tables) necessary in previous generation ECUs. The Infinity’s airflow based, or volumetric efficiency (VE) based models calculate an engine’s requirements in real-time based on an advanced algorithm that has various modes for calculating air flow. Once the user inputs an engine’s basic parameters (displacement, cylinders, ignition type, and firing order) and methods of calculation for airflow and ignition they can begin setting the engine’s VE table in the software.

InfinityTuner USER INTERFACE SOFTWARE

InfinityTuner is optimized for speed and performance. The software has the power to control a multitude of features found in today’s modern racecars, and features an advanced tuning Wizard to reduce set up time. An ECU Setup Wizard takes complex calibration setup work and simplifies it through a smart interface that features tabs for quick set up of vital engine functions. Each tab includes a description of the function.

InfinityTuner software is highly flexible. It allows you to choose from multiple strategies for boost control, idle control, traction control, charge air temp blend, launch control and more.

All controls in the Infinity ECU are synched to logged data which allows users to edit calibration data during log playback to minimize tuning time. AEMdata, AEM’s advanced data logging analysis software is also included for reviewing data logs.

ULTRA-HIGH RESOLUTION FUEL CONTROL

The Infinity ECU calculates injector pulsewidth in units of 1/10th of a microsecond (0.0000001 seconds). Individual cylinder fuel trim is included and user-adjustable.

ACCURATE IGNITION TIMING UNDER ANY CONDITION

InfinityTuner software features a 3D ignition trim map (coolant and air temp based), and its back-end timing code is tested to 100,000 RPM. Individual cylinder ignition trim is included.

FLEX FUEL COMPENSATION

Flex-fuel compatibility is included, and the Infinity is able to make automatic adjustments for ethanol content in the fuel with the addition of an ethanol content sensor (sold separately).

MULTI-FUEL CAPABLE

The Infinity has the ability to run two separate fuel types simultaneously through staged fuel injection

DRIVE BY WIRE CAPABILITY

The Infinity Series 5 ECU can control one drive by wire throttle body and includes auto calibration for DBW sensors. It includes idle control, an optional drive by wire rev limiter (for use as a launch limiter, holding limiter or in conjunction with other rev limiters) and necessary failsafes based on redundant sensor inputs.

IDLE CONTROL

The Infinity ECU uses a coolant temp based idle control model. It includes an RPM vs. Engine Speed Rate idle decel feature that provides accurate control of the IAC and allows for adjustment of engine braking. The Infinity’s idle TPS offset provides smoother low idle operation when necessary, like driving in the pits or return lane following a pass.

MULTIPLE BOOST CONTROL STRATEGIES

Choose from time, gear, vehicle speed, switch-based or other boost control strategies. The Infinity’s boost control includes two 2D base duty tables and two 2D boost target tables. The second tables can be used as a trim, and users can choose from multiple strategies including IAT, MAP, Baro (kpa), throttle %, flex fuel content, boost target and more. Please visit our Forum for an in-depth review of the Infinity’s boost control capabilities.

NITROUS CONTROL

The Infinity’s software allows you to run a single-stage wet or dry nitrous set up (four-stage available soon). This feature includes nitrous timing delay to account for nitrous bleed out and can be set up for water/methanol injection tuning. Four stage nitrous will be upgraded for free for existing Infinity users when it becomes available.

VARIABLE VALVE CAM CONTROL

Set base duty, limit and VVC cam target for up to four cams through the InfinityTuner Wizard. Users are able to achieve a VVC cam target by setting Cam 1 base timing and base duty cycle % in a 2D table, and the software features a 1D base duty % table that controls the base duty cycle for the VVC output, which is tunable based on the VVC target.

MAP SWITCHING

The Infinity includes up to four separate ignition maps, four separate Lambda maps and two separate VE maps with independent values. Using AEM’s 12 Position Trim Pot, this powerful feature delivers many valuable tuning options including:

  • Multiple maps for multiple track conditions (practice map, rain map, qualifying map, FTW map)
  • Change boost target
  • Change Lambda target
  • Change ignition target
  • Tie boost, Lambda and ignition targets together and change them all
  • Ideal for test mapping during tuning
  • Change boost base duty
  • Control PWM switches (like water/methanol injection)
  • Choose between 2 VE tables for VVC or when restrictors are in place
  • Blend between flex fuel ignition maps
  • Blend by cam position and gear

ENGINE PROTECTION

Multiple engine protection strategies are incorporated into the Infinity ECU. Available strategies include:

  • MAP (create limp mode using Assumed Pressure Ratio table to compensate for pressure if sensor fails)
  • Overboost (boost fuel cut until boost/throttle decreases)
  • Fuel pressure (injector flow compensated for variations in pressure, sensor required)
  • Oil pressure (trigger light or limit RPM if pressure drops below set value, sensor required)
  • RPM (rev limiter)
  • Coolant temperature, Temp vs. RPM (fuel and ignition cut, sensor required)
  • Knock control with feedback
  • Lean protection (fuel and ignition cut)

REAL-TIME ADVANCED DIAGNOSTICS

The Infinity’s diagnostics software can be configured to constantly monitor signal and current quality to alert the user of a potential issue before it creates the potential for engine damage.

INTERNAL WIDEBAND CONTROLLER

A Bosch wideband controller is built into the Infinity ECU. This provides highly accurate closed-loop AFR targeting and enables the sensor diagnostics in the ECU to determine the operational condition of the sensor.

LIGHTNING-FAST DATA LOGGING

Infinity’s logging feature supports 2 different file systems. A custom file system option will support 100 channels at up to 1 KHz using a high-performance USB flash drive (sold separately). A standard FAT file system will support 10 channels at up to 1KHz, 20 channels at up to 500Hz or 100 channels at up to 200Hz. The Infinity includes a 4GB USB memory stick and the user can replace this with up to 64GB. Additionally, the user can also log directly to the PC at up to 500Hz when connected.

AEMdata DATA ANALYSIS SOFTWARE

AEMdataprovides an advanced interface for viewing the log files generated by the Infinity ECU.

DUAL KNOCK SENSING

Dual knock signal conditioning circuits allow for precise measurements of knock levels. The Infinity can utilize both Piezoelectric and Flat Response type knock sensors.

RELIABILITY

The Infinity ECU is constructed using automotive-rated components designed to withstand the harshest racing environments. Its enclosure and connectors are sealed to make it suitable for engine bay mounting. An advanced wear-leveling strategy for flash memory ensures a lifetime of reliable performance.

COMMUNICATIONS

The Infinity ECU is able to transfer data via USB at up to 480 Mb/second. It features a fully-sealed IP67 communications connection system.

NETWORK INTERFACES

Infinity is AEMnet enabled and will communicate with another AEMnet-equipped device. It is able to output to 3rd party dash/logger devices (not all 3rd party dash/logger devices may be supported).

INFINITY ECU ADVANCED TUNING PACKAGE

Certain Advanced Tuning functions, hardware outputs, and sensor inputs are available for the Infinity Programmable ECU.

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for AEM Electronics to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
