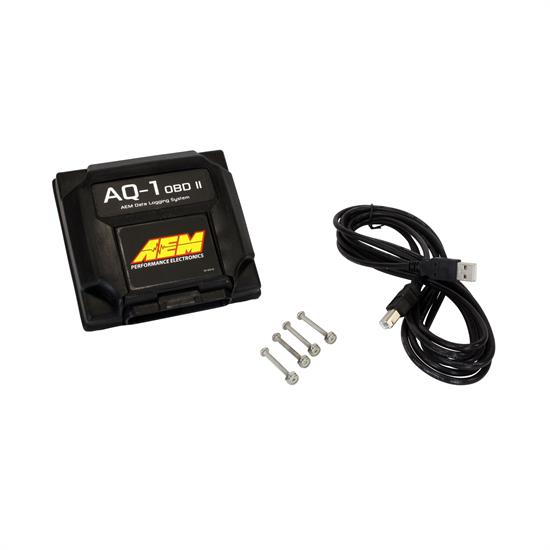

AEM 30-2501 AQ-1 OBDII Data Logging System
AEM 30-2501 AQ-1 OBDII Data Logging System

AEM 30-2501 AQ-1 OBDII Data Logging System

Universal Fit

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
AEM 30-2501 AQ-1 OBDII Data Logging System
AEM 30-2501 AQ-1 OBDII Data Logging System
AEM 30-2501 AQ-1 OBDII Data Logging System
AEM 30-2501 AQ-1 OBDII Data Logging System
AEM 30-2501 AQ-1 OBDII Data Logging System
AEM 30-2501 AQ-1 OBDII Data Logging System
X
AEM 30-2501 AQ-1 OBDII Data Logging System
AEM 30-2501 AQ-1 OBDII Data Logging System
AEM 30-2501 AQ-1 OBDII Data Logging System
AEM 30-2501 AQ-1 OBDII Data Logging System
Zoomed In Image
We estimate this item will ship on or before April 8th.
Part # 186302501
$449.98
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

MFG. Part #:
30-2501
GTIN Code:
840879025489
Sold in Quantity:
Each

Info

The AQ-1 OBDII Data Logger (PN 30-2501) and AQ-1 OBDII wiring harness (PN 30-2907-96) may be the ultimate data acquisition device for sportsman racers and track day enthusiasts with 2008-up model year vehicles! It reads and records data from a 2008-up vehicle’s OBDII port using a supplied connector on the harness, providing critical engine and chassis data with minimal wiring. Just power the unit, configure the OBDII data in the free setup software and it’s ready to start logging. It also has the ability to read and clear diagnostic trouble codes (DTCs) from the OBDII port.

In addition to reading data from a vehicle's OBDII port, the AQ-1 OBDII Data Logger includes 8 analog input channels, 3 switched digital inputs, a serial port for GPS, an onboard 3-axis accelerometer and AEMnet CAN bus cable for daisy-chaining AEMnet equipped devices into the logger and storing all data in one file! See available AEMnet devices below.

Features

EXPANDABILITY

The AQ-1 OBDII Data Logger includes an onboard 3-axis accelerometer and is expandable through eight supplied analog inputs, three switched digital inputs, AEMnet CAN bus, and an RS232 serial connection. These allow you to add specific channels that may not be present on the OBDII datastream including:

  • Four 0-5V analog inputs with software selectable 2.2k pull-up resistor for thermistor (temp) sensors. 0-5v examples: AFR, Boost, Boost before/after the intercooler, MAP, Exhaust Backpressure, Crankcase Pressure, Fuel Pressure, Oil Pressure, Clutch Pressure, Brake Pressure, Shock Travel. Thermistor examples: Air Temp, Coolant Temp, EGT, Trans Temp
  • Four 0-5V/0-16.5V analog or Frequency inputs for all of the above plus RPM, Driveshaft Speed, Wheel Speed, and Turbo Speed
  • Three switched digital inputs for Clutch Switch, Line Lock, Nitrous Switch, Line Lock, etc.
  • RS232 Serial connection for GPS, older AEM engine management systems that transmit data through serial, etc.
  • AEMnet CAN bus for daisy-chaining X-Series Wideband Controllers and performance gauges, 4-Channel Wideband AFR Controller and Wideband Failsafe gauges, Vehicle Dynamics Module to add GPS and gyroscope, or Infinity ECU, Series 2 or EMS-4 EMS systems (future upgrade path)

EASY SET UP

AEM’s AQ-1 Setup Software is intuitive and easy to use. Configuring the OBDII data is as simple as connecting permanent power, switched power and ground, connecting the OBDII plug and connecting the AQ-1 OBDII Data Logger to the vehicle. On average 20-40 channels of data are transmitted. Simply select the channels you wish to log from the data stream, set the logging rate, name the channels if they are not already named and it is ready to go.

The setup screen is broken into a Navigation Tree for your available input channels, Device Info area for data rate and available memory, a Status Bar and a Center Pane to enable and name available logging channels. Setting logging conditions, channel options, calibration data, lap beacons, reading battery voltage, configuring the accelerometer and serial input and more are found in easily navigable subpages.

The inclusion of an AEMnet CANbus input allows for the addition of multiple channels from AEMnet equipped devices through a simple one plug connection. Adding GPS for track mapping with a Vehicle Dynamics Module (VDM), wideband AFR, pressure or temp data from X-Series Digital Performance Gauges, individual cylinder AFR from 4-Channel Wideband Controllers, engine data from an Infinity ECU or Series 2/EMS-4 Programmable Engine Management System and more is all possible without the need to wire additional inputs into the unit.

FREE AEMdata ANALYSIS SOFTWARE

AEMdata analysis software features advanced 3D graphics and a user-friendly interface. It allows users to review and playback vehicle, driver or engine data and overlay this data using charts, dash displays, gauges, or custom displays that you create, or you can select pre-defined templates. All channels are listed in the AEMdata set up menu. Users simply drag and drop the channel that they want to analyze into the window and it will display. AEMdata has powerful features including custom math channels, x/y plots, and histograms, stage or circuit modes and more, all aimed at making sure you get the most out of your data. Track mapping is achieved through GPS or a combination of vehicle speed and accelerometer data, and adding data overlays to HD video is possible using the software’s powerful video encoding feature.

AQ-1 OBDII Data Logger Features:

  • Reads/logs channels from the OBDII port of 2008-up vehicles!
  • All data (OBDII, sensors, daisy-chain) saved to single log file with real-time clock! Reads and clears trouble codes
  • Easy to set up using intuitive free Setup software
  • Four analog inputs for measuring frequency (RPM), 0-5 V or 0-16.5 V
  • Four 0-5 V analog inputs with optional pullup resistor for RTD/Thermistor-style sensor
  • Three switched digital inputs, 16.5 V MAX
  • AEMnet connection included for easy connection to AEMnet enabled devices
  • RS-232 serial input included for adding NMEA0183 GPS device
  • Internal 3-axis accelerometer (+/- 4g MAX)
  • Logging rates of up to 1000 samples/second per channel
  • 8GB removable SD card included for log files (Up to 32GB compatible)
  • Compact size (4.8" x 4.55" x 1.44") and weather-resistant when included protective outer boot is used
  • Track mapping capability
  • Data downloadable via USB port on the AQ-1, weatherproof USB bulkhead in harness or by pulling the SD card
  • Free AEMdata analysis software with HD video encoding for adding data overlays to videos

Specs

The AQ-1 OBDII Data Logger records and stores vehicle data from the OBDII port on 08-up vehicles, analog inputs and CAN bus enabled devices so that it can be downloaded as a single file and analyzed in our free AEMdata analysis software. Knowledge is power, and the information stored in the AQ-1 Data Logger can help users improve a vehicle’s tuning, set up and driving ability. It is ideal for all types of racing and street performance enthusiast vehicles.

  • Log available channels from a vehicle's OBDII port
  • Log AEM gauges, MAP/pressure sensors, TPS, APP, shock travel, load cell sensors, analog, and frequency MAF sensors, any 2-wire temp sensor, any 3-wire pressure sensor, RTD, EGT, vehicle speed, injector duty cycle, boost control solenoid, flow sensor, HALL sensor, clutch pressure, brake pressure, and more!
  • Three switched-to-ground inputs for a clutch, brake, cooling fan ground switch, nitrous solenoid ground or ground switch to start and stop AQ1 Logger (ground activated input)
  • Track mapping capability via NMEA GPS device (RS 232 serial port included)
  • Internal 3-axis accelerometer
  • AEMnet enabled (will communicate with other AEMnet devices via daisy chain)
  • Powerful AEMdata data analysis software is free
  • 8GB card included, supports cards up to 32GB
  • Size: 4.8" x 4.55" x 1.44"
  • Wiring harnesses available (sold separately)

AEMnet CANbus DEVICES SUPPORTED BY AQ-1 SOFTWARE VERSION 1.7

  • 30-0300 X-Series Wideband UEGO AFR Gauge (LSU4.9)
  • 30-0301 X-Series Oil/Fuel Pressure Gauge 0 to 100psi / 0 to 7bar
  • 30-0302 X-Series Oil/Transmission/Water Temperature Gauge 100 to 300F / 40 to 150C
  • 30-0305 X-Series EGT Gauge 0 to 1800F / 0 to 1000C
  • 30-0306 X-Series Boost Gauge -30inHg to 35psi / -1 to 2.5bar
  • 30-0307 X-Series Oil Pressure Gauge 0 to 150psi / 0 to 10bar
  • 30-0308 X-Series Boost Gauge -30inHg to 60psi / -1 to 4bar
  • 30-0309 X-Series Boost/Fuel Pressure Gauge 0 to 15psi SAE Only
  • 30-0310 X-Series Inline Wideband UEGO AFR Controller (LSU4.9)
  • 30-0313 X-Series GPS Speedometer Gauge 0 to 160mph / 0 to 260kph
  • 30-2203 Vehicle Dynamics Module
  • 30-2340 4 Channel Wideband UEGO Controller
  • 30-4900 Wideband Failsafe Gauge
  • 30-4911 Flex Fuel Wideband Failsafe
  • 30-6905 Universal Programmable Engine Manement System. EMS 4
  • 30-71XX Infinity ECU (All models and firmwares)
  • N/A Series 2 Plug & Play Engine Management System

CHANNELS 1-4 - 0-5V or optional pullup resistor for RTD/Thermistor-style sensors

Choose up to 4(Sensor Examples)

  • Air/Fuel Ratio 1
  • Air/Fuel Ratio 2
  • Air/Fuel Ratio 3
  • Air/Fuel Ratio 4
  • 0-5V Boost
  • 0-5V Boost After Intercooler
  • 0-5V Boost Before Intercooler
  • 0-5V MAP
  • 0-5V Exhaust Back Pressure
  • 0-5V Crank Case Pressure
  • 0-5V Fuel Pressure
  • 0-5V Oil Pressure
  • 0-5V Clutch Pressure
  • 0-5V Brake Pressure
  • 0-5V Shock Travel Sensor
  • Air Temperature
  • Coolant Temperature
  • Trans Temperature
  • EGT 1
  • EGT 2
  • EGT 3
  • EGT 4

CHANNELS 5-8 - 0-5V, 0-16.5V or Frequency-based sensors

Choose up to 4(Examples of sensors)

  • Air/Fuel Ratio 1
  • Air/Fuel Ratio 2
  • Air/Fuel Ratio 3
  • Air/Fuel Ratio 4
  • 0-5V Boost
  • 0-5V Boost After Intercooler
  • 0-5V Boost Before Intercooler
  • 0-5V MAP
  • 0-5V Exhaust Back Pressure
  • 0-5V Crank Case Pressure
  • 0-5V Fuel Pressure
  • 0-5V Oil Pressure
  • 0-5V Clutch Pressure
  • 0-5V Brake Pressure
  • 0-5V Shock Travel Sensor
  • RPM
  • Driveshaft Speed
  • Wheel Speed
  • Turbo Speed

Switched Digital Inputs 1-3

Choose up to 3(Examples)

  • Clutch Switch
  • Brake Switch
  • Line Lock
  • Nitrous Switch

Serial/GPS

Choose 1(Examples)

  • GPS for Vehicle Speed, GPS Location and Track Mapping - Recommended Garmin 18x 1Hz & 5Hz models (some wiring may be required)
  • Series 1 EMS (available upgrade path)
  • Series 2 EMS (available upgrade path)

AEMnet

  • 30-0300 X-Series Wideband UEGO AFR Gauge (LSU4.9)
  • 30-0301 X-Series Oil/Fuel Pressure Gauge 0 to 100psi / 0 to 7bar
  • 30-0302 X-Series Oil/Transmission/Water Temperature Gauge 100 to 300F / 40 to 150C
  • 30-0305 X-Series EGT Gauge 0 to 1800F / 0 to 1000C
  • 30-0306 X-Series Boost Gauge -30inHg to 35psi / -1 to 2.5bar
  • 30-0307 X-Series Oil Pressure Gauge 0 to 150psi / 0 to 10bar
  • 30-0308 X-Series Boost Gauge -30inHg to 60psi / -1 to 4bar
  • 30-0309 X-Series Boost/Fuel Pressure Gauge 0 to 15psi SAE Only
  • 30-0310 X-Series Inline Wideband UEGO AFR Controller (LSU4.9)
  • 30-0313 X-Series GPS Speedometer Gauge 0 to 160mph / 0 to 260kph
  • 30-2203 Vehicle Dynamics Module
  • 30-2340 4 Channel Wideband UEGO Controller
  • 30-4900 Wideband Failsafe Gauge
  • 30-4911 Flex Fuel Wideband Failsafe Gauge
  • 30-6905 Universal Programmable Engine Manement System. EMS 4 (available upgrade path)
  • 30-71XX Infinity ECU (All models and firmwares, available upgrade path)
  • N/A Series 2 Plug & Play Engine Management System (available upgrade path)

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for AEM Electronics to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations

More Like This
