9 Super 7® 3x2 Carb/Intake Manifold Kit, Vortec S/B Chevy
9 Super 7® 3x2 Carb/Intake Manifold Kit, Vortec S/B Chevy
Three Carburetor Quantity, 2-Barrel Carburetor Barrels, 2-Barrel 3-Bolt Carburetor Flange Type
Out of Stock
Kit Item Unavailable
Select Vehicle
9 Super 7® 3x2 Carb/Intake Manifold Kit, Vortec S/B Chevy
X
Part # 9251230
$1,299.99
$1,599.99
kit
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
Build Your Kit
You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.Next
Details
Carburetor Quantity:
Three
Carburetor Barrels:
2-Barrel
Carburetor Flange Type:
2-Barrel 3-Bolt
Choke Type:
Manual
Fuel Type:
Gasoline
Intake Manifold Material:
Aluminum
Intake Manifold Finish:
Satin
Carburetor Finish:
Natural
Air Cleaner Type:
Round Exposed Filter
Air Cleaner Finish:
Chrome
MFG. Part #:
9251230
Sold in Quantity:
Kit
Info

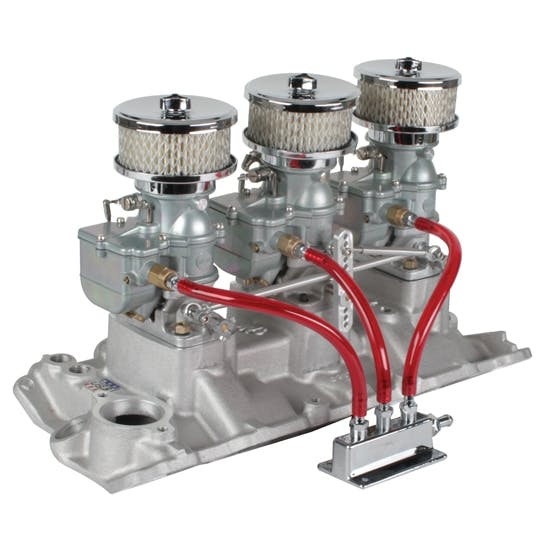

This kit uses the Edelbrock S/B Chevy '96-up Vortec-style 3x2 intake with 3-bolt carbs. It includes a progressive linkage to give you excellent driveability and economy, with power when you need it. It includes three Speedway 9 Super 7® carbs, the intake manifold, air cleaners, linkage kit, fuel block, fittings, and red fuel line.
A fuel regulator such as # 560-58500 must be utilized in order to keep proper fuel pressure at the 1-1/2 to 4 psi range.
Assembly required.
Charts
Important Messages:
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
Related Products
-
Offenhauser Chrome Universal Adjust. Fuel Pressure Regulator, 1-6 PSI$29.99 -
Edelbrock 5418 Small Block Chevy 3x2 3-Bolt Carb Intake Manifold$432.95
What's In The Kit
Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
-
Edelbrock S/B Chevy Vortec 3x2 Manifold for 3-Bolt CarbPart # 3255414Qty x 1
-
9.5 Inch Swedged Aluminum Throttle Linkage Tubes, 3/16 (10-32) ThreadPart # 94055301-9.5Qty x 1
-
Progressive Slide LinkPart # 1356686Qty x 1
-
3 1/2" Single End 3/16" TubePart # 1356688Qty x 1
-
3 x 2 9 Super 7 Linkage KitPart # 1356723Qty x 1
-
97-Style Carburetor Fuel Inlet Fitting, 1/2 In-20 to 5/16 Hose, ChromePart # 91611066Qty x 3
-
Red See-Through Fuel Line Hose, 5/16 Inch I.D. x 6 Ft.Part # 91011449Qty x 1
-
Primary 9 Super 7® 3-Bolt 2-Barrel Carburetor, Plain FinishPart # 91511655Qty x 1
-
1 1/4" Carb Stud Kit Bag of 4Part # 13559Qty x 3
-
Straight Chrome Fitting, 3/8 Inch Hose to 3/8 Inch NPTPart # 91611058Qty x 1
-
Straight Chrome Fitting, 5/16 Inch Hose to 1/4 Inch NPTPart # 91611048Qty x 3
-
Speedway Three Outlet T-Style Chrome Fuel Distribution BlockPart # 5506151Qty x 1
-
Tri-Bar Wing Nut Style Air CleanersPart # 91011018Qty x 3
-
Speedway Small Block Chevy Intake Gasket Set, Vortec Heads, StandardPart # 91010225Qty x 1
-
Stromberg 97-Style Center Carb Throttle Shaft ArmPart # 5606181Qty x 1
-
Secondary 9 Super 7® 3-Bolt 2-Barrel Carburetor, Plain FinishPart # 91511656Qty x 2
