3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings

3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings

Universal Fit, Steel, 0.188" Tube O.D., 25 ft. Overall Length, -3 AN, Poly-Vinyl Fluorine (PVF)

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
X
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
3/16 Inch PVF Coated Steel Brake Line Kit, -3 AN Fittings
Zoomed In Image
Part # 9109519
$174.99
$180.75
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • This brake line kit makes it easy to install all new brake lines on your project
  • Includes 25 ft roll of PVF Poly-Armour coated premium steel 3/16" brake line
  • Includes jam nuts, bulkhead adapters, mounting tabs, and flare nuts required for 3/8"-24 inverted flare connections
  • Four 18" stainless steel braided AN 3 flexible brake hoses are included to connect your calipers or wheel cylinders
  • A flare tool such as 91089520 or 91089528 will be needed to create 37 degree flares

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Material Type:
Steel
Tube O.D.:
0.188"
Overall Length:
25 ft.
AN Size:
-3 AN
Finish:
Poly-Vinyl Fluorine (PVF)
Sold in Quantity:
Kit
Notes:
Fittings to calipers and master cylinders are not included.

Info

Speedway makes plumbing brake lines easy with this steel brake line kit that includes new lines and fittings to make your job less stressful.

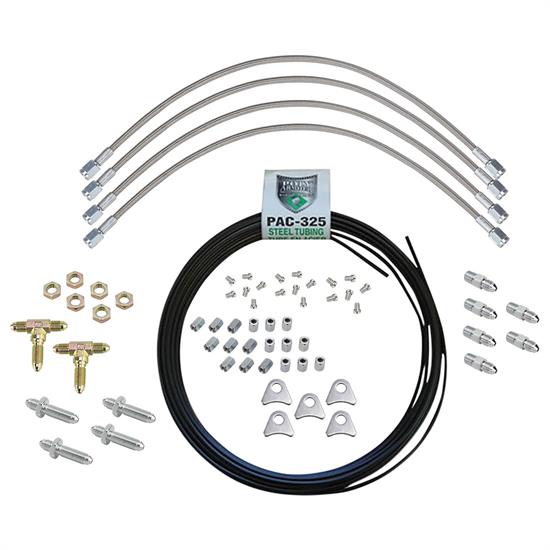

Kit Includes:

  • (1) 25 Ft. Roll of Speedway 3/16 Inch PVF Coated Steel Brake Line
  • (1) Bag of 6 Right Hand Thread Steel Jam Nuts 3/8"
  • (4) Steel AN3 Straight Bulkhead Adapters
  • (3) Bag of 6 Steel AN3 Tube Nuts

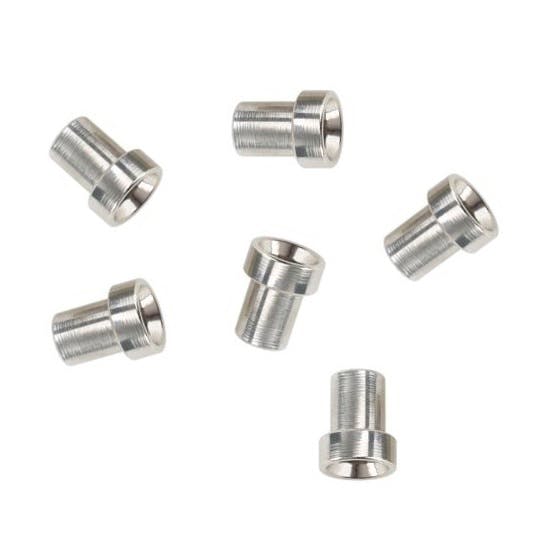

  • (3) Bag of 6 Steel AN3 Tube Sleeves
  • (6) Straight -3 AN Male to 1/8 NPT Male Adapter Fittings
  • (2) Steel -3 AN Straight Bulkhead Tee Adapter Brake Fittings
  • (1) Bag of 5 Weld-On Chassis Tabs, 1 Inch with 3/8 Hole
  • (4) 18" Braided S.S. Brake Lines - Straight AN3

Learn more about flaring lines for our automotive fittings by reading our tech article. The Principles of Automotive Fittings.

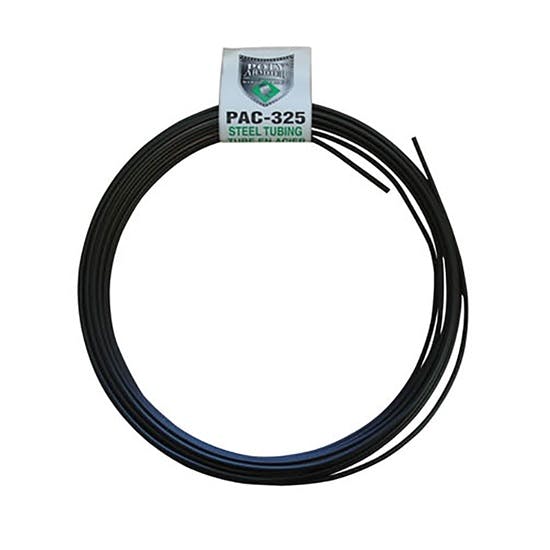

Speedway 3/16 Inch PVF Coated Steel Brake Line

Now available for your 3/16" brake line consideration is a new PVF Poly-Armour Poly-Vinyl Fluorine coated brake line.

  • PVF coating is a highly durable 'plastic' coating that is 'baked and cured' to the line for a durable finish that provides a clean look and appearance with a dark olive green color
  • This provides extra protection from corrosion, debris, and road surfacing solutions
  • Also offers superior bend-ability without kinking and bends easier than standard brake line tubing
  • This makes Poly-Armour the easiest line to work with-period!
  • Underneath the PVF coating is a double-wall, low carbon steel, copper brazed tubing which meets all international and U.S. requirements for brake tubing
  • Considered a premium line, Poly-Armour hard line should be used on any vehicle that will see any type of harsh environment including snow, road treatments, salt, air, dirt/gravel etc.
  • PVF Poly-Armour coated line is the perfect choice for the racer for those weekend after race chassis washes week after week or any street rod fabricator wanting to utilize a hard line application for that beautiful finish that will last for years
  • Available in a 25' roll of 3/16" line

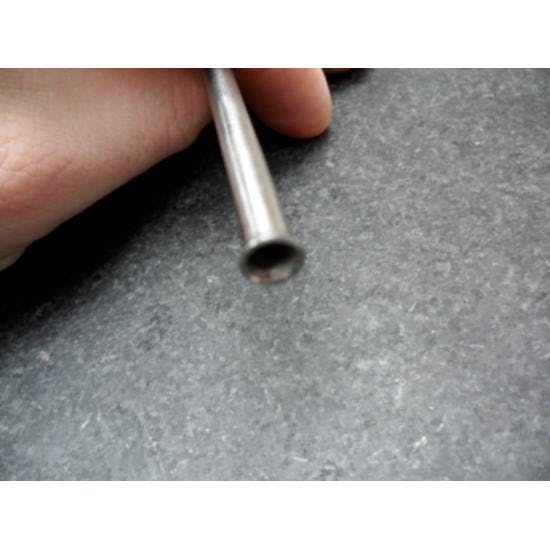

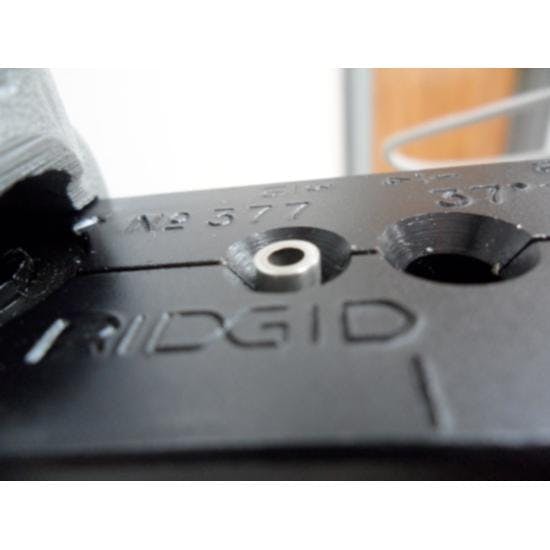

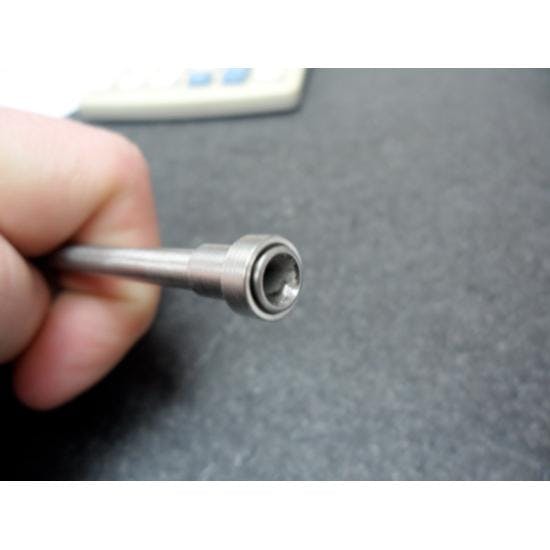

  • This line bends easily and smoothly with hand tools and can be flared with a 37° AN flaring tool, or 45° double flaring tool
  • Use in conjunction with our 3/8"-24 inverted flare male brake line nuts, or AN tube nuts and sleeves



Right Hand Thread Steel Jam Nuts 3/8"

  • Made from premium steel (zinc-coated for corrosion prevention)
  • 3/8 Inch-24 NF Fine Thread
  • Sold in bags of six nuts
  • Right hand thread



Steel AN3 Straight Bulkhead Adapters

  • Straight bulkhead AN 3 steel adapters

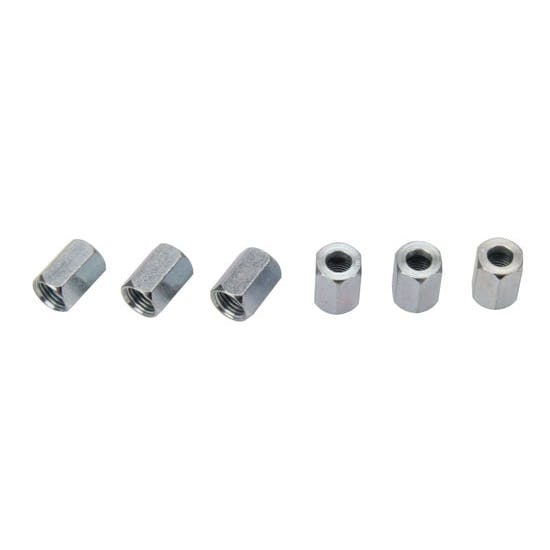

Steel AN3 Tube Nuts

  • All steel AN 3 tube nuts
  • The go-to for your custom brake fluid system

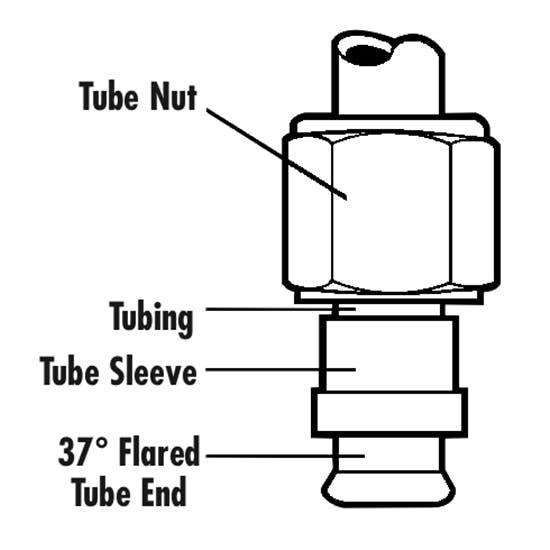

  • Provides the best seal utilizing a 37 degree flare to ensure your system stays leak free for many years to come!
  • All steel construction
  • AN 3 Female



Straight -3 AN Male to 1/8 NPT Male Adapter Fittings

  • These steel fittings adapt 1/8" NPT ports to -3 AN line
  • Commonly used in brake systems when converting pipe thread to a 37-degree flare (AN)
  • Useful for plumbing brake line/hose to calipers, inline residual pressure valves, and inline proportioning valves

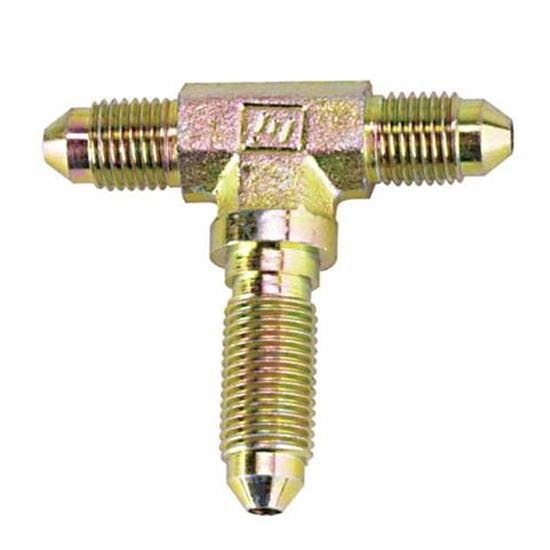

Steel -3 AN Straight Bulkhead Tee Adapter Brake Fittings

  • These bulkhead tee adapter fittings are manufactured from zinc finished steel to exacting standards for tight, leak-free connections
  • Plumb your racer like a pro with our bulkhead tee adapter fittings
  • TEE bulkhead -3 AN steel adapters
  • -3 AN
  • Steel
  • Male Threads



Weld-On Chassis Tabs, 1 Inch with 3/8 Hole

  • Weld-on tabs for miscellaneous mounting jobs
  • 1" Long, 3/8" Hole, .120" Steel



18" Braided S.S. Brake Lines - Straight AN3

  • Braided stainless covering over a Teflon inner liner
  • Perfect for brake lines, clutch lines and gauge lines
  • Straight AN3 fittings on both ends
  • 18" each in length
  • Zinc Plated Steel Ends



Charts

Brake System Builder Tip (GIF)



Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Steel Jam Nuts 3/8" 6/Pack
    Qty x 1
  • Steel AN3 Straight Bulkhead Adapter
    Qty x 4
  • Steel AN3 Tube Nuts - 6/Bag
    Qty x 3
  • Steel AN3 Tube Sleeve - 6/Bag
    Qty x 3
  • Straight -3 AN Male to 1/8 NPT Male Adapter Fitting
    Qty x 6
  • Steel -3 AN Straight Bulkhead Tee Adapter Brake Fitting
    Qty x 2
  • Weld-On Chassis Tabs, 1 Inch with 3/8 Hole
    Qty x 1
  • Speedway 3/16 Inch PVF Coated Steel Brake Line, 25 Ft. Roll
    Qty x 1
  • 18" Braided S.S. Brake Line - Straight AN3
    Qty x 4
