2 Inch Drop Spindle/Brake Kit, 1958-64 Chevy, 5 on 4.75 Inch
2 Inch Drop Spindle/Brake Kit, 1958-64 Chevy, 5 on 4.75 Inch
Front Position, 5 on 4.75" Bolt Pattern, 11 Inch Rotor Diameter, Vented Rotor Type, Natural
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
2 Inch Drop Spindle/Brake Kit, 1958-64 Chevy, 5 on 4.75 Inch
X
Part # 91034911
$499.99
kit
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
- Achieve the more aggressive look you want for your 1958-64 Chevy with 2" drop spindle kit

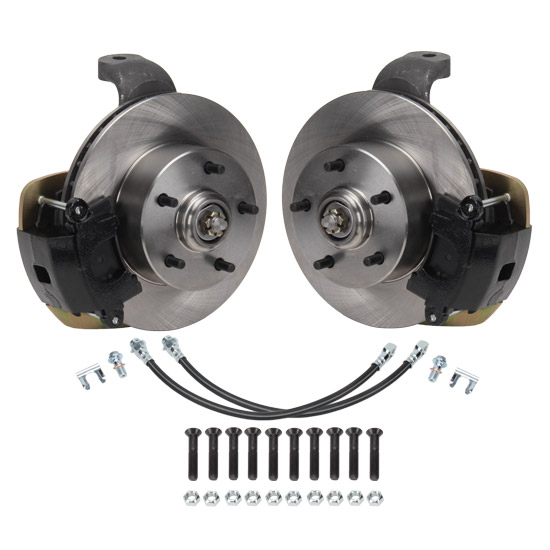

- Features 2" drop spindles, 1969-72 Chevelle type cast iron rotors, 1982-91 S10 2wd type loaded calipers, spindle nuts, hoses, bearings, seals, & hardware
- Utilizes your original bolt-on steering arms which are not included with the kit
- Rotors come with 7/16" wheel studs installed in a 5 on 4.75" bolt pattern
- Will not work with 14" drum brake wheels but will work with 14" disc brake wheels and increase track width from drums 1-1/16"
Build Your Kit
You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.Next
Details
Position:
Front
Bolt Pattern:
5 on 4.75"
Rotor Diameter:
11 Inch
Rotor Type:
Vented
Caliper Pistons:
One
Caliper Finish:
Natural
Color:
Natural
Parking Brake Provision:
No
MFG. Part #:
91034911
Thread Pitch:
7/16" wheel studs
Sold in Quantity:
Kit
Front Rotor Included:
Yes
Front Rotor Diameter:
11 Inch
Rear Rotor Included:
No
Front Caliper Included:
Yes
Front caliper Piston Quantity:
1
Front Caliper Finish:
Natural
Rear caliper Included:
No
Front Spindles Included:
Yes
Master Cylinder Included:
No
Brake Booster Included:
No
Info
- 2" of drop
- 1958-64 1-1/16" increase in track width from drums
- 1965-70 11/16" increase in track width from drums
- Works with most 14" disc brake wheels
- Will not work with 14" drum brake wheels
- Utilizes 1982-91 Chevy S10 2wd pickup type calipers and pads
- Utilizes 1969-72 Chevelle type rotor
- Utilizes orginal bolt-on steering arms which are not included with kit.
- Original bolt-onsteering arms must be re-used.
Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
What's In The Kit
Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
-
Spindle/Brake Box, LH Drivers Side ComponentsPart # 91034911.1Qty x 1
-
Spindle/Brake Box, RH Passenger Side ComponentsPart # 91034911.2Qty x 1
