1970-72 Chevelle Power Steering Conversion Kit

Complete power steering kit for making the cruise a bit more comfortable. Includes all the items needed to add or update your existing steering system.  Fits 1970-72 Chevelles

Kit Includes:

• (1) Lares Power Steering Box
• (1) Lares Power Steering Pump
• (1) SBC Crank Pulley
• (1) SBC Single Groove Water Pump Pulley
• (1) D&R Power Steering Pump Pulley
• (1) GM Style Steering Shaft Rag Joint
• (1) GM A-Body Steering Box Pitman Arm
• (1) Power Steering Pump Brackets
• (1) Power Steering Pump Cap/Dipstick
• (1) Gates Power Steering Hose
• (1) Gates Power Steering Return Hose
• (1) GM Power Steering Pump Pulley Nut
• (1) Power Steering Pump and Bracket Hardware Kit

Power Steering Box

No core required. Rebuilt by professional rebuilders. This model is perfect for the street/road course/road race for tight turn applications.

• Power Steering Gears are thoroughly cleaned and exterior surfaces reconditioned for like-new look
• Each component is carefully inspected and replaced if not to OE tolerances
• All seals and O-rings are replaced with OE equivalent parts
• Each unit is tested to insure OE performance
• Port Size #1: 5/8 Inch
• Port Size #2: 11/16 Inch
• Turn Lock to Lock: 3.25

Power Steering Pump

OE Style correct power steering pumps completely reconditioned to like new condition. Pumps have correct fittings, correct bolt hole locations, pulley retaining nut, and correct reservoir to bolt right in place just like the originals. Fits Small Block Chevelles Camaro, Nova. No core charges.

• Reconditioned power steering pump
• OE Style
• Camaros & Classics part number PS2820
• 69 small block, 70-74 Camaro
• 70-73 Chevelle
• 69-74 Nova V8
• 73-74 C10,C20
• 71-74 Monte Carlo
• 70-74 Impala

SBC Crank Pulley

Faithfull stamped steel reproductions with correct part number and code die stamped as originals. Indispesable when adding air conditioning to long water pump motors, including vintage air and other aftermarket a/c kits that do not include needed pulleys. Fits Small Block applications.

• Crank pulley
• Stamped steel
• Fits small block applications
• Fits 1969-79 Nova
• Camaros & Classics part number PL2122

SBC Water Pump Pulley

This single groove crank pulley for Small Block Chevys will replace your lost or damaged pulley.

• Replace lost or damaged original pulleys
• Black EDP finish
• Small Block Chevy
• Long Pump

Power Steering Pump Pulley

A reproduction single groove power steering pump pulley for 67-74 Camaro, 64-72 Nova & Chevelle w/o AC. Uses a single 3/8 wide belt. Measures 5.75 o.d. For use on non AC applications. Includes small blocks, and 396/375 H.P.

• Reproduction single groove power steering pulley
• Fits 1967-74 Camaro/64-72 Chevelle and Nova
• For applications without air conditioning

GM Style Steering Shaft Rag Joint

Whether you are rebuilding, repairing or updating your GM car, the steering rag joint is a must do. Attaches with two studs to original steering column plate. Splines fit steering box.

GM Steering Box Pitman Arm

Brand new 1968-1972 GM midsize pitman arms

Fits the following "4-bolt top" applications:

• Sweet and 800 Series GM box
• Big Spline" GM power 700 series Saginaw box
• Big Spline" GM power 600 series Delphi box

• 1968-72 Chevy Chevelle, El Camino, Malibu, & Monte Carlo
• 1968-72 Buick Century, Luxus, Regal, Skylark, & Special (rwd)
• 1966-72 Oldsmobile Cutlass, F85, Vista Cruiser, 4-4-2, & Calais (rwd)
• 1964-72 Pontiac GTO, Lemans, Grand Am, Grand Lemans, Tempest, & T37

1. This pitman arm is ONLY correct for the '68-'72 mid size GM vehicles. It will NOT work with the earlier '64-'67 drag link (center link) nor will it work with the '73-'77 drag link (center link). The '78 and up center links have the correct diameter stud but require a different length pitman arm for correct steering geometry.
2. This arm offsets or extends out towards the small tappered side of the large hole.

Fits common "4-bolt" top Sweet, 800 Series GM, "Big Spline" 700 Series Saginaw, and "Big Spline" 600 Series Delphi boxes. This pitman arm is ONLY correct for the '68-'72 midsize GM vehicles.

Power Steering Pump Brackets

Correct reproduction power steering pump bracket kit. Includes 3 brackets For use with small block applications. Officially Licensed GM Restoration Parts from Classic Headquarters.

• Power steering bracket set
• 3 piece set
• For Small Block
• For 1969-72 Camaro, Nova, Chevelle/El Camino

Flushing and Bleeding Instructions (PDF)

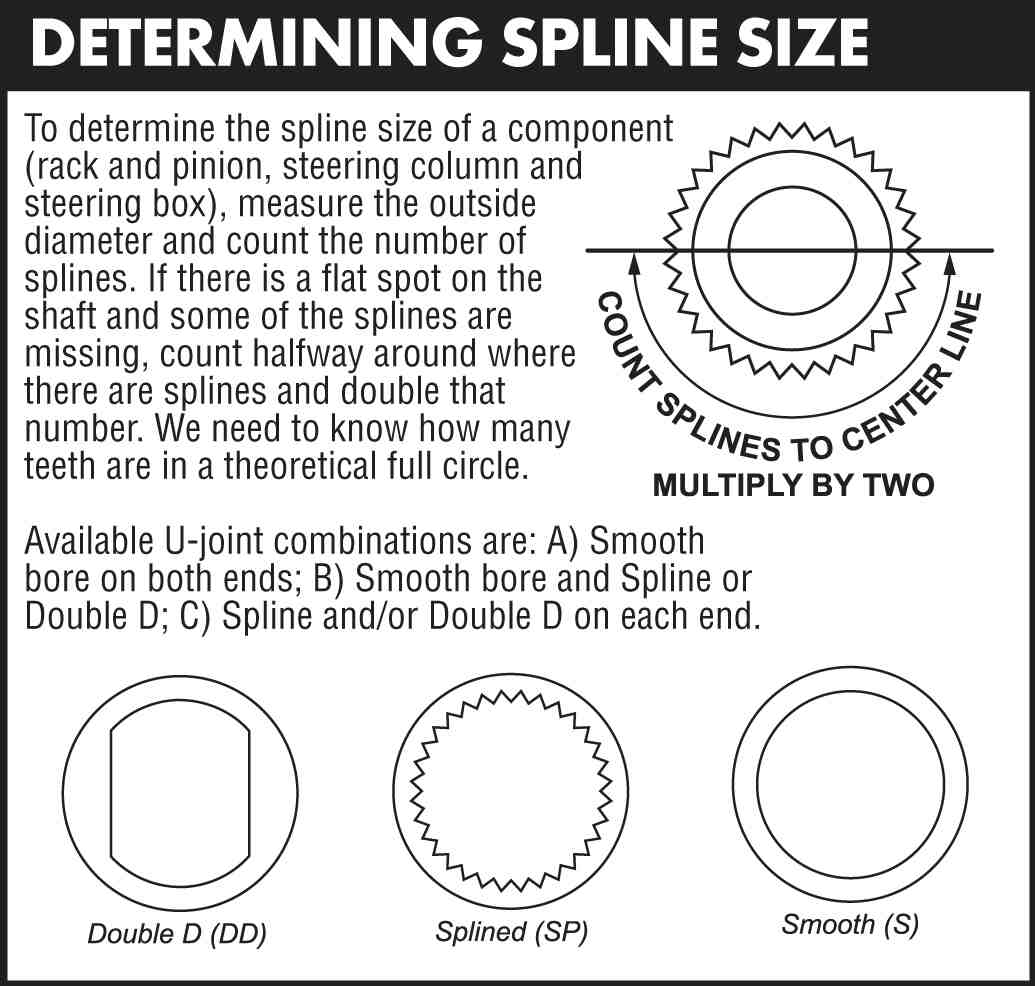

Spline Size Chart (JPG)
