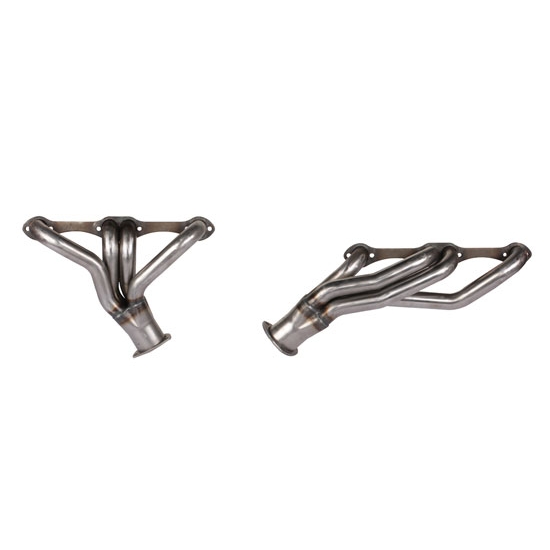

1969-87 GM A/F/G Body SBC Shorty Headers, Manual Trans, Raw
1969-87 GM A/F/G Body SBC Shorty Headers, Manual Trans, Raw

1969-87 GM A/F/G Body SBC Shorty Headers, Manual Trans, Raw

Chevy Small Block V8, Shorty Header Tube Type, Natural, Round Port Flange Style, Steel

0 Reviews | 11 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
1969-87 GM A/F/G Body SBC Shorty Headers, Manual Trans, Raw
1969-87 GM A/F/G Body SBC Shorty Headers, Manual Trans, Raw
Zoomed In Image
Part # 9300109
$194.99
set
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Header Tube Type:
Shorty
Finish:
Natural
Flange Style:
Round Port
Primary Tube Diameter:
1-5/8"
Material Type:
Steel
MFG. Part #:
9300109
Collector Diameter:
3 Inch
Collector Length:
4"
Flange Thickness:
.31"
Port Height:
1.68"
Port Width:
1.37"
Drivers Side Dimension A:
4.10"
Drivers Side Dimension B:
13.63"
Drivers Side Dimension C:
18.38"
Passenger Side Dimension A:
5.88"
Passenger Side Dimension B:
10.20"
Passenger Side Dimension C:
25.63"
Hardware Included:
Yes
Gasket(s) Included:
Yes
Sold in Quantity:
Pair

Info

These S/B Chevy headers are a shorty design that give maximum ground clearance and work with floor-shift manual transmissions only. Features 1-5/8" primary tubes and 3" collectors. Built with surface machined thick steel flanges for a great seal and mandrel bent mild steel tubing.

Headers come with installation hardware, collector reducers, gaskets and instructions.

  • 1967-81 Camaro/Firebird
  • 1968-87 Chevelle, Malibu and El Camino
  • Must use non-shell style motor mounts
  • Manual Transmissions Only

Header Dimensions Chart (JPEG)

Notes

  1. Fits D-Port cylinder heads including ZZ4 crate engine
  2. Will not fit with Saginaw Close Ratio 825 Steering Box
  3. Does not fit 67-69 Camaro with A/C
  4. Will fit most angle plug heads including factory Chevrolet “Bow-Tie” heads
  5. Requires removal or modification of locking steering columns if equipped
  6. Installation requires left side A/C bracket; 1979-Later vehicles with short compressors can use the stock bracket
  7. Must use non-shell type motor mounts
Some parts are not legal for use in California or other states with similar laws/regulations
