1964-70 Mustang Tri-Y Headers, AHC Coated

#9308426H

1964-70 Mustang Tri-Y Headers, AHC Coated

Name: 1964-70 Mustang Tri-Y Headers, AHC Coated
Brand: Speedway Motors
SKU: 9308426H
Price: 509.99 USD
Availability: LimitedAvailability
Rating: 4.7 (3 reviews)

3 Reviews

3 Questions

Armor Hot Coat® is a Speedway Motors custom ceramic heat proof coating that will keep the finish of these headers looking great for years to come

$509.99

/pair

In Stock

Order soon, only 2 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle and engine to verify Fitment

Select Vehicle

Select Engine

Product Summary

Long Tube Header Tube Type, Oval Exhaust Port Shape

Armor Hot Coat® is a Speedway Motors custom ceramic heat proof coating that will keep the finish of these headers looking great for years to come

See more details

Key Specs

MFG. Part #	9308426H
Header Tube Type	Long Tube
Exhaust Port Shape	Oval
Flange Style	Standard
Primary Tube Diameter	1-1/2"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 9308426H Details

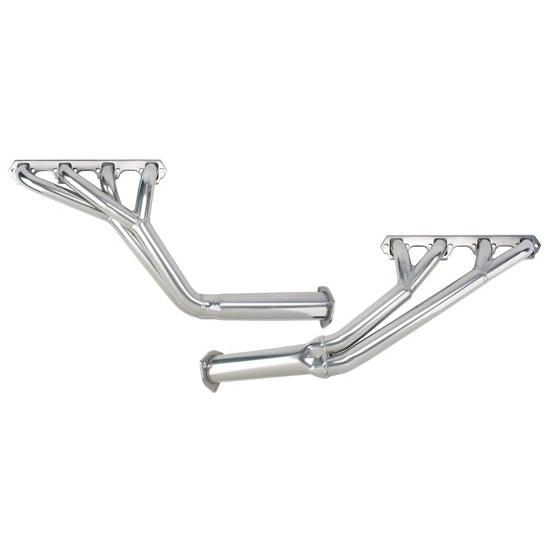

These headers are a replica of the Shelby TRI-Y header made famous in the 60's. They fit 260-302 V8s in 1964-70 Ford Mustangs* with automatic or manual transmissions (10.5" max clutch diameter). You will need bracket # 930-7609 listed below if car has power steering. These ceramic coated headers provide superior performance and durability.

1-1/2" - 1-3/4" stepped primaries
2-1/2" collectors

*See Notes tab for important install info.

Application

A/C: Yes
P/B: Yes
P/S: Yes (with bracket listed)
Auto on Column: Yes
Auto on Floor: Yes
Standard on Column: No
Standard on Floor: Yes

Specs

A/C: Yes
P/B: Yes
P/S: Yes (with bracket listed)
Auto on Column: Yes
Auto on Floor: Yes
Standard on Column: No
Standard on Floor: Yes

Guides & Documents

Choosing the Right Headers

Warranty Information

AHC Warning: AHC coatings will burn and be damaged at exhaust temperatures over 1300 degrees. A lean fuel mixture can generate exhaust temperatures exceeding 1700-1900 degrees. If the coating is damaged due to a lean condition, the coating will not be warranted, but can be recoated for a fee.

Not legal for sale or use in California on pollution controlled vehicles

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Speedway Motors 9308426H Specifications

KEY SPECS
MFG. Part #	9308426H
Brand	Speedway Motors
Header Tube Type	Long Tube
Exhaust Port Shape	Oval
Flange Style	Standard
Primary Tube Diameter	1-1/2"
Material Type	Steel
Color	Silver
Weld-Up	No
Collector Diameter	2-1/2 Inch
Finish	Ceramic Coated
Hardware Included	Yes
Gasket(s) Included	Yes
Collector Reducers Included	No
Collector Attachment Type	3-bolt flange

GENERAL
Sold in Quantity	Each
Collector Length	11.75"
Flange Thickness	.32"
Port Height	1.64"
Port Width	1.22"
Drivers Side Dimension A	4.8"
Drivers Side Dimension B	16.16"
Drivers Side Dimension C	31"
Passenger Side Dimension A	5.75"
Passenger Side Dimension B	15.25"
Passenger Side Dimension C	32.63"
