1964-66 Mustang Self-Tuning EFI and Fuel Tank Kit
1964-66 Mustang Self-Tuning EFI and Fuel Tank Kit

1964-66 Mustang Self-Tuning EFI and Fuel Tank Kit

4-Barrel Square Bore Carburetor Flange Type, Throttle Body Injection Style, User Tunable, Black

0 Reviews | 3 Answered Questions
On Backorder
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
1964-66 Mustang Self-Tuning EFI and Fuel Tank Kit
1964-66 Mustang Self-Tuning EFI and Fuel Tank Kit
1964-66 Mustang Self-Tuning EFI and Fuel Tank Kit
1964-66 Mustang Self-Tuning EFI and Fuel Tank Kit
1964-66 Mustang Self-Tuning EFI and Fuel Tank Kit
1964-66 Mustang Self-Tuning EFI and Fuel Tank Kit
1964-66 Mustang Self-Tuning EFI and Fuel Tank Kit
1964-66 Mustang Self-Tuning EFI and Fuel Tank Kit
X
1964-66 Mustang Self-Tuning EFI and Fuel Tank Kit
1964-66 Mustang Self-Tuning EFI and Fuel Tank Kit
1964-66 Mustang Self-Tuning EFI and Fuel Tank Kit
1964-66 Mustang Self-Tuning EFI and Fuel Tank Kit
1964-66 Mustang Self-Tuning EFI and Fuel Tank Kit
1964-66 Mustang Self-Tuning EFI and Fuel Tank Kit
Zoomed In Image
We estimate this item will ship on or before May 17th.
Part # 91606076
Save $74
$1,405.99
$1,479.94
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • This self tuning EFI and tank kit is specifically designed for the 1964-66 Mustang
  • The throttle body fuel injection replaces any square bore or spread bore style 4-barrel carburetor
  • A built-in ECU keeps the wiring neat and tidy with no need to run the computer and associated wiring back into the cab of the vehicle
  • Tank has a coated galvanized steel construction
  • Features a EFI-style internal baffling with 4.3-liter internal fuel tray to prevent fuel pump starvation

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Carburetor Flange Type:
4-Barrel Square Bore
Injection Style:
Throttle Body
User Tunable:
Yes
Self Tuning:
Yes
Injectors Included:
Yes
Injector Size:
100 lbs./hr.
Intake Manifold Included:
No
Metering Style:
Speed density
EGR:
No
CFM:
800 CFM
Throttle Body Included:
Yes
Throttle Body Material:
Cast Aluminum
Throttle Body Finish:
Black
Venturi Quantity:
4
Fuel Pump Included:
Yes
Fuel Rails Included:
No
Calibration Module Included:
Yes
ECM Included:
Yes
Wiring Harness Included:
Yes
Fuel Pressure Regulator Included:
Yes
Distributor Included:
No
MAP Sensor Included:
Yes
IAC Motor Included:
Yes
IAT Sensor Included:
Yes
TPS Sensor Included:
Yes
Finish:
Black
Use with Power Adder:
No
Venturi Diameter:
54.00mm
Max Horsepower Rating:
650
Color:
Black
Throttle Body Barrels:
4-Barrel
Flow Rating:
255 LPH @ 40 PSI
MFG. Part #:
91606076
Sold in Quantity:
Kit

Info

Put an end to mysterious air/fuel ratios, jet changes, and cold-start rough idle troubles with Holley Sniper EFI. Affordable aftermarket fuel injection is here and it couldn't be any easier to install on your vehicle. Holley Sniper EFI is a perfect match for any muscle car, classic truck, street rod, or nearly any other carbureted vehicle. Economically priced to save your hard-earned money for other parts of your build; Holley Sniper EFI is a self-tuning, plug and play fuel injection system that takes all the trouble and guesswork out of your switch to modern electronic fuel injection. With over 100 years of building quality fuel systems, you can trust Holley Sniper with all your electronic fuel injection needs!

Holley Sniper 4150 4-Barrel Self-Tuning Base Kit

Holley Sniper EFI is packed with all the features that your car or truck needs. This throttle body fuel injection replaces any square bore or spread bore style 4-barrel carburetor. The built-in ECU keeps the wiring neat and tidy with no need to run the computer and associated wiring back into the cab of the vehicle. Connect the 4 necessary wires and you're good to go. The self-learning ECU takes care of setting the baseline tune while the full touchscreen display allows you to fine-tune as you please. Sniper EFI throttle bodies utilize OEM style TPS and IAC modules for dependable and serviceable use. Life is too short to hassle with cold start issues, hesitations, flooding, and carburetor inconsistencies. Leave that old 4-barrel to rest and bring in a new era of performance, reliability, and fun with a Holley Sniper EFI system!



  • Direct carburetor replacement
  • Fits single and dual plane intake manifolds
  • Naturally aspirated applications only
  • Throttle body mounted ECU - no extra computers to mount or relocate
  • Capable of supporting up to 650 HP
  • Simple, 4 wire connection (Battery +, Battery -, Switched ignition & RPM)
  • Built-in pre-set fuel pressure regulator
  • Integrated ignition timing control & coil driver
  • Color touchscreen for easy setup and gauge displays
  • Self-tuning ECU means you don't have to be a computer/tuning expert to enjoy EFI

Tanks 1964-66 Ford Mustang Fuel Injection Tank

These all-inclusive EFI-ready steel fuel tanks from Tanks Inc. take the headache out of converting your classic to modern EFI power. Each kit comes complete with a high-flow (255 liters p/hr) in-tank Walbro pump that supports up to 630 hp. Also included are a sending unit (Ohms will match the make/model/year application of tank), mounting straps, and hose (if applicable).

  • Fits 1964-1966 Ford Mustang
  • 16-gallon capacity
  • 32-3/4" x 24-1/2" x 7-1/2"
  • Coated galvanized steel construction
  • Silver powder-coated finish
  • EFI-style internal baffling with 4.3-liter internal fuel tray to prevent fuel pump starvation
  • Fuel pump/sender are recessed in tank for easy installation
  • No modification needed to your car
  • Looks like an OE tank when installed
  • Includes aftermarket 5-bolt sender tuned for original factory fuel gauge
  • Includes genuine Walbro GSS340 electric fuel pump
    • 255 LPH @ 40 PSI
    • Made in the USA
    • Heavy 10 gauge no-warp mounting plate
    • Oven brazed 1/4" NPT supply/return line port fittings
    • Barbed rollover vent valve fitting
    • Up to 100 PSI operation
    • In-tank wiring harness

Charts

Walbro GSS340 Flow Chart (PDF)

Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

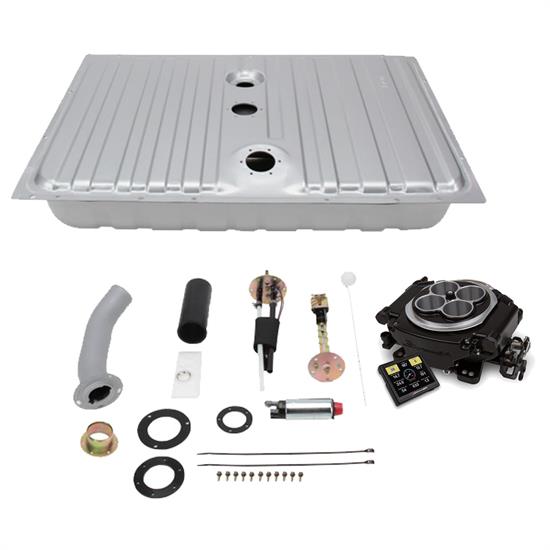

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Tanks MU-HT-Kit-SWM66 1964-66 Ford Mustang Fuel Injection Tank
    Qty x 1
  • Holley Sniper 550-511 EFI 4150 4-Barrel Self-Tuning Base Kit
    Qty x 1
