Part # 9109543
Save $50
$3,576.94
$3,626.99
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • The same kit used on our 1967 Chevy II Gasser project with Car Craft Magazine
  • Made in the USA fabricated steel center section
  • Nodular iron housing is stronger than OEM “gray” iron and has 4 lbs of additional reinforcement - 31 spline, 4.11 gear ratio for racing strip use
  • 11" drum brake kit with drums is double drilled in both 5 on 4-1/2" and 5 on 4-3/4" wheel bolt pattern
  • AFCO Eliminator Twin Tube Adjustable shocks are built specifically for drag racing - fine tune every aspect of the chassis movement to provide the ultimate in acceleration control and overall drivability

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Rear Suspension Type:
Solid Axle
Trailing Arm Style:
Parallel Leaf
Suspension Kit Type:
Upgrade
Spring Type:
Leaf Spring
Shocks Included:
Yes
Shock Adjustability:
Double Adjustable
Shock Body Material:
Aluminum
Sold in Quantity:
Kit

Info

Exact setup as featured on Classic Truck’s Week to Wicked. Watch the transformation here!

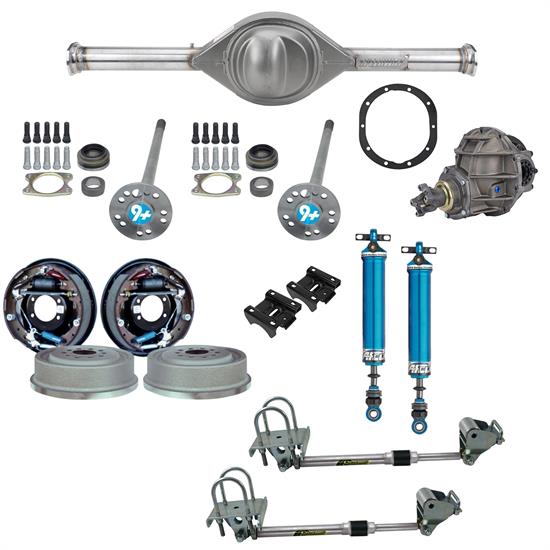

Kit Includes:

  • (2) AFCO 3870R-1 Eliminator Double Adjustable Rear Shocks, 7 Inch, Chevy/GM
  • (1) Currie 96227 9 Inch Ford 11 x 2-1/4 Drum Brake Kit, 5 on 4.5/4.75 BP
  • (1) Set of D&R Classic K00501 1967-69 Mono Leaf Spring Mounts
  • (1) Pair of Competition Engineering C2099 Slide-A-Link Traction Bars, 62-67 Nova
  • (1) Speedway Ford 9 Inch Posi Traction 3rd Member Assembly, 31 Spl, 4.11
  • (1) Currie CE-98129-27375 9 Inch Ford 31 Spline Axle Shaft, 27-3/8 Inch
  • (1) Currie CE-98132-29625 9 Inch Ford 31 Spline Axle Shaft, 29-5/8 Inch
  • (1) Speedway Fabricated Ford 9 Inch Rearend Axle Housing, 58 Inch Width
  • (1) 9 Inch Ford Rearend Axle Housing 3rd Member Pumpkin Gasket



AFCO 3870R-1 Eliminator Double Adjustable Rear Shocks

  • AFCO Eliminator Twin Tube Adjustable REAR shocks are built specifically for drag racing
  • Using advanced onboard diagnostics, AFCO developed the Eliminator Series to precisely control your race car at every point on the track
  • With the easy-to-use, repeatable "click" settings, this shock will give you unsurpassed traction
  • By allowing full control over both compression and rebound forces, Double Adjustable shocks give the tuner the ability to fine tune every aspect of the chassis movement to provide the ultimate in acceleration control and overall driveability
  • Body Mount:  Tie Bar with 2.375" bolt centers
  • Shaft Mount:  1/2" I.D. bearing (1.06")



Currie 96227 9 Inch Ford 11 x 2-1/4 Drum Brake Kit

  • ABCS standard
  • All brand new fully-loaded assemblies
  • Double drilled for 5 on 4-1/2" and 5 on 4-3/4" wheel bolt patterns
  • For use with late model large bearing (Torino) style housings
  • Complete 11" drum brake kit
  • 2.500" brake space axle
  • Drums feature a 2.800" center register hole
  • With the axle installed in the housing, the brake space is the distance from the outside of the housing end, to the outside of the axle flange



Competition Engineering C2099 Slide-A-Link Traction Bars

  • Cut half a tenth off of your 60 ft. times with a Competition Engineering Slide-A-Link traction bar
  • Their innovative telescoping design gives you two full inches of adjustability when setting pinion angle and spring preload
  • This gives you more control over front-end lift and weight transfer, so you can make quick, easy, on-car adjustments to track conditions
  • Includes:
    • Special urethane bushings that store energy to prevent unloading between shifts
    • Replacement lower axle mount pads
    • 1/2 inch U-bolts
    • Aluminum front spring eye bushings
    • Hardware
    • Complete instructions



Speedway Ford 9 Inch Posi Traction 3rd Member Assembly, 31 Spl, 4.11

  • Assembled by Professionals

Hand-assembled by trained experts in-house, our Ford 9-inch third members are built from quality components with an exact step-by-step process. We bring this combination of precision assembly and quality components to you at a price that can’t be beat. We trust these third members so much, they’re the go-to choice for our own rides, from the street to the track.

  • Tough, Nodular Iron Center Section

Our Ford 9 Inch Nodular Iron Third Member Center Section Carrier starts with a NEW casting with over 4 lbs. of additional material in critical areas. Nodular (ductile) iron is much more resistant to fracturing than OEM “gray” iron. Extra ribbing reinforces the case and rearmost pinion support (pilot bearing).

Thick, forged steel bearing caps surround the carrier bearings, all securely held in place with precision Grade 8 cap screws. The improvements continue with rugged billet steel adjuster nuts and heavy-duty keepers to ensure your ring gear settings are maintained. All mounting surfaces are precision machined to ensure a consistent, flat surface for a positive gasket seal (no more leaks on your shop floor). An oil fill plug is included.

  • Precision Assembled for Proper Ring Gear Teeth Pattern

Getting a proper pattern on the ring gear teeth is crucial. Our time-proven, step-by-step process ensures the correct backlash, preload, and proper amount of pinion shims to ensure the correct pattern on the ring gear teeth. Our gears use use cold-rolled 8620 steel, known for its long-wear and durability.

To ensure a proper gear pattern, we use a stronger “Daytona” style pinion bearing support to maintain that critical pinion depth setting. Stronger due to its larger bearings, our Daytona pinion support also uses the spacer-and-shim setup to maintain critical pinion depth settings under high load, unlike traditional crush sleeves which often compress further, take out your preload and lead to failure. With solid bearing spacers and the proper shims, we eliminate this problem and make setting preload easy and repeatable during installation, service and gear changes. Since preload is already set, simply torque the pinion nut to 160 ft./lbs. and you’re good to go. The pinion gear is connected to our new, forged steel “Ford short”, 1310-type pinion yoke.

  • Gear-Style Richmond Powertrax Grip Pro Differential

For the ultimate in putting power to the pavement, Richmond Powertrax Grip Pro Traction Systems are the latest design in traction using 3 x 2 spiral gear technology. These differentials provide smooth, dependable operation combining a limited-slip differential with the strength of a fully machined, forged steel case. Because there are no friction plates, no friction modifier additive is necessary.  Always use a 80W-90 weight petroleum based gear oil with a GL-5 (or higher) rating, friction additive/modifiers should NOT BE USED.  Synthetic oils and oils containing friction modifiers are not recommended.

Powertrax Grip Pro differentials are the ideal solution for just about any muscle car or truck on the road today. When you need that added traction so your muscle car puts power to the pavement instead of burning one wheel up, Powertrax Grip Pro limited slip differentials are your answer.

  • Latest Posi-Trac Design
  • Uses 3 x 2 Spiral Gear Technology
  • Comes Fully Assembled
  • Delivers Progressive & Variable Traction
  • Allows You to Control How Much Traction is Applied
  • Housed in a Fully Machined, Forged Steel Case



  • Proven Reliability

We run what we sell. Our third member units are the go-to choice for our own rides and we have built these units to last with high quality hardware and components. Tapered steel roller bearings minimize friction, better handle thrust loads and increase load carrying capacity. The ring gears are assembled with Grade 9 bolts with a tensile strength of 180,000 psi, a 15% increase over Grade 8 hardware.  Heavy duty Grade 8 carrier cap bolts, a lock-style pinion nut with pre-applied Loctite and high-quality grade 5 pinion support bolts make our third member near-bulletproof.

Units include a Viton® pinion seal providing long lasting oil and chemical resistance. This seal retains elasticity up to 399°F (204°C) and intermittently up to 600°F (316°C) This high temp seal helps eliminate pinion leaks, reduces maintenance and keeps the third member properly lubricated. A carrier-to-housing gasket is available separately.

Our hand-assembled Ford 9 inch third member assemblies are made-to-order. We keep a supply of the most popular gears in stock, with most units built within 2-3 days. Our third-member units are shipped in a durable, reusable poly storage case, perfect for keeping multiple gear sets stored and ready for the track.

Features

  • Hand-assembled by our trained technicians for an unbeatable combination of quality and value
  • Track-tested durability in our own cars – we race what we sell
  • Precision assembly for the correct backlash, preload, and proper amount of pinion shims to ensure the correct pattern on the ring gear teeth
  • Ring and pinion gears of 8620 cold-rolled steel for long wear
  • Nodular iron housing is stronger than OEM “gray” iron and has 4 lbs of additional reinforcement
  • Large bearing “Daytona” style pinion bearing supports for strength and reliability
  • Spacer and shim setup maintains critical pinion depth settings and easier to service than traditional crush sleeves
  • Richmond Powertrax Grip Pro spiral gear differential gives positive traction without the noise of a full locker
  • Ring gears assembled with Grade 9 hardware, 15% stronger in tensile strength than Grade 8
  • Viton® pinion seal, resistant to chemicals and high temperatures
  • Grade 8 Carrier cap bolts
  • Lock-style pinion nut with pre-applied Loctite®
  • Grade 5 pinion support bolts
  • Includes form fitted, reusable red poly storage case



Currie 9 Inch Ford 31 Spline Axle Shafts

  • Induction heat treated 1541 forged alloy
  • 31-spline
  • Fits 91046258 pumpkin centered housing
  • Fits 91047260 pinion centered housing
  • Works with New Big Ford (Torino) bearing ends
  • 2.5" brake space offset
  • 2.8" register hub
  • Dual-drilled wheel bolt pattern
  • Includes axle shaft, axle bearing, axle seal, bearing retainer, and two sizes of wheel studs (1/2"-20 Ford/Mopar and 7/16"-20 GM)



Speedway Fabricated Ford 9 Inch Rearend Axle Housing, 58 Inch Width

Looking for a budget-friendly, rock-solid foundation for your custom rear suspension? Look no further. Our fabricated steel Ford 9 inch axle housings feature all-new, USA-made components for maximum durability. It’s an evolution of the rugged and reliable 9 inch Ford platform.

  • Designed with the Builder in Mind

This housing is pumpkin-centered with uniform-length axle tubes, side-to-side. So mounting suspension brackets, especially on triangulated 3-link and 4-link systems, is much easier. Unlike factory stamped housings, these fabricated plate-steel center sections provide a wide, flat surface for easy bracket attachment. Note that the pumpkin-centered design will offset the pinion yoke about 1" to the passenger side.

Axle tubes are 3” O.D. with a 3/16” wall thickness. Heavy-wall tubes, along with a larger center section, significantly reduce distortion during welding of rear-link brackets or spring pads. Billet steel “New Big Ford” (Torino) style bearing ends are fixture-welded (3.150” O.D. bearing, with 2.50” axle flange offset).

  • Improved Design for Greater Durability

In addition to the heavy-duty bearing ends, the axle tubes are supported with bracing inside the large center housing. This reduces flex in the rear end housing, which is something you won’t find on stamped factory 9 inch housings. Plus, gears stay well-lubed and run cooler thanks to a large-capacity fabricated center (holds more gear oil than stamped housings). Axle is vented on the driver’s side.

Yet, with improved durability, our fabricated axle housing is on average 2 pounds lighter than stock style housings of the same size! Add your choice of axle shafts and third member (sold separately), and you are ready to roll. Equip your race car, hot rod or 4X4 with Ford 9 inch parts from Speedway Motors to ensure there are no weak links in your driveline combination.

Total wheel-to-wheel mounting surface width is 58" (from hub-to-hub). The pumpkin is centered in the housing, which puts the pinion 1" offset from center, requiring different length axle shafts. For this 58" housing you will need one 29-5/8" long axle and one 27-1/4" long axle. This housing includes (8) T-bolts for the axle bearing retainer plates and (10) studs for the third member.

  • Made in the USA fabricated steel center section
  • 3" O.D. axle tubes with 3/16" wall thickness
  • Axle tubes are internally reinforced for additional strength, less flex
  • Billet steel "New Big Ford" (Torino) style bearing ends
  • Accepts brake kits for 2.50" axle shaft flange offset (from housing flange)
  • Housing measures 53" from flange-to-flange
  • Assembled rearend measures 58" from hub-to-hub (axle flange face-to-face)
  • Improved design weighs only 40.5 lbs vs 42.5 lbs stock-style fabricated housings
  • Centered pumpkin w/ 1" offset pinion yoke for easy suspension mock-up
  • Greater-than-stock capacity center section holds more gear oil and runs cooler
  • Requires different length axle shafts, left/right
  • Includes vent on driver side axle tube
  • Includes studs for 3rd member and 3/8” T-bolts for bearing retainer plates



9 Inch Ford Rearend Axle Housing 3rd Member Pumpkin Gasket

  • Our reusable rear differential gaskets have a steel core and non-stick coating
  • Fits 9" Ford rear axle third member housings



Notes

Shocks:

  1. The rebound adjustment is the most critical in tuning a drag racing set-up. This adjustment allows the tuner to dial in the "un-loading action" of the chassis and keep the tires planted during the critical first 60' down the track.
  2. Double adjustable shocks are the ultimate tool in the chassis tuner's arsenal. The double adjustments of both compression and rebound dampening are completely independent - changing the setting of one has no effect on the setting of the other.
  3. Can be used as a coil-over shock with 106-20135D coil-over hardware kit (purchase separate).
  • Lightweight aluminum construction also helps dissipate heat
  • Rebound settings are adjusted via a shaft-mounted knob with 32 clicks
  • Compression settings are adjusted via a body-mounted know with 32 clicks
  • Smooth, Ultra Low Friction rod guide
  • Low resistance allows internals to function to their fullest potential
  • Almost no "stiction" to interfere with putting the power down
  • Coil-over Ready w/ purchase of kit 106-20135D



3rd Member:

Because there are no friction plates, no friction modifier additive is necessary.  Always use a 80W-90 weight petroleum based gear oil with a GL-5 (or higher) rating, friction additive/modifiers should NOT BE USED.  Synthetic oils and oils containing friction modifiers are not recommended.

Gear lube recommendations :

910-44090 - For street and every day driving under normal conditions



Axles:

When utilizing an aftermarket axle with disc brake conversion kits, it may be necessary to reduce the diameter of the axle flange to a diameter necessary to adequately fit inside the required Clearance I.D. that the brake hat/brake rotor will require.  (see above diagram for illustration)



Warranties

No warranty is offered or made for durability or specific performance. No warranty is offered for commercial, off road, street performance, or racing use.



Charts

Axle Flange Identification Chart (GIF)

Installation Instructions

3rd Member Instructions (PDF)

How to Measure Your Housing (JPG)



Important Messages

  • This item 9109543 is made to order. It will be shipped from our warehouse when it is produced.
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • AFCO 3870R-1 Eliminator Double Adjustable Rear Shock, 7 Inch, Chevy/GM
    Qty x 2
  • Currie 96227 9 Inch Ford 11 x 2-1/4 Drum Brake Kit, 5 on 4.5/4.75 BP
    Qty x 1
  • D&R Classic K00501 1967-69 Mono Leaf Spring Mounts
    Qty x 1
  • Competition Engineering C2099 Slide-A-Link Traction Bar, 62-67 Nova
    Qty x 1
  • Speedway Ford 9 Inch Posi Traction 3rd Member Assembly, 31 Spl, 4.11
    Qty x 1
  • Currie CE-98129-27375 9 Inch Ford 31 Spline Axle Shaft, 27-3/8 Inch
    Qty x 1
  • Currie CE-98132-29625 9 Inch Ford 31 Spline Axle Shaft, 29-5/8 Inch
    Qty x 1
  • Speedway Fabricated Ford 9 Inch Rearend Axle Housing, 58 Inch Width
    Qty x 1
  • 9 Inch Ford Rearend Axle Housing 3rd Member Pumpkin Gasket
    Qty x 1

More Like This

Reviews

Q & A

Videos & Articles
  • Here's a handy guide to familiarize you with our G-Comp line of performance suspension systems.
  • Do you need a Panhard Bar on your front suspension? Find out whether its recommended to have one on your four-bar or cross steering system.

You May Also Like

Error
X
Note
X
Ok
