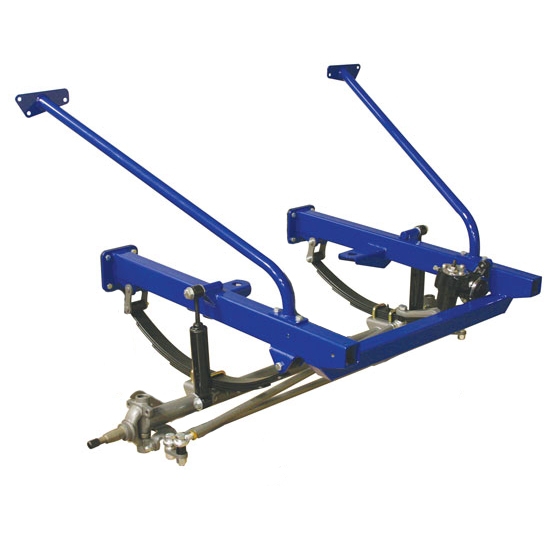

1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes

1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes

62-67 Chevy Chevy II

0 Reviews | 0 Answered Questions
On Backorder
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
X
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
1962-67 Chevy II Gasser Complete Deluxe Subframe Kit w/Brakes
Zoomed In Image
Part # 9109541
$2,843.99
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • Allows you to easily turn your 1962-67 Chevy II into a gasser for that old school drag racer look
  • Heavy Duty version features a thicker axle, premium shocks, steering box, and Wilwood brake calipers, with steel upper fender braces for added support
  • Comes with frame mounts installed for small block, big block, and LS series engines
  • For 5 on 4.75" bolt pattern
  • Kit includes 11" rotors, GM Metric calipers, bearings, spindle nuts, dust caps, brackets, and hardware

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Sold in Quantity:
Kit

Info

Want to see a LIVE install of this exact subframe kit? Follow along as we team up with Car Craft to transform a 1967 Chevy II into a gasser in just 5 days. Check out the build here.

  • Heavy Duty version features a thicker axle, premium shocks, steering box, and Wilwood brake calipers, with steel upper fender braces for added support
  • This kit will give your Chevy II Nova that 60s nose in the air look while still allowing it to be driven comfortably and safely on the street
  • No cutting or grinding is necessary with these gasser subframes for your 1962-67 Chevy II Nova
  • These direct, bolt-in front ends use all the same stock holes that held the original IFS subframe, which includes sturdy upper firewall support tubes from the subframe rails
  • This adds strength to the subframe structure and supports the 8-bolts that hold the lower rails to the “chassis”
  • The firewall support tubes bolt directly to the firewall using existing factory holes
  • These leaf-spring suspensions include everything you'll need to install it into a stock Chevy II Nova chassis in a weekend
  • Comes with frame mounts installed for small block, big block, and LS series engines
  • Parallel leaf spring assembly bolts to subframe and supports tube axle
  • Springs are heavy enough to support big block applications
  • Equipped with Vega steering box and cross-style steering
  • Urethane bushings to withstand the punishment of today's streets while providing a comfortable ride
  • Subframe Kit includes:
    • Subframe assembly
    • Leaf springs
    • Spindles
    • Competition Engineering Shocks
      • 3-Way Adjustable Drag Shocks are designed to allow the racer to dial-in the race car to meet changing track conditions
      • The principle behind Competition Engineering's shock absorber design is to allow the front end of the race car to rise rapidly upon initial launch, creating greater weight transfer and better traction to the rear tires
      • As the car travels down the track, the front end will gradually descend to its ride height without unloading the rear tires which is a major cause of wheel spin
      • Adjustable in three ratios: 90/10, 80/20 and 60/40
      • These ratios reflect the percentage of force required to extend and compress the shock absorber
      • Quickly change the valve setting by simply compressing the shock fully and rotating the shaft until the indexing notch mates with the desired setting on the body - It’s as simple as twist and click
      • Monotube design
    • Heavy Duty Axle
      • 28% stronger, 19% stiffer, 28% heavier
      • .375” wall thickness, 1026 DOM steel tubing (std axle is .25” wall)
      • Recommended for off-road / drag race applications
      • No drop, straight axle only
    • Flaming River HD Vega steering box
      • Manufactured from aircraft steel alloy
      • Durable cast iron and machined steel construction will give years of high-mileage service
      • New needle bearing design
      • Crowned sector provides higher torque at center position reduces vibration and provides for more natural return of steering wheel
      • 30% stronger worm and nut
      • 30% stronger sector
      • Bigger gears
    • Steering arms
    • Tie rod and drag link
    • Steel Upper Fender Supports
      • For 1966-1967 Chevy II/Nova with G-Comp suspension
      • Not for use with stock suspension
      • Heavy steel construction
  • 56-1/2" track width with Speedway disc brake kit and a 48" axle
  • Welding of spring pads to axle will be required
  • Complete front disc brake kit included features:
    • 11" rotors
    • Wilwood GM metric calipers
      • The calipers are strong and precise
      • The stainless steel pistons resist corrosion while helping to slow the heat transfer from the pads
      • The high temperature seals provide long service life when used in hard braking applications and maintain their resilience to provide positive piston retraction on release
      • The bleeder and inlet are both 10mm-1.5 which allows you to run these calipers on either side
    • Bearings, spindle nuts, dust caps, brackets, and hardware
    • 5 on 4.75" bolt pattern


Notes

Motor Mounts:  The subframe comes with frame mounts installed for small block, big block, and LS series engines. Block mounts that mate with the frame brackets are available for all three. S/B and B/B Chevy # 910-18058 block mounts are suggested.  For the LS series engine, 910-18058 plus adapter plates # 916-18016 are suggested. Note: When installing a Big Block Chevy engine, modification for clearance purposes of the firewall will be required and/or relocating the frame engine mounts forward will also be necessary.

Spring Rating:  The springs are heavy enough to support a big block and can be softened by removing one leaf if required for lightweight aluminum small block / LS applications.

Track Width:  Track width for these subframe kits is 56-1/2" with Speedway brake kits and a 48" axle.

Bushings:  Leaf spring bushings are urethane to withstand the punishment of today's streets while providing a comfortable ride.

Suggested Headers:  For small block applications, we offer our part numbers (930329) plain or (930329H) coated headers.



Charts



To learn more about the Gasser subfame be sure to check out Super Chevy magazine's article 1962 Chevrolet Nova Gasser Front Subframe Install to Get that Old-School Look.


Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • 2 Inch Offset Vega Pitman Steering Arm, Drilled for 5/8 Inch Bolt,Zinc
    Qty x 1
  • Speedway 1949-1954 Chevy Car Modified Spindles w/ King Pins
    Qty x 1
  • Adjustable Steering Stop For 1949-54 Chevy Spindle
    Qty x 1
  • Flaming River FR1500 Vega Steering Box
    Qty x 1
  • Replacement Nylon Shackle Bushings, 1-3/4 Inch Spring
    Qty x 1
  • Heavy Duty Gasser Straight Axle, 48 Inch, Chevy
    Qty x 1
  • Competition Engineering C2615 Adjustable Drag Shock, Chevy Truck
    Qty x 2
  • Spindle Nut Kit for Speedway 49-54 Chevy and 1953-82 GM Spindles
    Qty x 1
  • Speedway Gasser-Style Front Suspension Leaf Spring, 450 Lb/Inch Rate
    Qty x 2
  • 34 Inch Plain Steel Hod Rod Tie Rod/Drag Link Sleeve for 5/8-18 Ends
    Qty x 1
  • 48 Inch Plain Steel Hod Rod Tie Rod/Drag Link Sleeve for 5/8-18 Ends
    Qty x 1
  • Ackerman Gasser Steering Arm, Left Hand Side
    Qty x 1
  • Ackerman Gasser Steering Arm, Right Hand Side
    Qty x 1
  • Tie Rod Hardware
    Qty x 2
  • Plain U-Bolts, 1-3/4 Inch
    Qty x 2
  • Shackles with Bushings
    Qty x 2
  • Spring Perch
    Qty x 1
  • Spring Perch
    Qty x 1
  • Nova Gasser Hardware Kit
    Qty x 1
  • Subframe Weldment
    Qty x 1
  • 1962-1967 Nova Support Tubes
    Qty x 1
  • G-Comp 1966-1967 Chevy II/Nova Steel Upper Fender Supports
    Qty x 1
  • Wilwood 120-8924 D154 GM Metric Iron Single Piston Floater Caliper
    Qty x 2
  • Speedway GM Brake Caliper Slider Slide Bolt
    Qty x 4
  • 11 Inch Mustang II Rotor with GM 4.75 Inch Bolt Circle, Metric Caliper
    Qty x 2
  • Wheel Dust Caps, Plain, 1.786 Hub I.D.
    Qty x 1
  • GSSR Brake Kit Hardware
    Qty x 1
  • Brake Bracket for Nova Gasser
    Qty x 1
  • Brake Bracket for Nova Gasser
    Qty x 1
  • Pinto Seal, 1.875 x 2.5 x .31
    Qty x 2
  • Wheel Bearing Outer Cone, 3/4", Steel
    Qty x 2
  • Inner Wheel Bearing Cone
    Qty x 2
  • Speedway Soft Street Brake Pads, GM Metric 1978-Up D154
    Qty x 1
  • Rubber Brake Line Hose Set for 7/16 Inch-20 Calipers
    Qty x 1
  • Speedway Removable Brake Line Retaining Tab for Rubber Hose
    Qty x 1

More Like This

Reviews

Q & A

Articles
  • Visit the Toolbox

    The Toolbox is Speedway Motors' hub for professionally written articles.

  • When it comes to a traditional style build on an early hot rod it just has to be rolling on a solid front axle of some sort. In this buyer's guide we take you through I-beam and round tube solid axles, spindle choices, radius rod needs, and more.

You May Also Like

Error
X
Note
X
Ok
