1960-72 C10 3 Inch Front / 5 Inch Rear Drop Lowering Kit
60-72 Chevy C10 Pickup, 1967 Chevy C10 Panel, 67-72 GMC C15/C1500 Pickup, Steel, Powder Coated
- Lowering kit is specifically designed for the 63-72 C/10 chassis
- Provides approximately 3" drop in the front and 5" in the rear
- These springs offer modest lowering and proper spring rate for both S/B and B/B six-cylinder and V8 pickups
- Rear coils are designed to lower your truck, while still maintaining a proper spring rate to keep your suspension from bottoming out
- Retainer kit comes with four retainers and hardware to keep your rear coil spring in place
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
These are lowering kits that will lower your 63-72 C/10 chassis just a little bit or put it in the weeds. Inches of drop are approximate and vary with car and engine weight.
1963-72 Chevy Pickup Front Lowering Coil Springs, 3 Inch Drop
Replace your worn-out springs and lower your truck at the same time with these lowering springs. These springs offer modest lowering and proper spring rate for both S/B and B/B six-cylinder and V8 pickups.
These front springs have an 1100 lb. rate.
Rear Springs 1960-72 Chevy Truck 5 Inch Drop
These rear coils are designed to lower your truck, while still maintaining a proper spring rate to keep your suspension from bottoming out. They work great on six-cylinder and V8 trucks, but may not be suited for panels, Suburban or heavy-duty towing applications.
The manufacturer says that this spring has the same "rate" as the stock spring, app. 300 lbs.
1960-72 Chevy Pickup Coil Spring Retainers
Mother Nature tends to take a toll on spring retainers. So Speedway is now offering rear coil spring retainers for 1960-72 Chevy pickups. This kit comes with four retainers and hardware to keep your rear coil spring in place.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

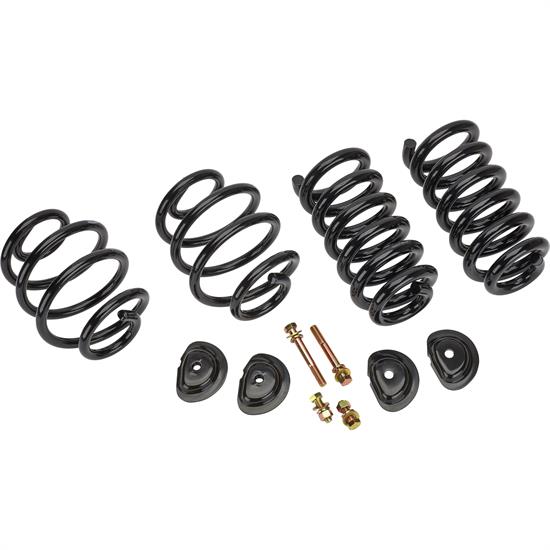

What's In The Kit
1963-72 Chevy Pickup Front Lowering Coil Springs, 3 Inch DropPart # 91006103Qty x 1
Rear Springs 1960-72 Chevy Truck 5 In Drop/1967-72 Chevelle 3 In DropPart # 91006035Qty x 1
1960-72 Chevy Pickup Coil Spring RetainersPart # 9106072Qty x 1
