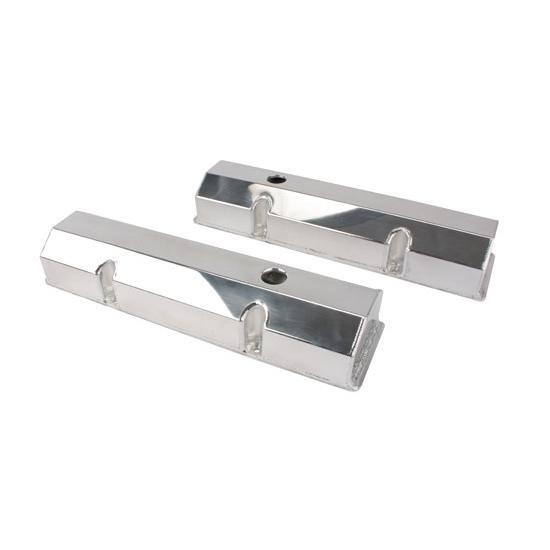

1960-1986 Small Block Chevy Fabricated Valve Covers w/ Holes

1960-1986 Small Block Chevy Fabricated Valve Covers w/ Holes
Chevy Small Block V8, Aluminum, Polished, Baffled
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle



1960-1986 Small Block Chevy Fabricated Valve Covers w/ Holes
X


Details
Reviews
Q&A
Videos & Articles
- Features a single baffled 1-1/4" hole for PCV or oil fill
- Can be painted, polished, or left in bare aluminum finish
- Fits 1960-1986 Small Block Chevy 283-400 c.i. V8
- Length 19.50", width 5.13", height 3.75"
- Grommets & hardware not included
Details
Material Type:
Aluminum
Finish:
Polished
Baffled:
Yes
Overall Length:
19.50"
Overall Height:
3.75"
Overall Width:
5.13"
Depth:
2.375"
MFG. Part #:
91017129
Sold in Quantity:
Pair
Info
Whether you're going for the hardcore race look or just trying to save weight, these fabricated aluminum valve covers are for you! Each cover comes with a single baffeled 1-1/4" hole for PCV or oil fill. Can be painted, polished, or left in bare aluminum finish.
Fits 1960-1986 Small Block Chevy 283-400 c.i. V8.
Grommets & hardware not included. Use a 1-1/4" grommet.
Specs
- Overall Height: 3-3/8"
- Overall Width: 5-1/8"
- Overall Length: 19-1/2" (including mounting flange)
- Approximately 2" up on sides, the valve cover is beveled inward at about 45 degrees
- Top-most flat surface is 2" wide
- 2-3/8” from the mounting surface to the bottom of the baffle
- Breather Hole: 1-1/4"
Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
