1955-57 Big Block Chevy 396-502 Chassis Headers, AHC Ceramic Coated
1955-57 Big Block Chevy 396-502 Chassis Headers, AHC Ceramic Coated
Speedway Motors

|

#930C8H

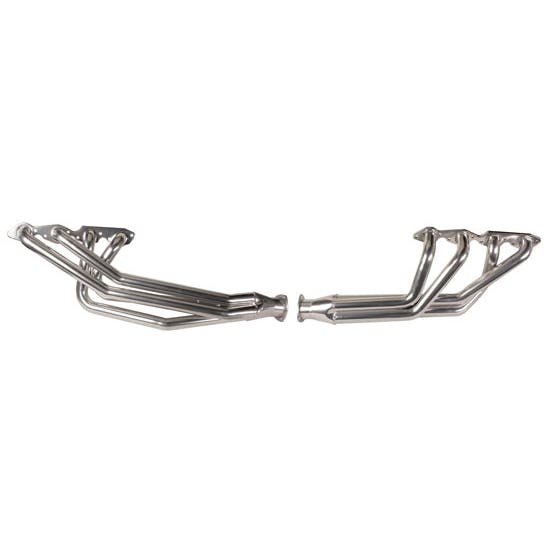

1955-57 Big Block Chevy 396-502 Chassis Headers, AHC Ceramic Coated

  • Will fit '55-'57 Chevy big block 396-502
  • Steel construction, ceramic coated
  • 3" collector
See More

Finish:

Silver Ceramic

Plain

$563.99

/set

On Backorder

This part is Backordered. We currently do not have an estimate when this item will ship.

Get something sooner

Browse In Stock and Ready to Ship Alternatives

Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle and engine to verify Fitment

Select Vehicle

Select Engine

Product Summary

Chassis Header Tube Type, Round Exhaust Port Shape

  • Will fit '55-'57 Chevy big block 396-502
  • Steel construction, ceramic coated
  • 3" collector
  • Offers maximum ground clearance
  • Armor Hot Coat® is a Speedway Motors custom ceramic heat proof coating that will keep the finish of these headers looking great for years to come
See more details

Key Specs

MFG. Part #930C8H
Header Tube TypeChassis
Exhaust Port ShapeRound
Flange StyleStandard
Primary Tube Diameter1-7/8"
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Liquid/Compound Return Policy

For health, safety, and product integrity reasons, only unopened, sealed items are eligible for return or credit.

Return Policy

Speedway Motors 930C8H Details

Classic Chevy owners will love these big block V8 chassis headers for 1955-1957 cars.  They have 34"-36" primary tubes for lots of power, but they're tucked close to the body for maximum ground clearance.  The manufacturer says that they won't work with manual transmissions due to clutch linkage issues!  These headers are finished with our Armor Hot Coating.

  • Quality steel construction
  • Mid-length design offers maximum ground clearance, even if car is lowered 4"



Armor Hot Coat® (AHC) is a heat resistant, ceramic coating applied to the outside of the header. This coating will reflect heat, which helps retain more heat within the header tube while simultaneously speeding up the exhaust flow. Not only will this coating help you make more horsepower, it also keeps your headers rust-free, looking great, and lasting longer (when properly maintained). If you are looking for a show-quality finish for your headers, this is it! Our AHC will withstand exhaust temperatures of up to 1300¢ª F.

Application

  • Fits automatic transmissions
  • The manufacturer says that they won't work with manual transmissions due to clutch linkage issues!
  • Designed to work with 605 power steering box
  • Will not work if engine is set forward more than 3/4" for firewall/HEI distributor clearance
  • Won't fit tall-deck (truck) blocks
  • Needs aftermarket side mounts and a rear trans crossmember (rather than stock bellhousing mounts)

Charts

Warranty Information

Click for details

These headers do not fit angle-plug heads. The manufacturer says they will not work with 168-tooth flywheels or with some aftermarket-style starters. They will not work on side-style engine mount conversions that move the engine forward for distributor clearance.

AHC Warning: AHC coatings will burn and be damaged at exhaust temperatures over 1300 degrees. A lean fuel mixture can generate exhaust temperatures exceeding 1700-1900 degrees. If the coating is damaged due to a lean condition, the coating will not be warranted, but can be recoated for a fee.

Not legal for sale or use in California on pollution controlled vehicles



CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
CA Prop 65
CARB warning

Speedway Motors 930C8H Specifications

KEY SPECS
MFG. Part #930C8H
BrandSpeedway Motors
Header Tube TypeChassis
Exhaust Port ShapeRound
Flange StyleStandard
Primary Tube Diameter1-7/8"
Material TypeSteel
ColorSilver
Weld-UpNo
Collector Diameter3 Inch
FinishCeramic Coated
Hardware IncludedYes
Gasket(s) IncludedYes
Collector Reducers IncludedYes
Collector Reducer Exit Diameter2.5"
Collector Attachment Type3-bolt flange
GENERAL
Sold in QuantityPair
NotesIncludes a pair of reducers (3.00" to 2.50")
Collector Length5.75"
Flange Thickness0.38"
Port Height1.93"
Port Width1.93"
Drivers Side Dimension A10.1"
Drivers Side Dimension B13"
Drivers Side Dimension C35.38"
Passenger Side Dimension A9.9"
Passenger Side Dimension B14.35"
Passenger Side Dimension C41.13"

Ratings & Reviews

3.8

6 Reviews

Overall Assessment

Customers recommend our headers for their superior quality of finish, practicality, and use of heavy-gauge steel. Many appreciated that they come with great road clearance and can be tucked up high after removing the frame horns. The headers' excellent fit, particularly in bigger engine blocks, was praised. They provide more road clearance than the comparable Hooker Super Competition range. However, some customers did note they needed to modify the tubes for optimum fit. A unique selling point is the headers' ability to accommodate car height adjustments, as they sit close to the frame, providing enhanced customization options. This feature sets them apart from many competitors. A one-off issue raised was that it may affect the starter when used with a larger flex plate, but most customers find the quality and price still make them a worthwhile purchase.

Write A Review

3.8

6 reviews

5

3

4

1

3

1

2

0

1

1

Filter by Ratings

I would not buy these again

1.0

9 years ago

Jay

Carmichael, Ca.

Verified

These headers don't come close to fitting. Tried passenger side first, hit the upper a-arm, went ahead and hammered a flat spot in it to make it clear, not happy about it. Went to drivers side, header didn't even come close to fitting, now I own them and can't send them back. These are a cheap copy of Patriot headers. Went ahead and bought a set of Patriots and they went right in with no problems.

Would Not Recommend

These headers look of top quality.

5.0

10 years ago

55 Chevy nut

Kearneysville, W.V.

Verified

The finish on these things are great, not 1 nick or scratch. Great job Quality control and Packaging team!! I cant wait to get these babies on my 396 and fire it up!

Would Recommend

Looks Great! - Can't Wait!

5.0

10 years ago

Tony Botchagaloop

TN

Verified

With the price I figured I'll be happy with them, you know ... for the price. Didn't have high expectations. Speedway came through on these headers! I couldn't believe how heavy gauge steel is used on the tubes and on the flange. They are way better than my old name brand headers. Had a test fit and things look good. Can't wait to try them out! Keep in mind the warning about not fitting with the 168 tooth flywheel/flexplate, it's not the plate it doesn't clear, it's the starter in that position. I'm going to try a certain brand high torque mini starter and see if it clears. If it doesn't, then I'll dent 1 tube. My old name brand headers I had to dent 4 tubes much worse than these. They look great too, I can't wait for the final installation and of course the testing! A very happy customer!

Would Recommend

Quality is way up there!

4.0

10 years ago

Tony Botchagaloop

TN

Verified

I haven't had the chance to run these yet so I can't comment on performance, even when it is up and running, I'm doing other engine mods so won't be able to comment on the header performance with so many different variables. The greatest thing about it is the heavy gauge tubes and flange. I don't know what gauge the tubes are but from looking into the collector, they are much heavier than the Hookers they are replacing. They tuck up high after removing the frame horns. WAY BETTER than the Hooker super competition that gave me only 3.25" road clearance at over factory height. The one very misleading thing is in the description. It says it won't work with a 168 tooth flywheel? Well how the heck would it hit that without hitting the turbo400 tranny? The answer is that they will hit *the starter* when using the larger flex plate. And by the looks of it, I think I can get a small starter that will clear. If not I'll hammer it in a little. These are just too good for the price!

Would Recommend

55-57 BBC headers

3.0

10 years ago

J2X Customs

Choctaw OK

Verified

They look great! The fit is just ok. I had to dent multiple tubes on both sides for clearance. I even ordered the recommended motor mounts from Speedway. I also had to clearance the firewall. Overall they worked and look good.

Would Recommend

Great Parts that work well!

5.0

12 years ago

zmandet

Detroit, MI, USA

These headers work very well in my 1955 Chevy, Big Block, The vehicle has rack and pinion steering, side mounts (standard location) They do require the removal of the frame horns for the bell housing style stock mounts. I used the rear crossmember and side mounts anyway! These headers allow your car to sit as low as you would want as the headers and exhaust are tucked right up next to the frame!

Would Recommend

Showing 6 of 6 reviews

Questions & Answers

3 Questions • 3 Answers

I just ordered the Patriot headers 930C8H. Do the gaskets and mounting bolts come with the headers?

by Bob

• 7 years ago

1 answer

View Answer

WILL THESE HEADERS FIT WITH STOCK STEERING BOX?

by PETE

• 11 years ago

1 answer

View Answer

will this set work with motor moved 3/4 forword 1955 210

by modified 8

• 15 years ago

1 answer

View Answer

3 of 3 questions shown
