Product Summary

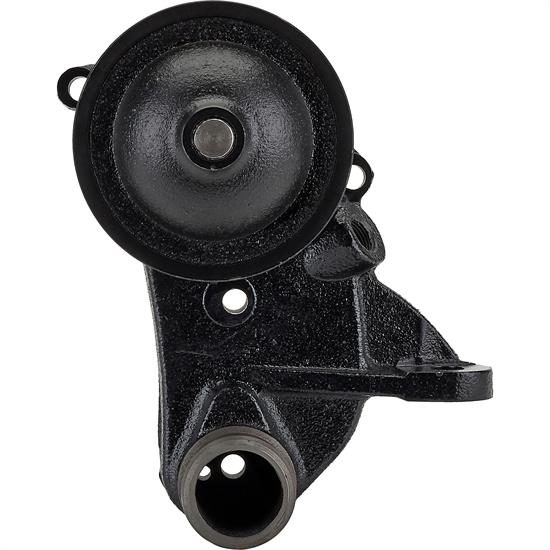

Mechanical Water Pump Type, Short Water Pump Style

  • All new water pumps to replace your leaking, worn out or stuck water pumps on 1949-53 Ford Flathead
  • Designed for use with 5/8" belt drive system
  • Severe-duty roller and ball bearings for durability
  • Ceramic seals on sturdy 3/4" shaft for longevity
  • Updated high-flow modular impeller reduces cavitation for improved cooling performance

Key Specs

MFG. Part #
BrandSpeedway Motors
Water Pump TypeMechanical
Water Pump StyleShort

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

Original flathead water pumps have always suffered from unreliable bronze bushings and carbon seals. They almost always leaked and even Ford manuals warned mechanics not to tighten fan belts too tight. The excess slack allowed belts to slip and lose contact with the generator and water pump pulleys, causing more cooling and power problems.

Speedway's completely new water pumps feature severe-duty roller and ball bearings, close tolerances and modular impellers to provide maximum flow and reduce cavitation. They also have modern ceramic seals on a heavy duty 3/4" shaft, making the assembly exceptionally strong and more efficient.

Note: This water pump is for 1949-1953 engines in 1948-1952 pickups or 1932-1948 cars.

  • Designed for use with 5/8" belt drive system
  • Severe-duty roller and ball bearings
  • Ceramic seals on sturdy 3/4" shaft
  • High-flow modular impeller reduces cavitation
  • Includes gasket and a connection for the heater hose return

Item Details

For Wide Belt Application, Gaskets Included

Application

  • Used when swapping 1949-1953 engine into 1932-1948 Ford and Mercury cars and trucks
  • Also used on stock 1949-1953 Ford pickup applications

Charts

Specs


Warranties

Attempts to pull or press pulley will void warranty.

Specifications

KEY SPECS
MFG. Part #
BrandSpeedway Motors
Water Pump TypeMechanical
Water Pump StyleShort
GENERAL
Pulley Type CompatibilityV-Belt
Pulley Diameter4.38"
Groove Count1
Belt Width0.63"
Housing MaterialSteel
Housing FinishPainted
Housing ColorBlack
Mounted Length4.75"
Heater Outlet Size3/8" NPT
Overall Length5.38"
Overall Height9.00"
Gasket(s) IncludedYes
Hardware IncludedNo
Sold in QuantityEach
Notes2-3/4" from back edge of pulley to mounting surface.
