1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper

1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper

Front Position, 5 on 4.75" Bolt Pattern, 11 Inch Rotor Diameter, Vented Rotor Type, Natural

33 Reviews | 21 Answered Questions
On Backorder
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
X
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
1937-48 Ford Spindle Disc Brake Kit, 5 on 4-3/4, Big GM Caliper
Zoomed In Image
We estimate this item will ship on or before September 1st.
Part # 91031942
$327.99
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • Easily installs 11" rotors and 1969-1977 GM "Midsize" calipers to your '37-'48 Ford passenger car spindles or '37-'47 Ford pickup spindles for increased stopping power
  • No machine work needed on square back spindle. Minimal modification on round back spindles
  • Includes new rotors and semi-metallic pads, new bearings and seals, new caliper bolts and calipers, along with caliper mounting brackets, bushings, hardware, and hoses
  • GM 5 x 4-3/4 inch bolt pattern rotor with 2.78-inch hub OD
  • Works with bolt-on steering arms or stock arms

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Position:
Front
Bolt Pattern:
5 on 4.75"
Rotor Diameter:
11 Inch
Rotor Type:
Vented
Caliper Pistons:
One
Caliper Finish:
Natural
Color:
Natural
Parking Brake Provision:
No
MFG. Part #:
91031942
Bore Size:
2.8125"
Minimum Recommended Wheel Diameter:
15 Inch
Bolt Hole Pattern:
5x4-3/4
Rotor Thickness:
1.05"
Rotor Shape:
Round
Stud Diameter:
.44"
Stud Length:
.80"
Thread Pitch:
7/16"-20
Centerline of Holes:
7.00"
Finish:
Natural
Hardware Included:
Yes
Sold in Quantity:
Kit
Front Suspension Type:
Straight Axle
Rotor Material Type:
Cast Iron
Front Rotor Included:
Yes
Front Rotor Diameter:
11 Inch
Rear Rotor Included:
No
Front Caliper Included:
Yes
Front Caliper Piston Quantity:
1
Front Caliper Finish:
Natural
Rear Caliper Included:
No
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No
Brake Hose Material:
Rubber
Brake Hoses Included:
Yes

Info

  • Works on all 1937-1948 car and 1937-1947 truck spindles
  • Brake kit fits 1942-1948 square back style spindles with zero modifications
  • Also fits 1937-1941 round back style spindle with minor grinding of the spindle
  • This kit works with both cast in and bolt-on steering arms without issue
  • Will work with Speedway Motors spindles if clearance is provided
  • Disc brake style wheels are required for proper caliper clearance when upgrading from drum brakes
  • Single 2-13/16-inch piston GM-style "Midsize"calipers use commonly available replacement pads
  • Street friendly organic brake pad compound for long pad and rotor life
  • Performance brake pad upgrades available separately for those wanting increased stopping power
  • Includes everything you need to convert from drum to disc brakes with all new parts
  • 11-inch vented rotors create superior stopping power to drums, especially for heavier cars
  • Rotors feature standard GM 5 on 4-3/4 wheel stud bolt pattern

Add Disc Brakes to Your Straight Axle Hot Rod with Bolt-On Ease

We understand that the traditional straight axle hot rodder is going to want to keep the look of early Ford brakes and their finned drums on their Model A or 32 roadster if at all possible. However, we know there is a large base of builders that want their classic looks but with modern handling, braking, and comfort. Face it, if your hot rod is a miserable ride that will not stop you are not going to want to drive it. We get it. For those enthusiasts, a small amount of leeway in their hot rod's traditional looks is acceptable to make it a fun long-distance cruiser that can be safely operated in today's traffic. One of the top safety upgrades we see is updating these straight axle hot rods with front disc brake kits. Speedway Motors offers several complete disc brake conversion kit options with everything you need to get the job done on your spindles, and if you do not have spindles for your hot rod straight axle setup, well, we have those as well!

Everything You Need and Everything New

Time is our most precious commodity and something that we cannot ever obtain more of. So why waste your valuable time scouring parts stores, junkyards, and Internet forums for DIY "piece it together"disc brake conversion solutions that will only cause you frustration in the garage and lead to further delays and parts searching? Speedway Motors, a leader in street rod parts, understands how important your time is, which is why we have done all the time sensitive research and parts sourcing to build the most complete Model A brake upgrade with our straight axle drum to disc brake conversion kit package for early Ford spindles that works, is easy to install, and does not require you to mortgage a kidney just to buy it!

Our disc brake kit features 11-inch vented rotors that are paired with the popular 1969-1977 GM "Midsize"single piston disc brake caliper. These calipers use a 2.8125 (2-13/16-inch) diameter piston and offer excellent stopping power in a floating caliper design. We include standard organic brake pads, but the caliper can be upgraded with any D52 performance pad of your liking should you desire a bit more pad "bite"in your system. Also included in our kit are new brake fluid hoses, bearings, seals, dust caps, and all mounting hardware. This brake kit will add 8-1/4 inches overall to your straight axle's center-to-center distance of your king pins. Meaning, if you are running a 48-inch axle, your overall width once installed will be 56-1/4 inches. This may be more or less than your current setup depending upon current brake package and wheel spacers. This kit requires a minimum of a 14-inch "disc brake" wheel, however we recommend a 15-inch wheel with a 2.80-inch hub I.D. that is lug-centric for proper clearance.

The caliper mounting brackets provided fit '37-'48 Ford spindles and are quite stout to prevent any caliper flex during hard braking. They are direct fit to the 1942-1948 "square back"Ford spindles. If you have the earlier 1937-1941 Ford "round back"spindles this kit will still fit with some minor clearance work to the spindle to allow the caliper to properly seat to the caliper mounting bracket and not bind up. And if you do not have any spindles at all for your project that is not a problem either, as we offer a beautiful set of forged Ford round back spindles that include new king pins with installed bushings to help you finish your project (they will need the same minor modification just like original spindles). Do not forget your steering arms too, especially if you are using a drop axle, as aftermarket steering arms will save a lot of time and frustration in this regard.

An Easy DIY Installation You Can Complete in Your Home Garage

We have included everything you will need in our Ford straight axle disc brakes conversion kit, right down to the spindle nut with retainer and cotter pin, new bearings, brake hydraulic hoses, and more. With such a complete kit you will have your hot rod's front brakes upgraded and back on the road in no time. The included inner bearing adapter that fits over the spindle requires a small press for installation (or you can heat it up to allow expansion and slip it on that way) and you will need to replace the inner bearing race in the included disc brake rotor with the new race provided. While there are several methods to install the supplied bearing race, the easiest way is with a bearing race and seal driver. It is a very handy tool for removing and installing bearing races and bearing seals. Everything else in the kit will install with traditional hand tools any hot rodder will surely have in their toolbox.

The included brake hoses feature a 7/16-20 thread banjo bolt with sealing washers for the caliper end and standard 3/8-24 inverted female flare for the frame end and your 3/16-inch brake hard line. These brake hoses are 18 inches in length and should work for most applications. However, if you need a different length brake hose to clear four-link style front ends or prefer an AN hose with through-frame fluid line adapters, we have plenty of brake hose options available to suit your specific build style and clearance requirements. Adding disc brakes to your pre-war straight axle hot rod has never been easier thanks to Speedway Motors and the value you get for your money means more budget left over for those T-bucket parts you need!

Notes

  • When using this kit on a 1937-41 Ford spindle (original or reproduction), a small portion of the spindle edge (approx. 1/4" x 1") must be ground away to allow the caliper to fit all the way into the bracket.

Charts

910-31942 Instructions (PDF)

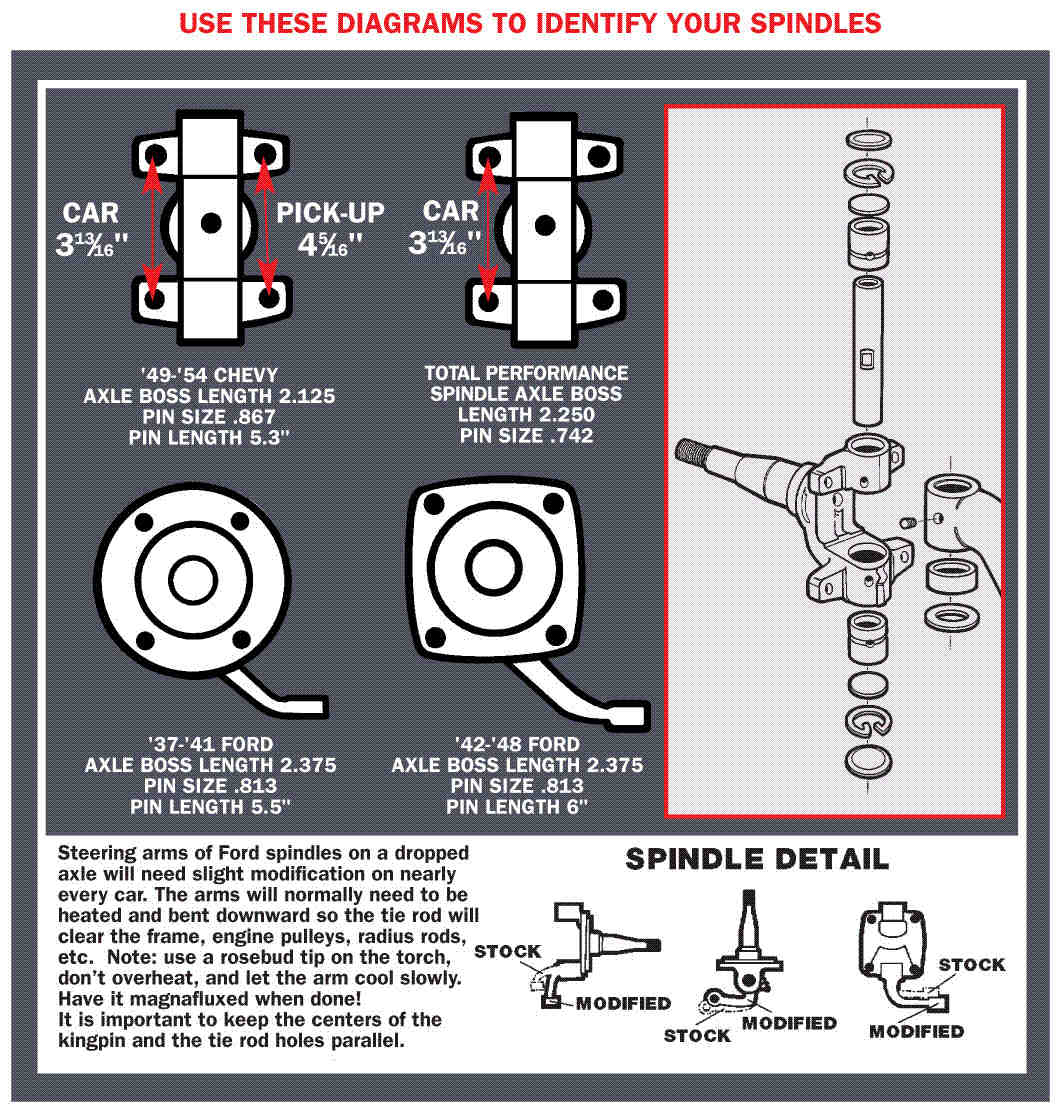

Early Ford and GM Spindle Identification Chart (GIF)

Notes

Required diameter for wheel clearance is 12.6". Spindle centerline to outboard caliper side is 6.3".

Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Disc Brake Bracket Kit for 1937-48 Ford Spindles, Big GM Caliper
    Qty x 1
  • 1969-1972 GM Midsize 11 Inch Brake Rotor, 5 on 4 3/4 Inch
    Qty x 2
  • IMCA 1969-77 Midsize Standard Stock GM Caliper, LH
    Qty x 1
  • IMCA 1969-77 Midsize Standard Stock GM Caliper, RH
    Qty x 1
  • Speedway Soft Street Organic Brake Pads GM Mid-Size 1969-1977
    Qty x 1
  • Wheel Bearing Outer Cone, 3/4", Steel
    Qty x 2
  • 1937-1948 Ford Spindle Castle Nuts
    Qty x 1
  • Front Disc Brake Hardware Kit
    Qty x 1
