1937-39 Chevy Car Master Cylinder & Frame Rail Mount
Frame Position, Disc/Drum Brake System Type, Reverse Master Cylinder Mount Type
- The ideal combination for a clean and simple 1937-1939 Chevy passenger car brake system
- The 1" bore master cylinder is suitable for 4-wheel disc or disc/drum brake setups
- The bracket can be bolted or welded to the left frame rail (boxed or stock)
- Kit includes a dual feed master cylinder, frame bracket, steel pedal arm that can be easily modified for driver comfort
- Kit includes hardware
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
The ideal combination for a clean and simple 1937-1939 Chevy passenger car brake system. The 1" bore master cylinder is suitable for 4-wheel disc or disc/drum brake setups. The bracket can be bolted or welded to the left frame rail (boxed or stock).
Kit includes a dual feed master cylinder, frame bracket, steel pedal arm that can be easily modified for driver comfort and hardware.
Item DetailsFrame Rail Pedal Mount
916-31939 Instructions (PDF)
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

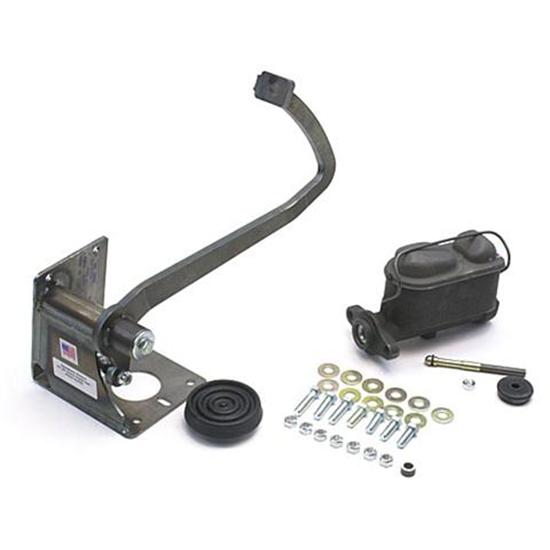

What's In The Kit
Brake Pedal 1939-37 Chevy Car FramePart # 91631939-1Qty x 1
Speedway Dual Feed Brake Master Cylinder, 1 Inch Bore, Disc/DrumPart # 91031420Qty x 1
Brake Pedal Pad, Round, RubberPart # 91031200Qty x 1
Bolt & Nut Set/35+ Brake PedalPart # 91631935-2Qty x 1
Threaded Steel Weld Bung Fitting, 1/4 Inch NPT FemalePart # 6176702Qty x 1
Replacement Pushrod for Manual Master CylinderPart # 91631946Qty x 1
