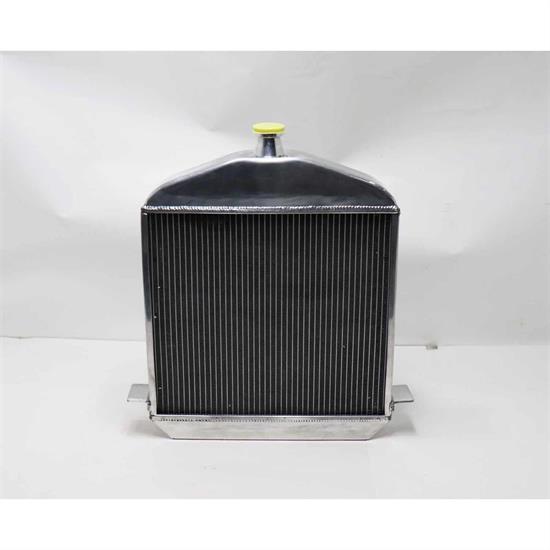

1917-1923 T-Bucket Aluminum Radiator
1917-1923 T-Bucket Aluminum Radiator
Single Pass Radiator Style, Downflow Radiator Flow Direction, Aluminum, 2 Row Quantity
In Stock
Ships FREE
Select Vehicle
1917-1923 T-Bucket Aluminum Radiator
X
Part # UP100414
$249.99
$324.99
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Important Messages:
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Details
Radiator Style:
Single Pass
Radiator Flow Direction:
Downflow
Material Type:
Aluminum
Inlet Location:
Upper driver side
Outlet Location:
Lower passenger side
Row Quantity:
2
Overall Width Range:
18.00" to 18.99"
Overall Width:
18.75"
Overall Height Range:
22.00" to 22.99"
Overall Height:
22.38"
Overall Thickness:
4"
Core Width Range:
18.00" to 18.99"
Core Width:
18.38"
Core Height Range:
16.00" to 16.99"
Core Height:
16"
Core Thickness:
2.25"
Finish:
Polished
Transmission Cooler:
Yes
Shroud Included:
No
Filler Neck Height:
2.25"
Inlet Size:
1.50
MFG. Part #:
91015600-P
Sold in Quantity:
Each
Info
This is garage sale priced because it is damaged.
No Warranty, No Returns on Garage Sale Items
These 1917-1923 T-Bucket radiators are built to work without a grille shell and look good doing it! Speedway T-bucket radiators do not use a conventional "pressure" radiator cap, rather they use the decorative "T" caps to seal the neck at the top of the radiator. A hidden pop-off valve (910-15805 sold separately) is used for pressure control. Gasket # 911-12222 is very helpful for sealing the decorative "T" caps.
Features Chevy position outlets, auto transmission cooler. These accept "T" radiator caps and accessories, but are not included.
- The upper neck is left of center about 6".
- 4" upper tank thickness, 3" strap thicknes that encases the core, 2.25" core
- Uses 2 each 1" wide core tube
- Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
Notes
1/4" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 1/4" NPT fitting for overflow. 1.75" wide mounting feet on both sides.
Some parts are not legal for use in California or other states with similar laws/regulations
