Precision X-Series Heim Joint Rod Ends, 5/8-18 RH Male, 1/2 Inch Hole

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Overall Width:
1.375
Color:
Black
Sold in Quantity:
Each
Overall Thickness:
0.625
Finish:
Black Oxide
Hole Diameter:
0.5000
Inside Diameter:
0.500
Thread Pitch:
5/8"-18
Center Hole to End of Shank:
2.625
Threads:
RH Male
Notes
5/8 X 18 THREAD

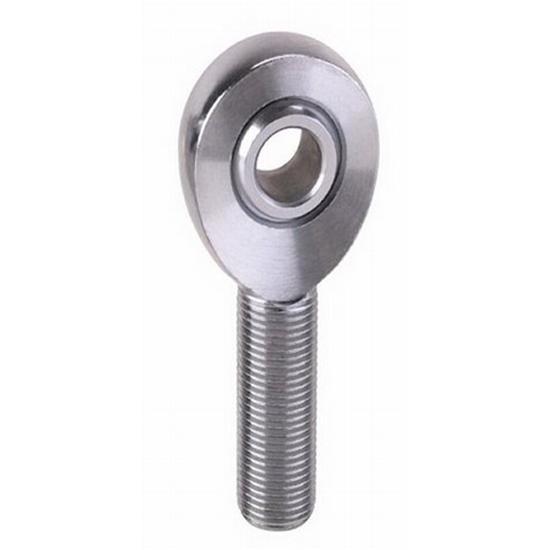

Precision X-Series Heim Joint Rod Ends, 5/8-18 RH Male, 1/2 Inch Hole

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These rod ends are used when you need to combine different sized rod shank and through hole. These ends offer greater strength than our "standard" rod ends.

ASSEMBLY TIP:
To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Avanti Dan
San Luis Obispo

Good quality.

May 07, 2010
Used them to replace the 40+ years old heims on the hair pin arms. The design will resist the salt intrusion better than the old ones.
Pros:
  • Great Design
  • Stronger than originals
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

0 questions : 0 answers

No questions have been asked.
