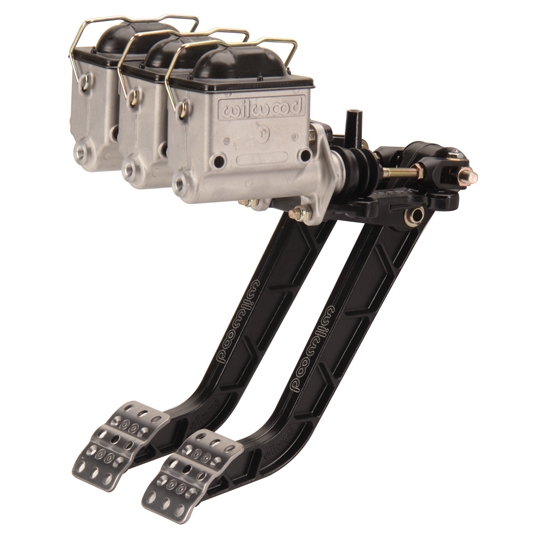

Wilwood Reverse Swing Triple Master Cylinder Pedal, 6.2:1

SAME DAY SHIPPING! Order within the next 12 hours 8 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Sold in Quantity:
Kit
Garage Sale:
No
Notes
Includes pedals and three master cylinders.
Wilwood Reverse Swing Triple Master Cylinder Pedal, 6.2:1
Wilwood Reverse Swing Triple Master Cylinder Pedal, 6.2:1
Wilwood Reverse Swing Triple Master Cylinder Pedal, 6.2:1
Wilwood Reverse Swing Triple Master Cylinder Pedal, 6.2:1
Wilwood Reverse Swing Triple Master Cylinder Pedal, 6.2:1
Wilwood Reverse Swing Triple Master Cylinder Pedal, 6.2:1

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

Wilwood's racing brake/clutch pedal assemblies are the result of years of hands-on experience, input from racers and chassis builders, and design, material selection and manufacturing techniques that result in durable, lightweight components. They incorporate ergonomics without sacrificing performance, and practical requirements without adding weight.

Tri reverse mount master cylinder pedal assembly has both clutch and brake pedals with balance bar for dual brake master cylinders.

  • Combines the brake & clutch pedals into one unit
  • Positions M/C inside the firewall away from engine heat
  • Aluminum frame & arm construction
  • Steel pivots & mounting studs
  • Anti-skid pedal pads
  • Clevis and pivot pin balance bar provide smooth and accurate settings of the brake pedal bias
  • Bias can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustment

910-29974 Instructions (PDF)

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.

Specs

  • Pedal Length:  12" (from pivot to end)
  • Master Cyl. Outlet:  Single, 1/8" NPT


Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

krazy dave
Verified Purchaser
peyton, co.

kool piece!!!

October 09, 2010
this unit really fits the bill when building a rod from scratch like I do. It eliminates having to spend hours building something.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 4 answers

1 answers

Any suggestions on sizing cylinders? I'll use this on a Lotus 7-like car , 1600 lb, with Pontiac Solstice drivetrain-Ecotec 2.4 and Aisin ar5 trans. Rotors and calipers from 2007 Malibu.

rmboggs
Alexis, NC 28006, USA
October 04, 2014

Any suggestions on sizing cylinders? I'll use this on a Lotus 7-like car , 1600 lb, with Pontiac Solstice drivetrain-Ecotec 2.4 and Aisin ar5 trans. Rotors and calipers from 2007 Malibu.

Answers

October 06, 2014
EricM
I would first try two 7/8" bore master cylinders for the brakes and a 3/4" for the clutch. Sizing of the master cylinders will be a bit of trial and error for your application but I believe that would be a good place to start.
1 answers

Would this work with a hydraulic throwout bearing and drum brakes?thanks

January 20, 2012

Would this work with a hydraulic throwout bearing and drum brakes?thanks

Answers

January 23, 2012
John
Part number 91029974 This could be used with a hydraulic throwout bearing and available in bore sizes to match the bearing requirement. The two master cylinders for the brakes feature a balance bar for varying pressure front to rear and normally use 1” bore on each cylinder but varying sizes is also available.
1 answers

does the pedal comwe with the master cylinders

May 16, 2011

does the pedal comwe with the master cylinders

Answers

May 17, 2011
Jason
Yes, part #91029974 is a complete kit with master cylinders. Pedal only part # is 8353403342
1 answers

is this product ment for racing cars only? or higway youse

f1
norway
April 15, 2011

is this product ment for racing cars only? or higway youse

Answers

April 18, 2011
Tech Support
This can be used with both race and street applications.
Page 1 of 1

You may also be interested in:

Wilwood 340-4990 Remote Brake Bias Adjuster Cable
(Part #8353404990)


Highly visible bright blue knob has a special bi-directional detente control which provides the driver with positive adjustment feedback.  5' long, may be shortened. For use with Wilwood aluminum brake pedal assemblies.

 Brake Pedal And Balance Bar Instruction Guide (PDF)

Pedal Mount Plate
(Part #91641025)


A simple rigid steel mount for hanging your pedals. Fits all aluminum Wilwood, U.S. Brake, or Tilton brake/clutch pedals and master cylinders we sell.

Wilwood 340-3342 Dual Brake/Clutch Pedal Assembly, Rev. Swing Mount
(Part #8353403342)


This assembly combines the brake and clutch pedals together in one unit and positions the master cylinders inside the firewall and away from engine heat. It features all aluminum frame and arm construction with steel pivots, mounting studs, and anti-skid pedal pads. Wilwood's clevis and pivot pin balance bar provide smooth and accurate settings of the brake pedal bias. It can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments.

Has a 6.25:1 ratio on both clutch and brake pedal.

8353403342 Instructions (PDF)

Wilwood Reverse Swing Triple Master Cylinder Pedal, 5.1:1
(Part #91029977)


Wilwood's racing brake/clutch pedal assemblies are the result of years of hands-on experience, input from racers and chassis builders, and design, material selection and manufacturing techniques that result in durable, lightweight components. They incorporate ergonomics without sacrificing performance, and practical requirements without adding weight.

  • Combines the brake & clutch pedals into one unit
  • Positions M/C inside the firewall away from engine heat
  • Aluminum frame & arm construction
  • Steel pivots & mounting studs
  • Anti-skid pedal pads
  • Clevis and pivot pin balance bar provide smooth and accurate settings of the brake pedal bias
  • Bias can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustment

Tri reverse mount master cylinder pedal assembly has both clutch and brake pedals with balance bar for dual brake master cylinders.

910-29977 Instructions (PDF)

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.

US Brake Tri Reverse Mount Master Cylinder Pedal Assembly Kit, 6.2:1
(Part #91029984)


This Wilwood pedal/US Brake master cylinder assembly combines the brake and clutch pedals together in one unit and positions the master cylinders inside the firewall and away from engine heat. It features all aluminum frame and arm construction with steel pivots, mounting studs, and anti-skid pedal pads. Wilwoods clevis and pivot pin balance bar provide smooth and accurate settings of the brake pedal bias. It can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments.

  • 6.2:1 pedal ratio
  • External return spring maintains positive pedal feel, prolongs pad life
  • Polished smooth bores
  • One-piece alumiunum construction
  • Each master cylinder has a single 1/8" NPT outlet
  • Specify m/c bore sizes needed (3/4", 7/8", 1")

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.

Item Details

Specify bore sizes in the Comments box of your Shopping Cart at Checkout.
(3/4", 7/8", 1")
