Wilwood 140-2115-B Rear Brake Kit- Old Big Bearing Ford, 2.36 Offset

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Sold in Quantity:
Kit
Bolt Pattern:
Multi: 5 on 5"/4.75"/4.50"
Hardware Included:
Yes
Rotor Diameter:
12.25
Caliper Pistons:
Four
MFG. Part #:
140-2115B
Rotor Thickness:
.81
Minimum Recommended Wheel Diameter:
15 Inch
Caliper Finish:
Anodized
Parking Brake Provision:
No
Rotor Construction:
Vented
Garage Sale:
No
Rotor Location:
Rear
Rotor Shape:
Round
Drilled:
No
Slotted:
No
Notes

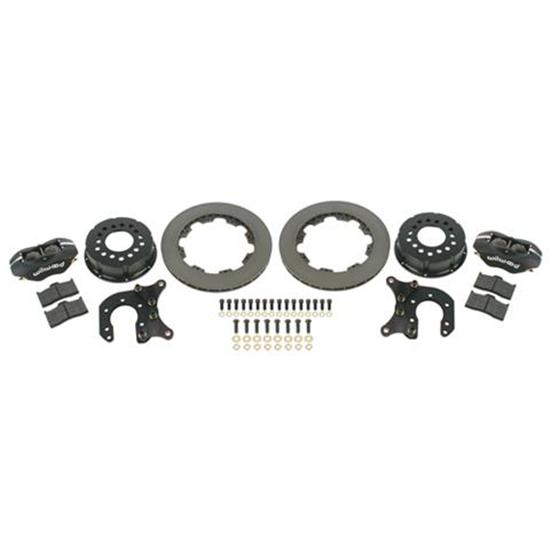

Includes rotors, rotor hats, caliper brackets, calipers, pads, and hardware.
Wilwood 140-2115-B Rear Brake Kit- Old Big Bearing Ford, 2.36 Offset
Wilwood 140-2115-B Rear Brake Kit- Old Big Bearing Ford, 2.36 Offset

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Wilwood FDL Pro-Series rear disc brake kits provide a complete solution for the popularFord big bearingrear axles on applications where parking brake assemblies are not required. Forged billet Dynalite four piston calipers, two-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of customized applications.

  • Piston Area (in²): 3
  • 1/8" NPT inlet
  • Minimum Wheel Diameter (in): 15
  • BP-10 Smart pads

These kits do not have emergency brake provisions.

Pro Series Rear Axle Kit Installation Instructions (PDF)

Axle Flange Identification Chart

Exploded Installation Schematic



Specs

  • Piston Area (in²): 3
  • 1/8" NPT inlet
  • Minimum Wheel Diameter (in): 15
  • BP-10 Smart pads

Item Details

Big Ford, old style, 2.36" offset
