Wilwood 140-11017 FDL 11 Inch Front Brake Kit, 74-80 Pinto/Mustang II

Specs
Sold in Quantity:
Kit
Bolt Pattern:
Dual: 5 on 4.5"/4.75"
Stud Diameter:
.50
Thread Pitch:
1/2"-20
Hardware Included:
Yes
Rotor Diameter:
11.00
Caliper Pistons:
Four
MFG. Part #:
140-11017
Rotor Thickness:
.81
Minimum Recommended Wheel Diameter:
14 Inch
Caliper Finish:
Anodized
Rotor Construction:
Vented
Garage Sale:
No
Rotor Location:
Front
Rotor Shape:
Round
Drilled:
No
Slotted:
No
Wheel Diameter:
14
Spindle Type:
Factory Disc Spindle
Total Piston Area:
4.80
Pad Area:
6.36
Pad Volume:
2.1
Rotor Width:
0.81
Vane Count:
30 V
Rotor Style:
Plain Face
Bedded:
No
Balanced:
No
Compound:
BP-10
Stud Diameter 2:
1/2-20
Mount Type:
Lug
Caliper Type:
Forged Dynalite
Piston Type:
Stainless
Rotor Type:
Ultralite HP 30
Rotor Surface Finish:
Natural
Rotor Material Type:
Iron
Notes
Includes rotors, hubs, bearings and seals, calipers, caliper brackets, hardware, and pads.
Wilwood 140-11017 FDL 11 Inch Front Brake Kit, 74-80 Pinto/Mustang II
Wilwood 140-11017 FDL 11 Inch Front Brake Kit, 74-80 Pinto/Mustang II
Wilwood 140-11017 FDL 11 Inch Front Brake Kit, 74-80 Pinto/Mustang II
Wilwood 140-11017 FDL 11 Inch Front Brake Kit, 74-80 Pinto/Mustang II

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

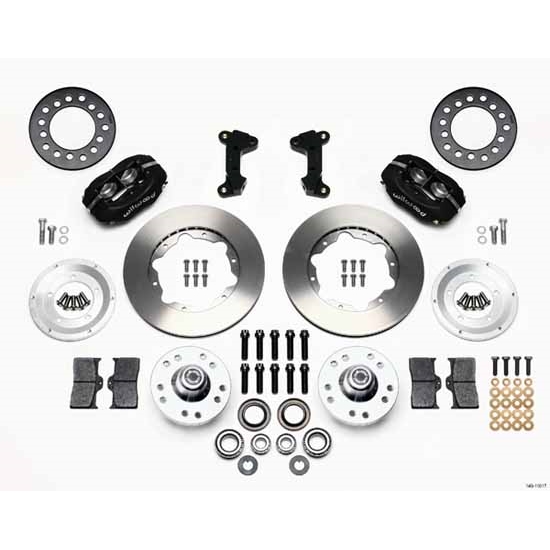

What's in the Box

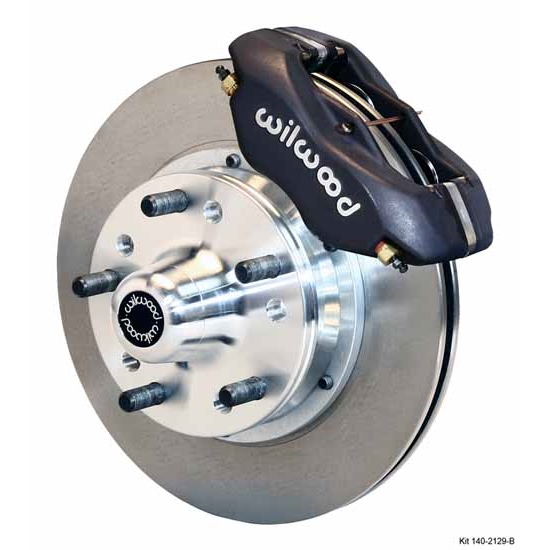

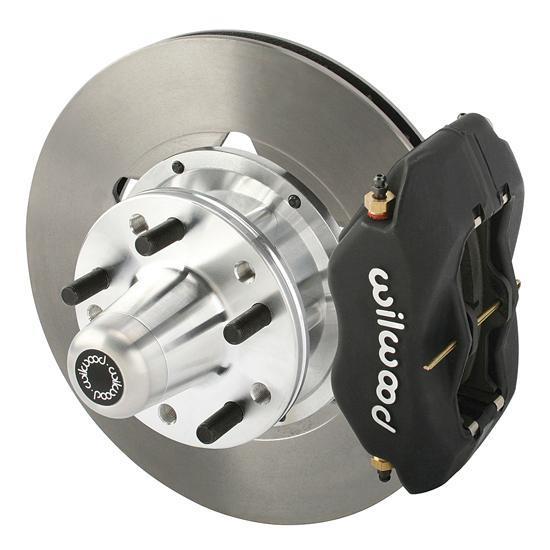

Wilwood Forged Dynalite Front Pro Series Brake Kits offer a complete disc brake upgrade solution for Mustang II-equipped street rods and classic pickups. Based on the venerable forged billet 4-piston Dynalite caliper, these versatile kits suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast.

Calipers mount directly to the spindle with a bolt-on aluminum bracket. Forged billet, five lug hubs with direct mount cast iron rotors combine to provide a significant weight savings compared to stock disc brakes. Kits include all new hardware, wheel bearings, seals, brake pads, brackets, and extra length lug studs.

Aluminum hubs drilled to accept both 5-on-4-1/2" and 5-on-4-3/4" bolt patterns.

Wilwood Medium Duty Kits Feature:

  • Forged 4-piston Dynalite Calipers
  • 11" diameter Ultralite HP 30 Vane rotors - bare finish
  • Wilwood BP-10 SmartPads - low noise, low dust
  • Lightweight clear anodized aluminum hubs

835-14011017 Instructions (PDF)

*NOTE*: See Notes tab for important install information.

Application

1974 Ford Mustang II All
1974 Ford Pinto All
1975 Ford Mustang II All
1975 Ford Pinto All
1975 Mercury Bobcat All
1976 Ford Mustang II All
1976 Ford Pinto All
1976 Mercury Bobcat All
1977 Ford Mustang II All
1977 Ford Pinto All
1977 Mercury Bobcat All
1978 Ford Mustang II All
1978 Ford Pinto All
1978 Mercury Bobcat All
1979 Ford Pinto All
1979 Mercury Bobcat All
1980 Ford Pinto All
1980 Mercury Bobcat All

Notes

  1. If using steel wheels with this kit, you will also need to purchase (2) steel shims part 835-3007500. These shims will prevent steel wheelsfrom galling the aluminum hub.
  2. Using this kit on aftermarket dropped spindles will require the drilling and tapping of one 3/8"-16 hole in each spindle for mounting the cliper bracket.
  3. OEM rubber brake hoses generally cannot be adapted to Wilwood calipers. The caliper inlet fitting is a 1/8-27 NPT. The preferred method is to use steel adapter fittings at the caliper, either straight, 45 or 90 degree and enough steel braided line to allow for full suspension travel and turning radius, lock to lock.

Specs

  • Minimum Wheel Diameter (in): 15"
  • Rotor - 11" diameter x .81" thick
  • Wheel Stud Diameter: 1/2"-20
  • Caliper inlet fitting: 1/8" NPT
  • Piston count: 4
  • Piston area (in2): 4.8
  • Piston type: stainless
  • Brake Pad Area (in²): 6.36

Item Details

+.00" Hub Offset (OEM Track Width)

Customer Reviews

This product has no reviews.

Product Q&A

3 questions : 3 answers

What is the weight difference from a Granada disc / GM caliper setup? And - What are the braking performance differences?

1 answers
conekiller
Oregon, USA
August 23, 2014

What is the weight difference from a Granada disc / GM caliper setup? And - What are the braking performance differences?

Answers

August 25, 2014
EricM
This Wilwood kit is approximately 18 lbs per side lighter than a Granada rotor / GM Metric caliper brake system. This kit will have much better braking due to the four piston calipers.

I have a 1978 mustang 11 front end and want to change it from 14" to 15" wheels. I have new rotars that fit a 1985 Lincoln Mark V and require either a caliper bracket to mount to the new rotars or what do you suggest?

1 answers
fergie
canada
April 25, 2011

I have a 1978 mustang 11 front end and want to change it from 14" to 15" wheels. I have new rotars that fit a 1985 Lincoln Mark V and require either a caliper bracket to mount to the new rotars or what do you suggest?

Answers

April 28, 2011
John W
You inquired about mounting your 1985 Lincoln rotors to a Mustang II spindle and needing the caliper brackets. Speedway does not offer a kit using this particular rotor and the Lincoln caliper. If you are attempting to get the bigger brakes and a Ford 5 on 4 ½ pattern we offer an 11” upgrade kit under number 91031944 and this includes everything from hub to hub needed. In checking your bolt pattern on the Lincoln rotor you may have a 5 on 5 bolt pattern which some of the Lincolns and other big Ford products utilized. If this is the pattern you are looking for we are unable to be of assistance. Another option would be the wildwood kit number 8351401013 or 8351401017. You can see any of these in our catalog and on our website.

Does the kit move the wheel out further? On your other kits , it moves it out 1/2".

1 answers
December 18, 2011

Does the kit move the wheel out further? On your other kits , it moves it out 1/2".

Answers

December 20, 2011
John
Part number 8351206816 These brake kits feature .00” hub offset and maintain OEM track width!
Page 1 of 1

You may also be interested in:

Mustang II Steel Spindles
(Part #91034307)


Heat treated forged steel spindle that retains stock factory geometry. Direct replacement for 1974-1980 Pinto/Bobcat and 1974-1978 Mustang II. Uses all stock rotors, bearings, calipers, etc. Stock height.

910-34307 Instructions (PDF)

Braided Stainless AN 12 Inch Brake Line
(Part #91031842)


Braided stainless covering over a Teflon inner liner. These are perfect for brake lines, clutch lines and gauge lines. These have straight AN3 or AN4 fittings on both ends. Sold each.

AN 3 O.D. is .265 and AN 4 O.D. is .305

Select applicable length. AN size is the "-#" at the end of each part number.

Straight 3/8 Inch-24 IFF to AN 4 Male Adapters
(Part #6174029)
                        AN male all Steel adapters sold in pairs.

Gorilla Automotive LN41188 Chrome Acorn Lug Nut, 1/2 Inch Thread
(Part #91041188)

  • Chrome plated steel lug nut
  • 1/2"-20 fine thread
  • Tapered 60° seat design
  • Sold each
Gorilla Automotive 41783 Wheel Installation Kit, 1/2 Inch
(Part #63441783)


Everything you need to install 4 wheels! Everything is prepackaged and clearly marked for easy use.  Gorilla's wheel installation kits contain the original Gorilla Wheel Locks, providing the very best in wheel security possible.

  • 1/2" thread size
  • 5 lug bolt pattern
  • bulge acorn lug style

Kit includes:

  • 16 Chrome 60º acorn/bulge lug nuts
  • 4 wheel locks & key
Gorilla Automotive 71481N 1/2-20 Acorn Wheel Locks, 60 Deg. Taper
(Part #63471481)
                        The original design that set the standard for wheel security, Gorilla Locks are the most advanced and unique locks on the market today.  An external "Security Pattern" makes the Gorilla Lock virtually impossible to remove without the matching key.  Made from case-hardened steel and chrome plated for lasting beauty, these locks are designed for unsurpassed security.  Each set of Gorilla Locks comes with a key code label, complete with ordering information for replacement keys.
  • 1/2"-20
  • 60° taper
  • Closed end bulge acorn style
  • Chrome plated
  • Package of 4 plus 3/4" key
Gorilla Automotive 73681N 1/2-20 Mag Wheel Locks, 3/4 In Shank
(Part #63473681)
                        The original design that set the standard for wheel security, Gorilla Locks are the most advanced and unique locks on the market today.  An external "Security Pattern" makes the Gorilla Lock virtually impossible to remove without the matching key.  Made from case-hardened steel and chrome plated for lasting beauty, these locks are designed for unsurpassed security.  Each set of Gorilla Locks comes with a key code label, complete with ordering information for replacement keys.
  • 1/2" size
  • 3/4" shank
  • Closed end
  • Chrome plated
  • Includes centered round washers
  • Package of 4 plus 13/16" key
Gorilla Automotive 70087B 1/2 Inch-20 Open Rally Wheel Style Lug Nuts
(Part #63470087)
                        Gorilla offers you the most complete selection of high-quality lug nuts   available on the market today!  These triple chrome plated wheel  lug  nuts feature long lasting durability and are precision engineered  to  meet or exceed manufacturer's specifications.
  • Short OEM style
  • Clears center cap retainer ring on GM style Rally Wheels
  • 1/2"-20
  • 60º taper seat - NON Bulge
  • 13/16" Hex size
  • Open end
  • FOR USE ON STEEL WHEELS ONLY
  • Set of 4
Gorilla Automotive 73087B 1/2 In-20 Open Mag Wheel Lugs, 3/4 In Shank
(Part #63473087)
                        Gorilla offers you the most complete selection of high-quality lug nuts  available on the market today!  These triple chrome plated mag wheel lug  nuts feature long lasting durability and are precision engineered to  meet or exceed manufacturer's specifications.
  • Open end
  • 1/2"-20
  • 3/4" shank
  • Chrome plated
  • Includes centered round washers
  • Package of 4
Gorilla Automotive 73187B 1/2 In-20 Std Mag Wheel Lugs, 3/4 In Shank
(Part #63473187)
                        Gorilla offers you the most complete selection of high-quality lug nuts   available on the market today!  These triple chrome plated mag wheel  lug  nuts feature long lasting durability and are precision engineered  to  meet or exceed manufacturer's specifications.
  • Closed end
  • 1/2"-20
  • 3/4" shank
  • Chrome plated
  • Package of 4
Wilwood 140-11017-D FDL 11 In. Front Brake Kit, 74-80 Pinto/Mustang II
(Part #83514011017D)
                        FDL Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, and heavy weight drag cars. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most kits require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.

Installation Instructions (PDF)

Wheel Clearance Diagram

Wilwood 140-11017-DP FDL 11 In Front Brake Kit, 74-80 Pinto/Mustang II
(Part #83514011017DP)
                        FDL Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, and heavy weight drag cars. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most kits require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.

Installation Instructions (PDF)

Wheel Clearance Diagram

Wilwood 140-11017-DR FDL 11 In Front Brake Kit, 74-80 Pinto/Mustang II
(Part #83514011017DR)
                        FDL Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, and heavy weight drag cars. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most kits require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.

Installation Instructions (PDF)

Wheel Clearance Diagram

Wilwood 140-11017-P FDL 11 In. Front Brake Kit, 74-80 Pinto/Mustang II
(Part #83514011017P)
                        FDL Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, and heavy weight drag cars. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most kits require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.

Installation Instructions (PDF)

Wheel Clearance Diagram

Wilwood 140-11017-R FDL 11 In. Front Brake Kit, 74-80 Pinto/Mustang II
(Part #83514011017R)
                        FDL Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, and heavy weight drag cars. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most kits require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.

Installation Instructions (PDF)

Wheel Clearance Diagram

Wilwood 300-10716 Steel Wheel Shim-Shield, 6 1/4 Inch O.D.
(Part #8353007500)
                        This shim is .094" thick, has a 3.245 center hole and is 6.25" O.D. It has 5 on 4 1/2", 5 on 4 3/4" and 5 on 4" bolt patterns to fit over a 1/2" stud. It is made of steel.

Wilwood 150-8850 Poly-D 10 Double Quick Change Brake Pad
(Part #8353991)


Double Quick-Change pads are compatible with our Wilwood Forged Dynalite and Billet Dynalite calipers.

  • Medium friction, low to medium temperarture range.
  • Good cold torque response.
  • Low to moderate wear rate

Pads are sold each. (Will need 2 per caliper.)

Tech Tip:  Only use full metallic pads on coated rotors.

Brake Pad Brochure (PDF)

Brake Pad Brand Guide (Link)

Learn how to properly Bed-In your brake pads by reading our tech article.  Bedding-In Brake Pad Procedure.

8353991 Instructions (PDF)
