Wilwood 120-6808 Forged Dynalite Caliper, 1.38 Piston / .38 Inch Disc

SAME DAY SHIPPING! Most orders ship within 24 hours.

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Finish:
Anodized
Color:
Black
Caliper Pistons:
Four
Rotor Diameter:
13.06
Caliper Mounting Type:
Lug
Mounting Side:
Universal
Thread Pitch:
1/8-27 NPT
MFG. Part #:
120-6808
Garage Sale:
No
Centerline of Holes:
5.25
Overall Length:
7.01
Bore Size:
1.38
Mounted Height:
2.03
Piston Diameter:
1.38
Rotor Thickness:
0.38
Bore 2 Size:
1.38
Mount Hole Size:
0.39
Weight:
3.40
Total Piston Area:
3.00
Pad Area:
6.36
Pad Volume:
2.10

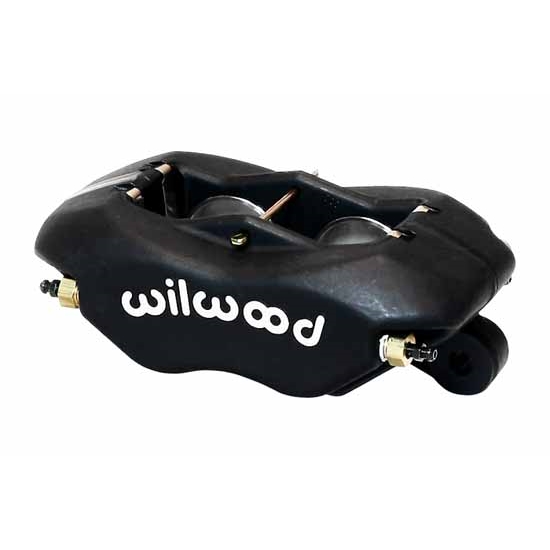

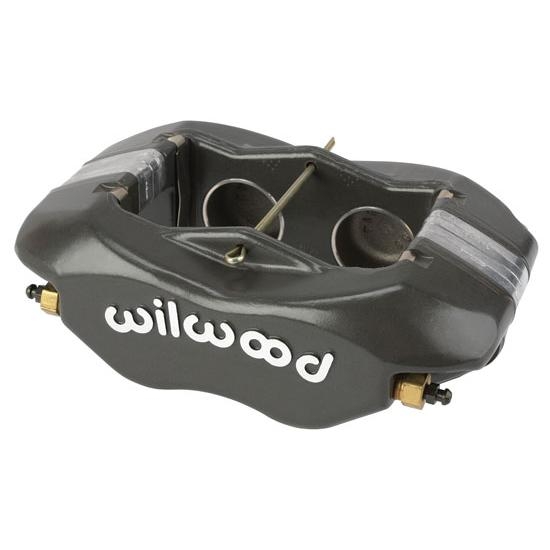

Wilwood 120-6808 Forged Dynalite Caliper, 1.38 Piston / .38 Inch Disc
Wilwood 120-6808 Forged Dynalite Caliper, 1.38 Piston / .38 Inch Disc
Wilwood 120-6808 Forged Dynalite Caliper, 1.38 Piston / .38 Inch Disc

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

The Forged Billet Dynalite has wide spread application over many forms over motorsports. It serves as the base model in the majority of Wilwood's Bolt-On Disc Brake Kits. The latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models.

Get a guaranteed taller pedal and better stopping power with these calipers! New forged design for rotors measuring 10" - 13.06" diameter. Includes 4 stainless steel pistons and a 1/8" NPT inlet. Mounting centers are 5-1/4" apart.

Pads not included.

Catalog Correction:  These calipers will work with 10" - 13.06" O.D. rotors.

Application

Driving Environment / Application Duty
  • Street Rods                (Heavy Duty)
  • Street Performance    (Heavy Duty)
  • Rally                           (Medium Duty)
  • Road Race                  (Medium Duty)
  • Late Model Dirt           (Heavy Duty)
  • Drag Racing               (Heavy Duty)
  • Northeast Modified     (Medium Duty)
  • Open Wheel               (Medium Duty)
  • Off Road                     (Medium Duty)

Notes

Features:
  • Bridge plates extend the service life of the caliper body & dampens vibrations
  • High temp seals and stainless steel pistons to eliminate corrosion and retard heat transfer from the pads
  • Internal fluid passages eliminate the need for external tubes
  • Four corner bleed screws allow one caliper to be mounted in any front, rear, right, or left position
  • Black anodized finish to resist corrosion
  • Wilwood FDL Data Sheet (PDF)
  • Inlet:  1/8" NPT
  • Mounting Centers:  5-1/4"
  • Mount Hole Size:   0.39"
  • Mount Side:  Universal
