Wilwood 120-6804 Forged Dynalite Caliper, 1.38 Inch Piston / 1.25 Disc

Specs
Centerline of Holes:
5.25
Material Type:
Aluminum
Overall Length:
7.01
Weight:
3.40
Color:
Black
Sold in Quantity:
Each
Finish:
Anodized
Thread Pitch:
1/8-27 NPT
Bore Size:
1.38
Mounted Height:
2.03
Rotor Diameter:
13.06
Piston Diameter:
1.38
Caliper Pistons:
Four
Mounting Side:
Universal
MFG. Part #:
120-6804
Rotor Thickness:
1.25
Garage Sale:
No
Caliper Mounting Type:
Lug
Bore 2 Size:
1.38
Total Piston Area:
3.00
Mount Hole Size:
0.39
Pad Area:
6.36
Pad Volume:
2.10

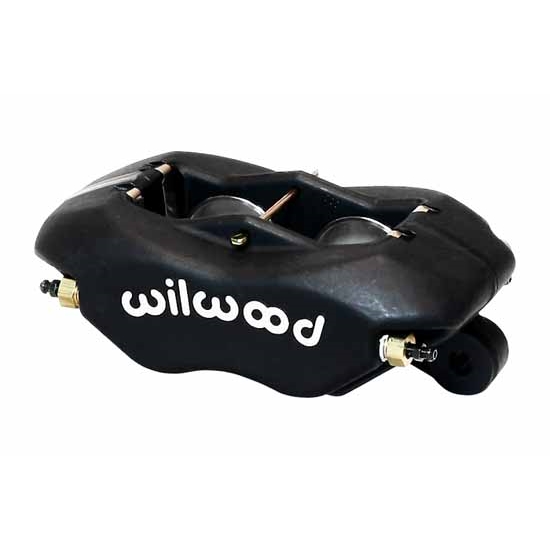

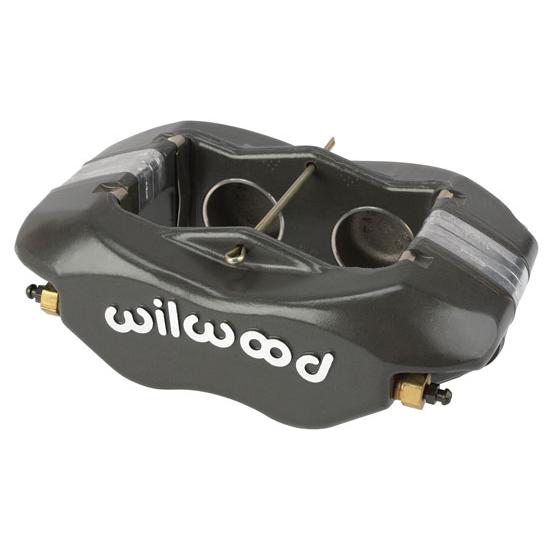

Wilwood 120-6804 Forged Dynalite Caliper, 1.38 Inch Piston / 1.25 Disc
Wilwood 120-6804 Forged Dynalite Caliper, 1.38 Inch Piston / 1.25 Disc
Wilwood 120-6804 Forged Dynalite Caliper, 1.38 Inch Piston / 1.25 Disc

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

The Forged Billet Dynalite has wide spread application over many forms over motorsports. It serves as the base model in the majority of Wilwood's Bolt-On Disc Brake Kits. The latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models.

Get a guaranteed taller pedal and better stopping power with these calipers! New forged design for rotors measuring 10" - 13.06" diameter. Includes 4 stainless steel pistons and a 1/8" NPT inlet. Mounting centers are 5-1/4" apart.

Pads not included.

Catalog Correction:  These calipers will work with 10" - 13.06" O.D. rotors.

Application

Driving Environment / Application Duty
  • Street Rods                (Heavy Duty)
  • Street Performance    (Heavy Duty)
  • Rally                           (Medium Duty)
  • Road Race                  (Medium Duty)
  • Late Model Dirt           (Heavy Duty)
  • Drag Racing               (Heavy Duty)
  • Northeast Modified     (Medium Duty)
  • Open Wheel               (Medium Duty)
  • Off Road                     (Medium Duty)

Notes

Features:

  • Bridge plates extend the service life of the caliper body & dampens vibrations
  • High temp seals and stainless steel pistons to eliminate corrosion and retard heat transfer from the pads
  • Internal fluid passages eliminate the need for external tubes
  • Four corner bleed screws allow one caliper to be mounted in any front, rear, right, or left position
  • Black anodized finish to resist corrosion
  • Wilwood FDL Data Sheet (PDF)
  • Inlet:  1/8" NPT
  • Mounting Centers:  5-1/4"
  • Mount Hole Size:   0.39"
  • Mount Side:  Universal



Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

Is there a rebuild kit available for this caliper?

1 answers
December 17, 2011

Is there a rebuild kit available for this caliper?

Answers

December 19, 2011
Jason
We offer a seal kit, part #8351302658, pistons under part #8352007518 and cotter pins, part #8351800056

is this a 4 piston like picture? and what is the length of the caliper? Thank you

1 answers
tony
nazareth
August 23, 2011

is this a 4 piston like picture? and what is the length of the caliper? Thank you

Answers

August 24, 2011
Jason
This is a 4 piston caliper that is 7.01" long with 5.25" mounting centers. If you go to http://www.wilwood.com/Calipers/CaliperProd.aspx?itemno=120-6804 it will give you all the specs on this caliper.
