Weld-On 1969-77 GM Mid-size Caliper Bracket

SAME DAY SHIPPING! Order within the next 9 hours 37 minutes and receive same day shipping

Specs
Centerline of Holes:
7.00
Material Type:
Steel
Sold in Quantity:
Each
Overall Thickness:
0.184
Finish:
Painted
Tube O.D.:
3.00
Thread Pitch:
7/16"-20
Material Thickness:
.19
Garage Sale:
No

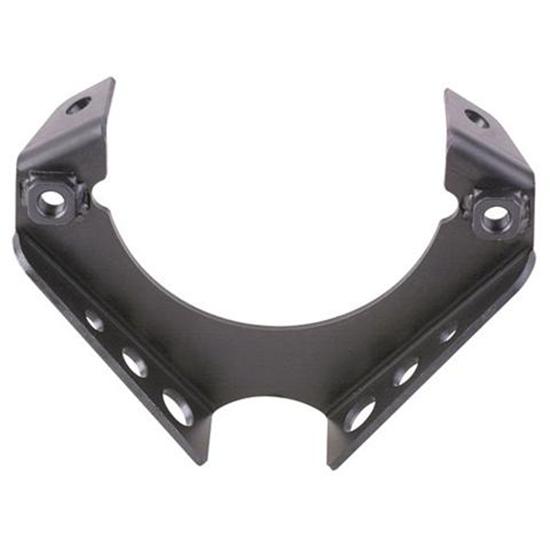

Weld-On 1969-77 GM Mid-size Caliper Bracket
Weld-On 1969-77 GM Mid-size Caliper Bracket

Click image to enlarge

Speeday Motors Logo
X
Weld-On 1969-77 GM Mid-size Caliper Bracket

Details

Reviews

Q & A

What's in the Box

Mounts 1969-1977 GM mid-size car front caliper to any 3" tube rear end using 11-3/4" diameter rotors. Fully machined steel with punched lightening holes. Measures approximately 7" between mounting holes.

IMCA APPROVED
