Water Pump Brackets

This power steering pump bracket mounts a stock-style GM pump to a S/B Chevy block. Must be used with a short style water pump. Mounts on the lower left side. Bracket is zinc plated with threaded shaft. Designed to work with a '70-'82 GM pump that has a threaded pulley shaft, not a press-on style. Works with bolt-on or press-on pulleys with a mount spacing of 3.75". Due to the variety of pulley configurations, it is likely that you will have to space the pump/bracket for belt alignment. Note: This will NOT work ...

Rugged, hi-tech aluminum bracket with a polished finish. Attaches to front of cylinder head of S/B Chevy. Mounting hardware included. Fully adjustable. For use with short water pump.

We all know what a pain it is to come up with a pulley, bracket, and belt combination to work on your small block Chevy engine. We have pre-engineered our package to include the nuts, bolts, and polished billet aluminum brackets to make this a simple installation. Inboard (high) mount brackets for early cars, meaning it will place the alternator up high between the intake manifold and valve cover. Mounts the alternator on the driver's side. Note:  S/B Chevy, short style water pump only.

These power steering pump brackets are for short water pumps. For mounting Profile or Sweet Pump to small block Chevy V8. Bolt kit included. Anodized purple.

These power steering pump brackets are for short water pumps. For mounting Profile or Sweet Pump to small block Chevy V8. Bolt kit included. Anodized purple.

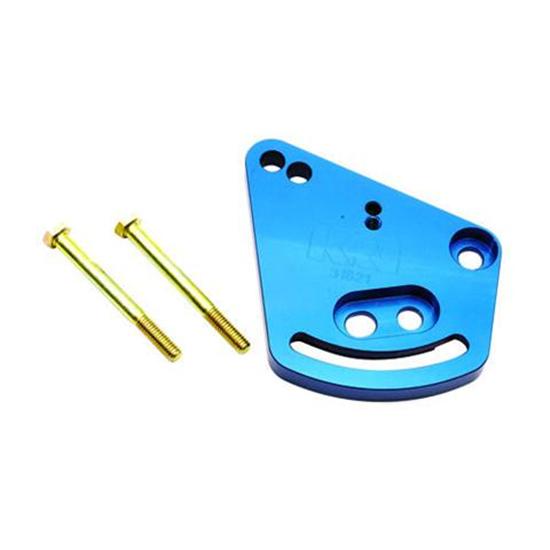

Ford mounting bracket kit for short water pump attaches any KRC steering pump to the left cylinder head.One bracket is for 351/400 tall deck blocks. Matches most small block Ford head patterns.Since bolt sizes vary over the years they are not included.The spacer kit available separately.466-30070 Dimensions(PDF)

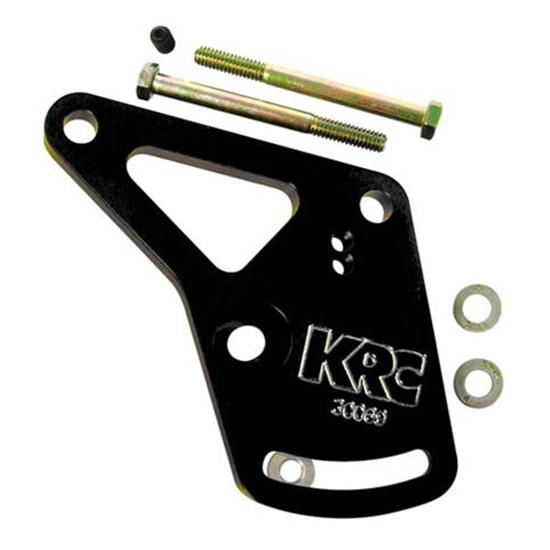

Ford mounting bracket kit for short water pump, attaches any KRC steering pump to the left cylinder head. One bracket is for 351/400 tall deck blocks. Matches most small block Ford head patterns. Since bolt sizes vary over the years, they are not included. The spacer kit available separately. 466-30070 Dimensions  (PDF)

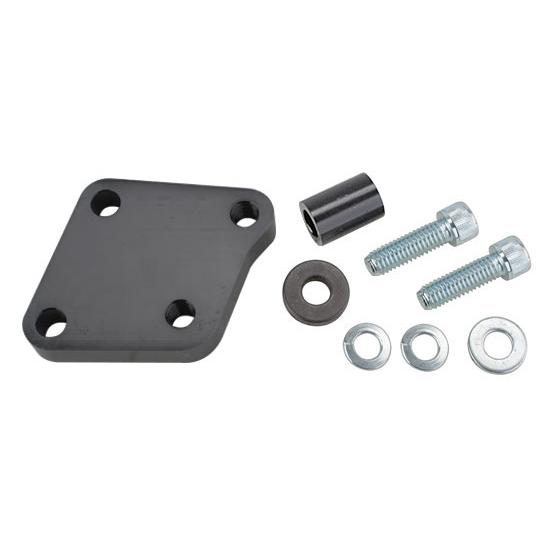

Mount bracket for KSE Tandem Power Steering and Fuel pumps. Pump mounts off water pump on Small Block Chevy.

This power steering pump bracket mounts a stock-style GM pump to a B/B Chevy block. Must be used with a short style water pump. Mounts on the lower left side. Bracket is zinc plated with threaded shaft. Requires 1970-82 GM pump with threaded shaft.

Fabricated from 1/4" mild steel with stainless/chrome Allen head hardware. Simple installation; all brackets are pre-assembled. Drilling or tapping is not required. Attaches to the lower left front of the block using the two lower bolt holes located by the timing cover (the old front motor mount holes). The adjusting arm mounts to the lower water pump hole.Mounts low on driver's sideTwo positionsfor superior adjustabilityWorks with short style water pumpsUse with GM Saginaw pumps with attached reservoir "type 1" p.s. pumpsWorks with stock steel or aluminum aftermarket pulleysChoose black ...

Fabricated from 1/4" mild steel with stainless/chrome Allen head hardware. Simple installation; all brackets are pre-assembled. Drilling or tapping is not required. Attaches to the lower left front of the block using the two lower bolt holes located by the timing cover (the old front motor mount holes). The adjusting arm mounts to the lower water pump hole. Accepts stock GM Saginaw power steering pumps with attached reservoir. Available in chrome or black painted.

If you want to move your power steering pump and alternator up to the driver side head this is the bracket for you. It allows you to retain your original LS1 alternator balancer A/C bracket and compressor.Cap on an '00 F-Body LS1 P/S Reservoir is 1-3/4" higher than the top of the Throttle BodyCenterline of water pump pulley to outside edge of alternator = 16"Includes a billet aluminum bracket belt and hardware.

For S/B Chevy with short water pump. Fabricated from mild steel with all stainless fasteners. Accepts Sanden or Sankyo #508 air conditionerunit. Simple installation. Attaches to accessory bolt holes on front face of head. Available in black or chrome. S/B Chevy Alternator Bracket Illustration

For S/B Chevy with short water pump. Fabricated from mild steel, with all stainless fasteners. Accepts Sanden or Sankyo #508 air conditioner unit. Simple installation. Attaches to accessory bolt holes on front face of head. Available in black or chrome.     S/B Chevy Alternator Bracket Illustration

We all know what a pain it is to come up with a pulley, bracket, and belt combination to work on your small block Chevy engine. We have pre-engineered our polished billet aluminum brackets to make this a simple installation. Inboard (high) mount brackets for early cars. Note:  S/B Chevy, short style water pump only.

We all know what a pain it is to come up with a pulley, bracket, and belt combination to work on your small block Chevy engine. We have pre-engineered our polished billet aluminum brackets to make this a simple installation. Outboard mount for fat fendered cars. Note:  S/B Chevy, short style water pump only.

Fabricated from 1/4" mild steel with stainless/chrome Allen head hardware. Simple installation; all brackets are pre-assembled. Drilling or tapping is not required. Mounts using only the water pump and intake manifold bolts. Accepts Sanden or Sankyo 508 A/C compressor. Designed for use with short water pumps Works with stock steel or aluminum aftermarket pulleys Available in chrome or black painted

Fabricated from 1/4" mild steel with stainless/chrome Allen head hardware. Simple installation; all brackets are pre-assembled. Drilling or tapping is not required. Mounts using only the water pump and intake manifold bolts. Accepts Sanden or Sankyo 508 A/C unit and stock GM Delco 10-SI (1970-1989 style) alternators.  Designed for use with short water pumps Works with stock steel or aluminum aftermarket pulleys Available in chrome or black painted
