Walker Z-510-1 Z-Series 1933 Chevrolet Master Radiator

Free Shipping Free Shipping
Specs
Tube Style:
Downflow
Sold in Quantity:
Each
Inlet Location:
Upper Left
Material Type:
Copper
Finish:
Painted
Row Quantity:
4
Outlet Location:
Lower Right
Color:
Black
Radiator Style:
Single Pass
MFG. Part #:
Z-510-1
Transmission Cooler:
Yes
Shroud:
No
Overall Height:
26.50
Overall Width:
17.19
Overall Thickness:
4.13
Inlet Size:
1.50
Core Height:
21.68
Core Width:
16.88
Core Thickness:
2.75
Filler Neck Height:
2.38
Notes
1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain.

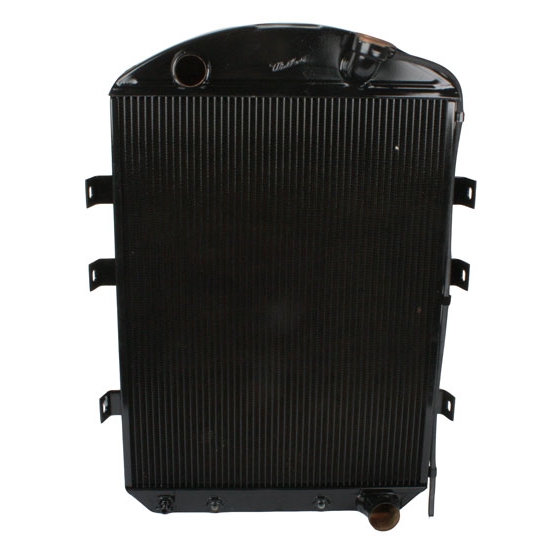

Walker Z-510-1 Z-Series 1933 Chevrolet Master Radiator
Walker Z-510-1 Z-Series 1933 Chevrolet Master Radiator
Walker Z-510-1 Z-Series 1933 Chevrolet Master Radiator
Walker Z-510-1 Z-Series 1933 Chevrolet Master Radiator
Walker Z-510-1 Z-Series 1933 Chevrolet Master Radiator

Click image to enlarge

Details

Reviews (0)

Q & A (3)

What's in the Box

Info

Walker Z-Series radiators feature a 4-row, high-flow copper core which is ideal for use with Big Blocks, blowers, and high compression engines. Built for a direct fit with heavy gauge steel side brackets and mounting holes pre-stamped. Includes a built-in oil cooler for automatic transmissions.

  • Copper core w/ 1-piece brass tanks
  • Vertical tubes every 1/4" and 12 fins per inch of height
  • Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
  • Use a 15-18 lb. radiator cap
  • Brass drain cock
  • Simple bolt-in install w/ no modifications to grille or grille shell

Chevy Chassis W/ Chevy Engine Application Chart (GIF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Specs


Customer Reviews

This product has no reviews.

Product Q&A

3 questions : 3 answers

1 answers

please be more specific on width of this radiator include the mounting tabs the master radiator shell measures 19.750" at its widest mounting tab

33chase
ct
March 31, 2014

please be more specific on width of this radiator include the mounting tabs the master radiator shell measures 19.750" at its widest mounting tab

Answers

March 31, 2014
EricM
This radiator measures 16 7/8" wide without the mounting tabs and 17 3/16" wide including the mounting tabs.
1 answers

What's the difference between 820-Z-5101 and 820-C-5101 How can I determine what do I have?

koos15
South_Africa
October 16, 2013

What's the difference between 820-Z-5101 and 820-C-5101 How can I determine what do I have?

Answers

October 16, 2013
Jason
The Walker "Z" series radiators are a 4 core design and the "C" series is a 3 core design
1 answers

What are the dimensions of this radiator and also capacity?

leon
South-Africa
July 25, 2011

What are the dimensions of this radiator and also capacity?

Answers

July 27, 2011
Jason
This radiator is 26-1/8" tall and 17" wide. This does not include mounting tabs.
