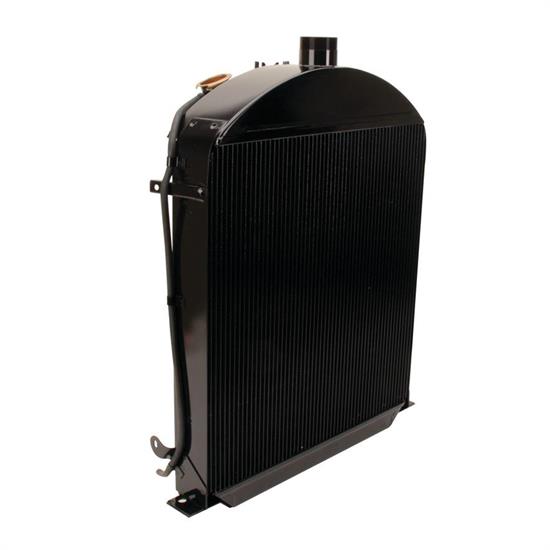

Walker Z-487-1 Z-Series 1928-29 Ford Model A Radiator for Chevy Engine

SAME DAY SHIPPING! Order within the next 16 hours 5 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Tube Style:
Downflow
Sold in Quantity:
Each
Inlet Location:
Upper Left
Material Type:
Copper
Finish:
Painted
Row Quantity:
4
Outlet Location:
Lower Right
Color:
Black
Radiator Style:
Single Pass
MFG. Part #:
Z-487-1
Transmission Cooler:
Yes
Shroud:
No
Garage Sale:
No
Overall Height:
25.00
Overall Width:
19.25
Overall Thickness:
4.25
Inlet Size:
1.50
Core Height:
19.68
Core Width:
19.00
Core Thickness:
2.75
Filler Neck Height:
2.38
Notes
1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain.
Walker Z-487-1 Z-Series 1928-29 Ford Model A Radiator for Chevy Engine
Walker Z-487-1 Z-Series 1928-29 Ford Model A Radiator for Chevy Engine
Walker Z-487-1 Z-Series 1928-29 Ford Model A Radiator for Chevy Engine
Walker Z-487-1 Z-Series 1928-29 Ford Model A Radiator for Chevy Engine
Walker Z-487-1 Z-Series 1928-29 Ford Model A Radiator for Chevy Engine

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Walker Z-Series radiators feature a 4-row, high-flow copper core which is ideal for use with Big Blocks, blowers, and high compression engines. Built for a direct fit with heavy gauge steel side brackets and mounting holes pre-stamped. Includes a built-in oil cooler for automatic transmissions.

  • Works with original, reproduction, steel or fiberglass grille shells
  • Copper core w/ 1-piece brass tanks
  • Vertical tubes every 1/4" and 12 fins per inch of height
  • Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
  • Use a 15-18 lb. radiator cap
  • Brass drain cock
  • Simple bolt-in install w/ no modifications to grille or grille shell

Ford Chassis W/ Chevy Engine Application Chart (GIF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Customer Reviews

This product has no reviews.

Product Q&A

4 questions : 4 answers

1 answers

I have a 350 chevy in my hot rod. And all of your water pumps seem to have the same outlet diameter. Do you sell a lower rad hose for my application?

Cooter
Pennsylvania, USA
January 14, 2014

I have a 350 chevy in my hot rod. And all of your water pumps seem to have the same outlet diameter. Do you sell a lower rad hose for my application?

Answers

January 15, 2014
EricM
This radiator has a 1 3/4" lower hose and 1 1/2" upper hose configuration. That will match up with most all common SBC engines and water pumps. Nearly every water pump I sell for a SBC engine will have a 1 3/4" hose connection which will match up to this radiator.
1 answers

I bought this radiator and i'm looking for a fan/shroud combo. What do you recommend? It must be fully shrouded to pass Pennsylvania street rod laws. Pennyslvania law says that when not running no hood. A fan must be of the kind where no one could accidentally come into contact with the fan blades at anytime.

Cooter
Pennsylvania
May 05, 2013

I bought this radiator and i'm looking for a fan/shroud combo. What do you recommend? It must be fully shrouded to pass Pennsylvania street rod laws. Pennyslvania law says that when not running no hood. A fan must be of the kind where no one could accidentally come into contact with the fan blades at anytime.

Answers

May 06, 2013
Jason
On the 28/29 radiator a fan and shroud combo commonly used is the style 70 number 91015672. If your state requires the blades to have more of a guard then one of the electric fans such as number 91015449-16 or possibly 910153-16 may better fit your needs along with the appropriate mounting kit. On a mechanical fan the best to offer is shroud number 58066641 or 58066642.
1 answers

Do i need to use a coolant reservoir with this radiator?

Cooter
April 29, 2013

Do i need to use a coolant reservoir with this radiator?

Answers

April 30, 2013
Jason
Radiator 820Z4871 for the 28/29 Model A has an overflow hose and if you run an expansion tank will keep the radiator full for maximum cooling efficiency. If you desire not to run the tank the radiator will simply not be full to the cap and once the engine warms up the expanded coolant will dump out the overflow hose.
1 answers

Does Speedway sell a Radiator cap for this radiator? A real Radiator cap? Not one for the dummy neck on top. And how many PSI cap should I use?

Cooter
April 29, 2013

Does Speedway sell a Radiator cap for this radiator? A real Radiator cap? Not one for the dummy neck on top. And how many PSI cap should I use?

Answers

April 30, 2013
Jason
This Walker radiator for the 1929 model A uses the standard domestic style radiator cap. A 15-18 pound cap is recommended and we offer part #91015604 or 91015608
