Walker C-Ac503-1 Cobra 1939 Chevrolet Radiator w/ A/C Condenser

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Copper
Overall Height:
26.68
Overall Width:
17.13
Color:
Black
Transmission Cooler:
Yes
Tube Style:
Downflow
Sold in Quantity:
Each
Overall Thickness:
5.50
Row Quantity:
3
Finish:
Painted
Inlet Location:
Centered
Inlet Size:
1.50
Outlet Location:
Lower Right
Core Height:
22.00
Core Width:
16.88
Core Thickness:
2.00
Filler Neck Height:
.88
Shroud:
No
Radiator Style:
Single Pass
MFG. Part #:
C-AC503-1
Garage Sale:
No
Notes
1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 1.25" wide mounting flanges on both sides. 5/8"-18 and 3/4"-16 inverted flare fittings for A/C.

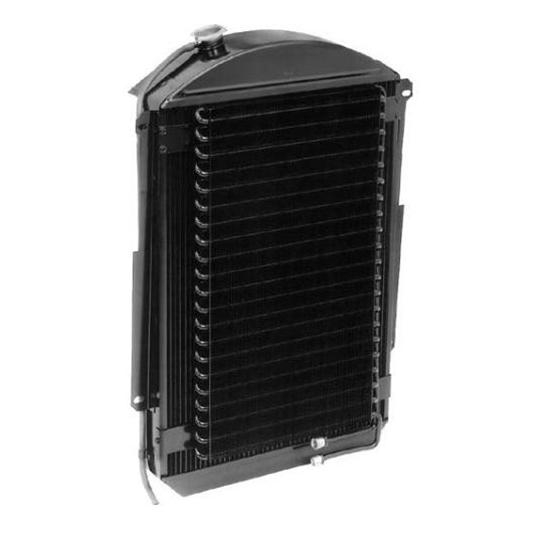

Walker C-Ac503-1 Cobra 1939 Chevrolet Radiator w/ A/C Condenser
Walker C-Ac503-1 Cobra 1939 Chevrolet Radiator w/ A/C Condenser

Click image to enlarge

Speeday Motors Logo
X
Walker C-Ac503-1 Cobra 1939 Chevrolet Radiator w/ A/C Condenser

Details

Reviews

Q & A

What's in the Box

Walker Cobra Series radiators boast a relatively thin, but efficient, high-flow copper core which is ideal for use with mild Small Block engines with stock or low compression ratios. Each radiator is built for a direct fit with heavy gauge steel side brackets and standard mounting holes pre-stamped. Plus, all radiators feature a built-in oil cooler for use with automatic transmissions. They work with original, reproduction, steel or fiberglass grille shells.

  • Copper core w/ 1-piece brass tanks
  • Vertical tubes every 1/4" and 17 fins per inch of height
  • Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
  • Use a 15-18 lb. radiator cap
  • Brass drain cock
  • Simple bolt-in install w/ no modifications to grille or grille shell

Chevy Chassis W/ Chevy Engine Application Chart (GIF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Specs


Warranties

Walker is now extending their warranty on all Cobra Series radiators to a full ten years, affecting all Cobra Series units manufactured after January 1, 2007.

Item Details

With A/C Condenser
Condenser Fittings: #6 and #8 O-ring design
Condenser Refrigerant: R-12 or R-134a
