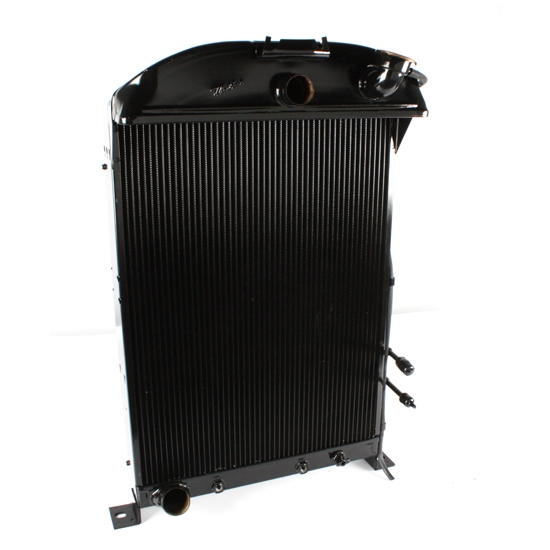

Garage Sale - Cobra Series '33-'34 Ford Radiator - Ford Engine

SAME DAY SHIPPING! Order within the next 12 hours 48 minutes and receive same day shipping

Garage Sale - Cobra Series '33-'34 Ford Radiator - Ford EngineGarage Sale - Cobra Series '33-'34 Ford Radiator - Ford EngineGarage Sale - Cobra Series '33-'34 Ford Radiator - Ford EngineGarage Sale - Cobra Series '33-'34 Ford Radiator - Ford Engine
Garage Sale - Cobra Series '33-'34 Ford Radiator - Ford Engine

Click image to enlarge

Speeday Motors Logo
X
Garage Sale - Cobra Series '33-'34 Ford Radiator - Ford Engine

Details

Reviews

Q & A

What's in the Box

Walker Cobra Series radiators boast a relatively thin, but efficient, high-flow copper core which is ideal for use with mild Small Block engines with stock or low compression ratios. Each radiator is built for a direct fit with heavy gauge steel side brackets and standard mounting holes pre-stamped. Plus, all radiators feature a built-in oil cooler for use with automatic transmissions. They work with original, reproduction, steel or fiberglass grille shells.

  • Copper core w/ 1-piece brass tanks
  • Vertical tubes every 1/4" and 17 fins per inch of height
  • Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
  • Use a 15-18 lb. radiator cap
  • Brass drain cock
  • Simple bolt-in install w/ no modifications to grille or grille shell
  • Use Walker Fan Shroud Style B

Small Block Ford engines can take advantage of the less expensive and more readily available "Chevy" radiators by using a passenger side inlet water pump (such as our 910-15544) and get additional steering box/fuel pump clearance to boot!

Ford Chassis W/ Ford Engine Application Chart (GIF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.



Clearance!!



NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS





Specs


Warranties

Walker is now extending their warranty on all Cobra Series radiators to a full ten years, affecting all Cobra Series units manufactured after January 1, 2007.

Item Details

Clearance!!
With A/C Condenser
Condenser Fittings: #6 and #8 O-ring design
Condenser Refrigerant: R-12 or R-134a
