These upper rear shock brackets mount coil over shocks to your frame or crossmember. Perfect for use with Model A frames. Mount is set up for a 5/8" bolt.
After more than fifty years of use, the original upper shock mounts on the front of your vintage Ford pickup are likely worn out, damaged or missing.These forged steel upper shock mounts are reproductions of those used on 1948-1952 Ford F1 trucks, but are also adaptable to other beam-axle trucks from the 1940's and 1950's.
These trick & classy stainless steel brackets feature hidden mount bolt holes.
This deluxe birdcage features three 5/8" lower arm holes, five 5/8" upper arm mount holes and nylon sleeves and seals. Designed for 5/8" heims but can be converted to 3/4" if spacer kit is used.
This simple birdcage has two upper and lower 5/8" arm mounting holes. For 3" tube axles. Works with shocks.
Weld-on shock mount for bearing end shocks (spherical bearing orheim). Has a1/2" hole. Use short pin in place of shock bolt on this bracket.
These headlight and shock mounts were designed for our T-buckets, but they can be used for a variety of projects. Can be easily bolted onto the outside edge of your frame rail. Mounts have 1/2" holes for Dietz style or other headlightsHas two different 1/2" hole locations for upper shock mountingMeasures 6" from the upper shock mount hole to the top of the frame rail
These stainless steel upper front shock mounts measure 4" from the top bolt hole to the centerline of the stud. Mounting bolts are spaced at 2-5/16" on center.Shocks bushing and stainless steel hardware is included.
Removable bearing mount allows installation of rubber bumpers or shock extensions. Can also be used with coil-over mount kits shown below - slight drilling of upper spring mount required.
Shock mounting stud is approximately 3-5/8" in overall length. The part where the shock rides, is 5/8" O.D. and approximately 1-1/4" wide and the threads at the shock end are 7/16"-20, about 7/8" long. The threads at the bracket end are 1/2"-20, about 1-1/8" long.

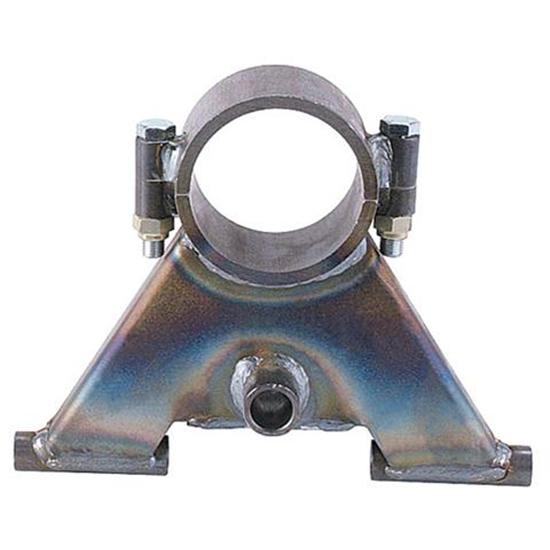

91720156Overall Length9.500" (9 1/2")Overall Width2.500" (2 1/2")Overall Height7.750" (7 3/4")Hole Diameter0.750" (3/4")Tube O.D.3.000"Material TypeSteelFinishNaturalSold in QuantityEachNotesFits both LH and RH side. Center of bracket to trailing arm hole is 4", center to shock hole is 5.5".
If you are serious about rebuilding and revalving your own shocks, this is a must have! This shock viseincludesan aluminum bracket (shown) to mount the vise to your workbench.
