Universal 1964-72 GM Power Steering Hose Kits

SAME DAY SHIPPING! Order within the next 9 hours 35 minutes and receive same day shipping

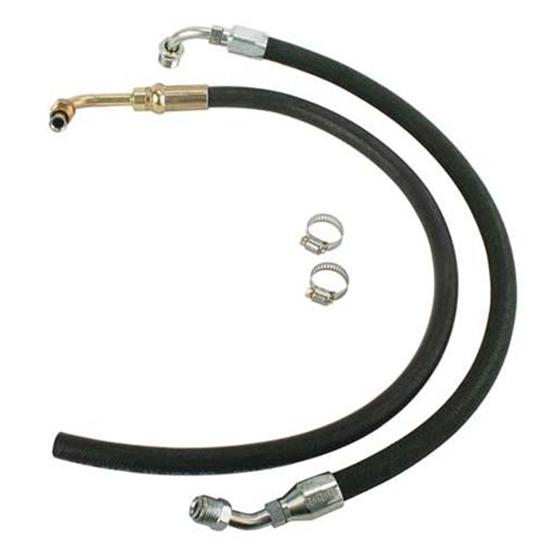

Universal 1964-72 GM Power Steering Hose Kits

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a set.

Details

Reviews

Q & A

What's in the Box

Our universal 1964-1972 GM Car power steering hose assemblies are an inexpensive alternative to the more costly stainless steel braided hose kits. Return hose will normally need to be cut to length.

Specs

  • High Pressure Line:
    • 24" long
    • Inverted flare fittings, one 5/8"-18 and one 11/16"-18
  • Return Hose:
    • 25" long
    • 5/8"-18 inverted flare fitting

Customer Reviews

Rated 5 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
4
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Proy
Verified Purchaser
Jamestown,Ohio

Excellent roduct

September 30, 2011
Installed on my 1922 Model T street rod. Was just what I wanted. Always a good product from Speedway.
Pros:
  • Can Withstand Use
  • Reliable
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Proy
Verified Purchaser
Jamestown,Ohio

Excellent roduct

September 30, 2011
Installed on my 1922 Model T street rod. Was just what I wanted. Always a good product from Speedway.
Pros:
  • Can Withstand Use
  • Reliable
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

pec
vegas

worked well

June 10, 2010
does what is made to do.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

1958 RAT ROD
CHICAGO IL.

WORKED PERFECT ON MY 58 CHEVY TRK!

April 22, 2010
THE HOSES WORKED PERFECT ON MY 58 CHEVY TRUCK P/S CONVERSION
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

Are both ends of the high pressure line a 90 deg angle on the bends? If different which end fits the Pump and which end fits the gear box? Is the rubber hose 24 inches or is it measured from the very ends of the fittings?

March 11, 2012

Are both ends of the high pressure line a 90 deg angle on the bends? If different which end fits the Pump and which end fits the gear box? Is the rubber hose 24 inches or is it measured from the very ends of the fittings?

Answers

March 14, 2012
John
The pump end of the pressure line is at 45 degrees and both lines are 90 degree at the gear box. Pressure line is 24” overall and the return is 25” and can be shortened as needed.
1 answers

what are the fitting sizes on the pressure hose? I have (2) two difference sizes 3/8" unit side 7/16" pump side this what i need.

Hamma
toledo ohio
July 07, 2011

what are the fitting sizes on the pressure hose? I have (2) two difference sizes 3/8" unit side 7/16" pump side this what i need.

Answers

July 12, 2011
John
The high pressure line is 24" long and features inverted flare fittings on both ends. One being 5/8"-18 and the other end being 11/16"-18 The return hose also features an inverted flare 5/8"-18 fitting and is 25" long. Simply cut return line to desired length, slip on pump barb and clamp in place.
1 answers

How is the pressure line custom? can the fittings be rotated for the proper angle?

DK
October 03, 2011

How is the pressure line custom? can the fittings be rotated for the proper angle?

Answers

October 04, 2011
John
These are the base power steering hoses and an economical option to the braided stainless kits we offer. The pressure hose has inverted flare fittings at each end and the hose will rotate 360 degrees before tightening the thread nut. The return line will need to be cut to your desired length and also has an inverted flare fitting on the gear box end.
Page 1 of 1

You may also be interested in:

Gotta Show 131151 1965-79 Braided GM Power Steering Hoses
(Part #6174837)


These stainless steel braided power steering hose kits allow you to fit them to most 1965-1979 GM car & truck boxes with flare fittings.

  • 11/16" inverted flare pressure line fitting
  • 5/8" inverted flare return line fitting
  • 30" line lengths (can be shortened)

Power Steering Line Installation Instructions (PDF)

Item Details

with Flare Fittings
1955-64 Chevy Power Steering Hose Kit
(Part #91032509)


Rubber power steering hose kit for 500, 600, & 605 series power steering boxes. Our power steering hose assemblies are an inexpensive alternative to the more costly stainless steel braided hose kits. Return hose will normally need to be cut to length.

  • 11/16"-18 inverted flare fine (pressure fitting)
  • 5/8"-18 inverted flare fine (return fitting)
Note:  Power Steering Hose Kit for Small Blocks Only
