TCI 600-6570-56 Under-Floor Power Brake / Hydraulic Clutch Assembly

SAME DAY SHIPPING! Order within the next 17 hours 1 minute and receive same day shipping

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Kit
Finish:
Natural
Overall Height:
6.75
Overall Width:
11.125
Overall Length:
25.50
Notes
Clutch master cylinder fitting is 3/8"-24 IFM. Brake master cylinder fittings are 1/2"-20 IFM and 9/16"-18 IFM.

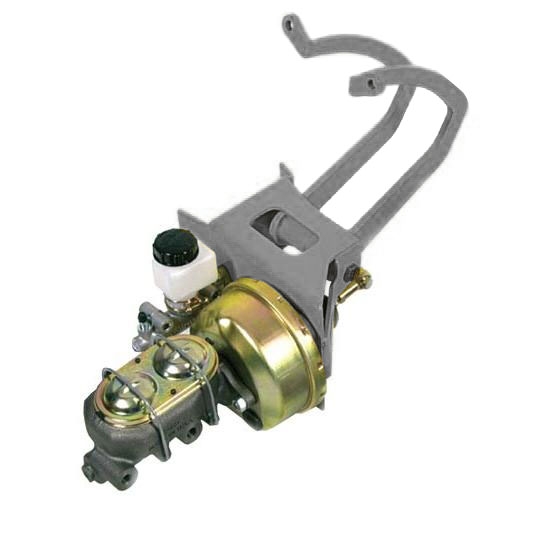

TCI 600-6570-56 Under-Floor Power Brake / Hydraulic Clutch Assembly

Click image to enlarge

Please note the following about this product:

  • This item is sold as a kit.

Details

Reviews (2)

Q & A (11)

What's in the Box

Info

Want to put a manual transmission in your street rod?  These universal pedal assemblies offer a clean, simple way to mount your brake master cylinder and hydraulic clutch master cylinder to the frame, under the floor.  Kits include a bracket and pedals, plus new brake and clutch master cylinders.  Power brake kit has a 7” brake booster and matching master cylinder.

  • Overall length from front of pedal arm to back of master cylinder is 25-1/2"
  • Overall width from frame rail to right side of booster is 11-1/8"
  • Height from top of pedal assembly to bottom of booster is 6-3/4"
  • Top of pedal assembly to center of pedal pad mounting hole is 8-1/2"

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.



Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

FireDome Tim
Verified Reviewer
Lincoln, Nebraska

When Ease, Quality, and Safety Matter this Assembly is Right

April 06, 2016
When I started building a period correct fifties "A" roadster on a deuce frame I originally planned on mounting a stock 38 Ford pedal assembly and modifying it to work with the T-5 behind my early Dodge 241. It wasn't going to be simple without the original X-member so I looked around and found this gem! As soon as I opened the box I knew it was just what my car needed. It comes partially assembled and includes the Wilwood slave cylinder, brake master, and all of the hardware. The bracket included was just right for my pinched deuce rails and located the pedals right were they needed to be. I like that the pedal assembly is removable from the frame mounting bracket if needed. Best of all this piece feels solid and safe. It takes the guesswork out of linkage so you can focus on other areas of the car. Now when I bring my young kids for a ride in a real hot rod I won't have to worry about this part of the car letting me down! TCI built a great part that is worth every penny!
Pros:
  • Great Quality
  • You Get What You Pay For
  • Easy To Mount
  • Nice Welds
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Chad
Verified Purchaser
Verified Reviewer
Michigan

Simplified our project

July 21, 2015
This part made it much easier to mount a brake in clutch system in our street rod..
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

11 questions : 11 answers

1 answers

Is the 7" booster dual or single diaphragm?

CFster
August 04, 2014

Is the 7" booster dual or single diaphragm?

Answers

August 04, 2014
EricM
This kit includes a single diaphragm booster.
1 answers

If also installing an Ididit steering column, is there any space conflict? Using small block Chevy and 4 speed Muncie, and hydraulic throw out bearing. Very concerned about the installation of pedals and steering column and available space.

Jeffand2P
Cheney, Washington
May 09, 2014

If also installing an Ididit steering column, is there any space conflict? Using small block Chevy and 4 speed Muncie, and hydraulic throw out bearing. Very concerned about the installation of pedals and steering column and available space.

Answers

May 12, 2014
EricM
Clutch and brake combo number 91060070 has been used on many hot rod applications and if there is a clearance issue with the column and the pedals just like any other under the floor kit the arms can be heated and bent as needed. This applies to just the brake itself also and a common practice by hot rod enthusiasts.
1 answers

I have the master cylinder and booster from an earilier aplication with an automatic trans. Can I get just pedal assembly without the master cylinder 36 Chevy P/U on a 93 S-10 Frame. 292 inlin 6 with a T-5 trans. Was runing a 700R4 so I have brake master cyl. and booster. Just need pedal assm. Thanks, Bob Carr

Cicero
Bath, NC 27808, USA
March 31, 2014

I have the master cylinder and booster from an earilier aplication with an automatic trans. Can I get just pedal assembly without the master cylinder 36 Chevy P/U on a 93 S-10 Frame. 292 inlin 6 with a T-5 trans. Was runing a 700R4 so I have brake master cyl. and booster. Just need pedal assm. Thanks, Bob Carr

Answers

March 31, 2014
EricM
This is a complete kit that I get from TCI that includes the master cylinders and booster as a complete package. Sorry I can not split it up.
1 answers

Will this assembly fit a 1954 GMC truck with a small block and muncie 4 speed? If so, will the pedal holes in cab need to be modified?

PapaDuck
TN
February 13, 2014

Will this assembly fit a 1954 GMC truck with a small block and muncie 4 speed? If so, will the pedal holes in cab need to be modified?

Answers

February 13, 2014
EricM
With the wider frame under your 54 GMC you may be able to get in the power master and hydraulic clutch pedal assemblies under part number 91060070 which is only 11 1/8” wide from the frame rail to the outside of the booster. Something you would have to verify on your application. End to end including the end of the pedal arm to the rear of the master cylinder is 25 ½”. We also offer a non boosted similar set up under number 91060065 which will save some space if things get too congested under the floor.
1 answers

Other parts needed What other parts are needed to link this up to a brake and clutch system? Also, do you have an instruction manual for this?

SVMJGJ
September 27, 2013

Other parts needed What other parts are needed to link this up to a brake and clutch system? Also, do you have an instruction manual for this?

Answers

September 30, 2013
Jason
On the 91060070 pedal assembly with the clutch master cylinder and the power brake booster and master cylinder for the brakes there are many possible combinations for plumbing. Two examples are using hard line on the clutch master cylinder and the other uses a flex line. If using flex line an adapter number 910318-3/8 on the master and then braided stainless line number 91031846 with straight ends or 91031894 with a 90 degree on the master cylinder end. You will also need the appropriate fitting for your slave cylinder or hydraulic throw out bearing. On the brakes there are two different size outlets and the adapter fittings are number 9103183-1/2 and also in 9/16”. Then your standard 3/16” brake line with the inverted flare nuts such as number 91031820 will screw right in. You will be able to plumb as you would normally plumb your brakes. Being under the floor you would want to install Residual valves close to the master in 2# for disc brakes such as number 91031345 and 10# such as number 91031347. To balance the braking front to rear a proportioning valve such as 91031353 in the line to the rear is suggested.
1 answers

is product number 91060070 bolt on or weld on

frank
corpus christi texas
October 04, 2011

is product number 91060070 bolt on or weld on

Answers

October 05, 2011
Jason
This is designed to weld onto frame
1 answers

do you have any drawings with the dimensions of this product?

fr3ed0m
Falls City, NE 68355, USA
October 01, 2012

do you have any drawings with the dimensions of this product?

Answers

October 02, 2012
Jason
The clutch master cylinder in this kit has a 3/4" bore. The brake master cylinder in this kit has a 1" bore. Overall length from front of pedal arm to back of master cylinder is 25-1/2" Overall width from frame rail to right side of booster is 11-1/8" Height from top of pedal assembly to bottom of booster is 6-3/4" Top of pedal assembly to center of pedal pad mounting hole is 8-1/2". For a drawing you will need to contact TCI Engineering
1 answers

What hydraulic fitting does the clutch master cylinder use? It cam with a fitting but I don't understand how it seals. Should there be an o-ring or crush washer?

Mike
San Luis Obispo, CA
August 22, 2015

What hydraulic fitting does the clutch master cylinder use? It cam with a fitting but I don't understand how it seals. Should there be an o-ring or crush washer?

Answers

August 24, 2015
Andy
Expert
The clutch master cylinder fitting is 3/8"-24 Inverted Flair Male (IFM). Brake master cylinder fittings are 1/2"-20 IFM and 9/16"-18 IFM. These are all inverted flare connections which seal on the flare. No o-rings or crush washers are necessary.
1 answers

considering using this on a '54 f100. Has anyone done it and know if there are any issues making it fit?

Cameron
Fayetteville, NC
September 01, 2015

considering using this on a '54 f100. Has anyone done it and know if there are any issues making it fit?

Answers

September 02, 2015
Andy
Expert
I am sorry, I don't have any knowledge of anyone adapting this kit to a 54 F100. Anytime we are adapting parts to our projects there will be a certain amount of fabricating to get things to work. One big challenge is to estimate if a part will fit into the confines of the vehicle dimensions. Maybe this will help you. The overall length from front of pedal arm to back of master cylinder is 25-1/2" Overall width from frame rail to right side of booster is 11-1/8" Height from top of pedal assembly to bottom of booster is 6-3/4" Top of pedal assembly to center of pedal pad mounting hole is 8-1/2". If necessary you can heat the arms and bend them a small amount to get them into the best location. We also offer a non boosted similar set up under number 91060065 which will save some space if things get too congested under the floor.
1 answers

Will this product work when I install disks brakes to the front & rear?

leon
South-africa
December 13, 2015

Will this product work when I install disks brakes to the front & rear?

Answers

December 14, 2015
Eric
Expert
Yes this brake and clutch pedal assembly will work with disc brakes on both front and rear. Be sure to use an adjustable proportioning valve such as 91031353 as well as two 2 psi residual pressure valves 91031345.
