Ultra Lite Titanium Sprint Right Rear Brake Kit

Specs
Centerline of Holes:
3.25
Material Type:
Titanium
Sold in Quantity:
Kit
Finish:
Ceramic
Hardware Included:
Yes
Rotor Diameter:
10.00
Caliper Pistons:
Four
Rotor Thickness:
.25
Caliper Finish:
Anodized
Rotor Construction:
Solid
Rotor Hat Bolt Pattern:
3 x 5.00"
Garage Sale:
No
Rotor Location:
Right Rear
Rotor Shape:
Round
Drilled:
Yes
Slotted:
No
Notes

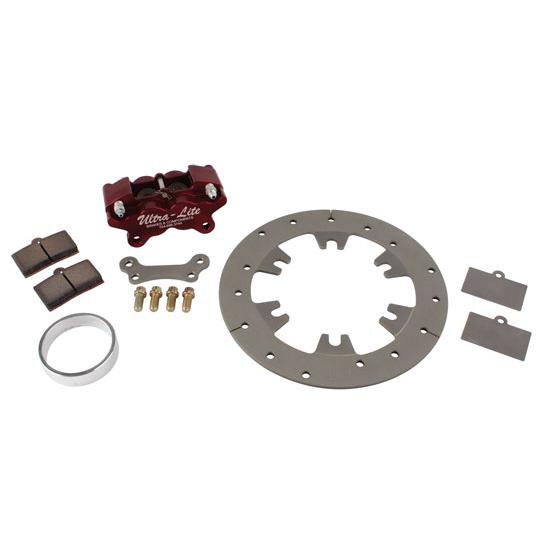

Includes rotor, caliper, caliper bracket, pads, rotor spacer, rotor hub, and bolts.
Ultra Lite Titanium Sprint Right Rear Brake Kit
Ultra Lite Titanium Sprint Right Rear Brake Kit

Click image to enlarge

Speeday Motors Logo
X
Ultra Lite Titanium Sprint Right Rear Brake Kit

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

10" floating titanium rotor and mount, 4 piston caliper series 200. Right rear bracket for Eagle or Maxim double bearing birdcages. 2 pads.

Tech Tip: Take the right rear brake off and put it on the left rear. It works like a tie down shock.

All Ultra Lite brake rotors are ceramic coated and must be beaded in correctly. Only use full metallic brake pads!

You may also be interested in:

Sprint Left Front Brake Kit with Speedway Brake Rotor
                        We put together this left front brake kit for the racer looking for the best quality while keeping cost down. Included is a Wilwood Dynalite caliper with 3.25" mounts, 2 brake pads, a 10.875" aluminum Speedway brake rotor and mounting bolts.

Components also available separately.

Wilwood Sprint Right Rear Brake Kit
                        With this kit you get a Wilwood Dynalite caliper with 3.25" mounts, 2 brake pads, a 10.3", .312" thick aluminum splined Wilwood rotor.

Components also available separately.

Wilwood's 3.00" x 42 splined axle mount rotors are manufactured from the same high strength billets with the same precision as the 3 hole mount front rotors. Full symmetrical machining provides perfect balance, perfect flatness and the truest rotation of any aluminum rotor being built. Wilwood's engineered drill and relief slot pattern combines the highest degree of weight reduction with the highest resistance to thermal distortion in the contact faces. You get smooth engagement and a consistent full pedal from the low kick-back characteristics of this design. A durable black anodized finish prevents corrosion and simplifies the visual inspection of the contact faces.


Wilwood’s Billet Dynalite Single utilizes close tolerance design and manufacturing techniques which results in the most rigid, lightweight and attractive caliper in the evolution of the Dynalite Single Series. Starting at 1.58 pounds, the Billet Dynalite Single is perfect for compact high performance braking as required in Open Wheel, Drag, Modified, Kart, Motorcycle and Off Road applications.


The two piston caliper is rigid, lightweight and holds a .49” thick, 1.1 cubic inch brake pad. Internal fluid passage and multiple bleed fittings permit right or left, front or rear mounting options with either 3.25” or 3.75” lug spacing, and will fit .25” to .38” thick rotors with diameters from 6.00” to 13.00”. High temperature square piston seals control piston retraction while the stainless steel deep cup pistons reduce heat transfer from the pad to the brake fluid. Calipers accept 1/8-27 NPT inlet fitting and come standard with the exclusive re-usable pad retainer clip.

The Billet Dynalite Single comes standard with black anodized coating. The machining versatility of CNC equipment sculpts a part that enhances wheel and suspension detail while maintaining the close tolerance design attributes of the Dynalite Single Series.

The pistons incorporate a stainless steel shield and coated aluminum shell configuration to provide a highly efficient thermal barrier between the brake pads and the caliper body, seals, and fluid. Lower operating temperatures eliminate seal crystallization and localized fluid boiling while providing longer caliper service life through decreased distortion in the caliper body and piston bores.
Sprint Car Left Rear Brake Kit with Titanium Rotor
                        10" floating titanium rotor and mount, 4 piston caliper series 240. Left rear bracket for Eagle or Maxim double bearing birdcages. 2 pads.

Tech Tip: Take the right rear brake off and put it on the left rear. It works like a tie down shock.

All Ultra Lite brake rotors are ceramic coated and must be beaded in correctly. Only use full metallic brake pads!

Ultra Lite Midget Left Front Brake Kit, Scalloped Rotor
                        Left front brake kit has a 10" titanium rotor, left front single piston caliper, left front brake bracket with a 3" mount, 3 rotor mount bolts, and 2 pads.  Rotor available in round or scalloped.
