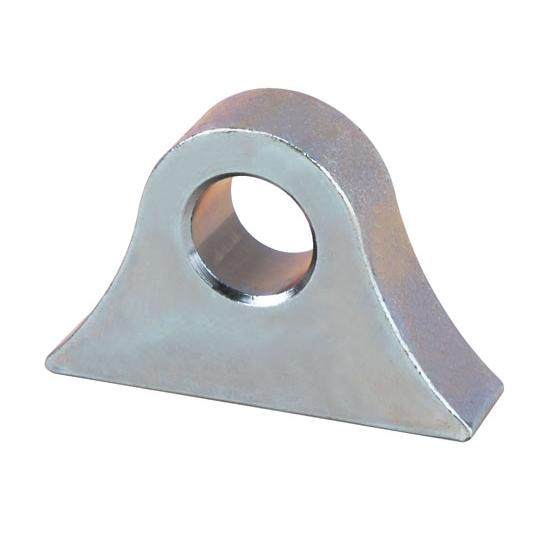

Weld-on 5/8" diameter tapered hole. Required for mounting early Ford 1937-48 tie rod ends. Hole has a 7° taper. Center of shock hole is 7/8" from base. This item will accept tie rod end kit 535-AK35 and also 916-36055-PINTO tie rod adapter stud.
These tie rod/drag link kits are pre-cut and tapped lengths of 7/8" O.D. tubing available in multiple lengths. Each kit comes complete with 5/8" heim joint rod ends and jam nuts. Tubing will be tapped with right-hand & left-hand threads for adjustability. Select your length based on the center-to-center of the heim rod ends, which will also be the eye-to-eye distance between the steering arms (the acutal tube will be 3" shorter than length selected). At selected length, the link will be adjustable from 1/4" shorter to 1/2" longer. Normally used with '49-'54 Chevy style spindles ...
Round shock eye for use with Monroe tie rod conversion kit. Eye has a 7° inner taper.
NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS
These tie rod or drag link kits are pre-cut and tapped lengths of 7⁄8" O.D. tubing available multiple lengths. Kits come complete with 11/16" traditional 7° tie rod ends and jam nuts. Tubing will be tapped with right-hand & left-hand threads for adjustability.Specify desired length in comments section of shopping cart.No returns/exchange on custom length links.Select your length based on the center-to-center of the tie rod ends which will also be the eye-to-eye distance between the steering arms(the acutal tube will be 3" shorter than length selected). At selected length ...
These tie rod/drag link kits are pre-cut and tapped lengths of chrome plated 7/8" O.D. tubing available inmultiplelengths.Each kit comes complete with 5/8" heim joint rod ends and jam nuts. Tubing will be tapped with right-hand & left-hand threads for adjustability.Select your length based on the center-to-center of the heim rod ends which will also be the eye-to-eye distance between the steering arms(the acutal tube will be 3" shorter than length selected). At selected length the link will be adjustable from 1/4" shorter to 1/2" longer.Normally used with '49-'54 Chevy ...
These tie rod/drag link kits are pre-cut and tapped lengths of 7/8" O.D. tubing available inmultiplelengths.Each kit comes complete with 5/8" heim joint rod ends and jam nuts. Tubing will be tapped with right-hand & left-hand threads for adjustability.Select your length based on the center-to-center of the heim rod ends which will also be the eye-to-eye distance between the steering arms(the acutal tube will be 3" shorter than length selected). At selected length the link will be adjustable from 1/4" shorter to 1/2" longer.Normally used with '49-'54 Chevy stylespindles andflat ...
Weld-on 5/8" diameter tapered hole.Required for mounting early Ford 1937-48 tie rod ends.Hole hasa 7° taper.Center of shock hole is 7/8" from base.This item will accept tie rod end kit 535-AK35 and also 916-36055-PINTO tie rod adapter stud.
Cross steering means the drag link reaches across the car and attaches to the passenger-side steering arm. If that steering arm has only one hole, you'll need to build the tie rod with this tie rod end on the RH side. Then the drag link attaches to the eyelet (which is tapered 1/2 way from both sides.) Not for use with flat steering arms Use only with Ford type steering arms with a tapered hole Not normally used with Chevy spindles Note: When using the cross steering end, the tube ...
These tie rod/drag link kits are pre-cut and tapped lengths of 7/8" O.D. tubing available inmultiplelengths.Each kit comes complete with 5/8" heim joint rod ends and jam nuts. Tubing will be tapped with right-hand & left-hand threads for adjustability.Normally used with '49-'54 Chevy stylespindles andflat steel steering arms. Can be used with stock type Ford arms if drilled out to 5/8".Precut and tapped lenghts of 7/8" O.D. tubingAvailable in these assembled lengths: 24" 25.5" 28.5" 30" 32" 41.5" 42.5" 43.5" 44" 45" 45.5" 46" 47" 47.5" 48" 52.5" 54"Tapped right-hand ...
These tie rod or drag link kits are pre-cut and tapped lengths of 7⁄8" O.D. tubing available multiple lengths. Kits come complete with 11/16" traditional 7° tie rod ends and jam nuts. Tubing will be tapped with right-hand & left-hand threads for adjustability.Select your length based on the center-to-center of the tie rod ends which will also be the eye-to-eye distance between the steering arms(the acutal tube will be 3" shorter than length selected). At selected length the link will be adjustable from 1/2" shorter to 3/4" longer.Measuring Tie Rod ...
These tie rod or drag link kits are pre-cut and tapped lengths of brushed stainless 7⁄8" O.D. tubing available multiple lengths. Kits come complete with 11/16" traditional 7° tie rod ends and jam nuts.Tubing will be tapped with right-hand & left-hand threads for adjustability.Select your length based on the center-to-center of the tie rod ends which will also be the eye-to-eye distance between the steering arms(the acutal tube will be 3" shorter than length selected). At selected length the link will be adjustable from 1/2" shorter to 3/4" longer.Measuring Tie ...
Cross steering means the drag link reaches across the car and attaches to the passenger-side steering arm. If that steering arm has only one hole you'll need to build the tie rod with this tie rod end on the RH side. Then the drag link attaches to the eyelet (which is tapered 1/2 way from both sides.)Not for use with flat steering armsUse only with Ford type steering arms with a tapered holeNot normally used with Chevy spindles Note: When using the cross steering end the tube length will need ...
Cross steering means the drag link reaches across the car and attaches to the passenger-side steering arm. If that steering arm has only one hole you'll need to build the tie rod with this tie rod end on the RH side. Then the drag link attaches to the eyelet (which is tapered 1/2 way from both sides.) Not for use with flat steering armsUse only with Ford type steering arms with a tapered holeNot normally used with Chevy spindles Note: When using the cross steering end the tube length will ...
These tie rod or drag link kits are pre-cut and tapped lengths of 7⁄8" O.D. tubing available multiple lengths. Kits come complete with 11/16" traditional 7° tie rod ends and jam nuts. Tubing will be tapped with right-hand & left-hand threads for adjustability. Specify desired length in comments section of shopping cart. No returns/exchange on custom length links. Select your length based on the center-to-center of the tie rod ends, which will also be the eye-to-eye distance between the steering arms (the acutal tube will be 3" shorter than length selected). At selected ...
These tie rod or drag link kits are pre-cut and tapped lengths of 7⁄8" O.D. tubing available multiple lengths. Kits come complete with 11/16" traditional 7° tie rod ends and jam nuts. Tubing will be tapped with right-hand & left-hand threads for adjustability. Select your length based on the center-to-center of the tie rod ends, which will also be the eye-to-eye distance between the steering arms (the acutal tube will be 3" shorter than length selected). At selected length, the link will be adjustable from 1/2" shorter to 3/4" longer. Measuring Tie ...
These tie rod or drag link kits are pre-cut and tapped lengths of brushed stainless 7⁄8" O.D. tubing available multiple lengths. Kits come complete with 11/16" traditional 7° tie rod ends and jam nuts.Tubing will be tapped with right-hand & left-hand threads for adjustability. Select your length based on the center-to-center of the tie rod ends, which will also be the eye-to-eye distance between the steering arms (the acutal tube will be 3" shorter than length selected). At selected length, the link will be adjustable from 1/2" shorter to 3/4" longer. Measuring ...
For 1949-54 Chevy passenger car spindles. The arms attach with bolts through the lower 2 backing plate mounting holes (3-1/8" center-to-center) on spindle. The distance between the mounting holes to the center of the tie rod hole is 6 inches. Note: Chevy arms use a 46" eye to eye tie rod link when used with a 48" wide axle / Chevy spindle. Steering Arm Ends Guide (GIF) Parallel Steering Set-Up Guide (GIF)
If you are building a hot rod just a little bit different than the next guy, you will probably need a special length tie rod or drag link sleeve. We stock many common and uncommon lengths along with custom, made-to-order lengths. Measurements are in assembled eye-to-eye lengths. To order: Use guide below to measure your finished length. The part number and length you order will be 3" longer than the sleeve you receive. (I.E., if you order a 48" part number, you will receive a 45" long sleeve.) This is ...
Fits 1937-48 Ford style spindles. The arms attach with bolts through the lower 2 backing-plate-mounting holes on spindle. Ford arms use a 48" eye to eye tie rod link when used with a 48" wide axle / Ford spindle. Steering Arm Ends Guide (GIF) Parallel Steering Set-Up Guide (GIF)
